Goldtouch Adjustable Keyboard - Detailed Specification Sheet

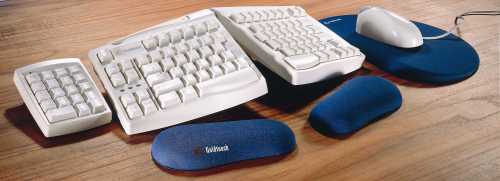

Goldtouch Keyboard Picture

NEW! Click here for a the results of a keyforce comparison study conducted by Keytronic's Reliability Laboratory.

The Goldtouch Adjustable Keyboard has been developed using ergonomic principles to improve the interface between you and your computer.

The Goldtouch Adjustable Keyboard allows you to adjust the two alphanumeric sections both horizontally and vertically to suit your individual body requirements. This helps you assume a more natural posture that is conducive to improving comfort and productivity while using your computer.

F E A T U R E S I N C L U D E:

Adjustment for wrist splay in the horizontal plan: 0°-30°, continuously variable
Adjustment for wrist pronation - vertical tenting 0°-30°, continually vertical
Easily adjusted, locking ball and socket latch mechanism
Small, space saving foot-print to bring your mouse inside your ergonomic 'comfort zone'
Editing key layout for left-right work distribution
Embedded, in-built numeric keypad (activated by the Function Lock)
Large space bars for easy thumb use
Full size, full travel, tactile feedback keys with soft end-stop
Low noise key actuation
Standard alphanumeric key layout (QWERTY)

TECHNICAL SPECIFICATIONS

Close this window to return to our product catalog.

Operating Systems MS Windows 3.X, MS Windows 9X, MS Windows NT

Interface IBM PS/2 Compatable

Connectivity PS/2

Keys 88 keys with embedded numeric keypad

Keyswitch Life 10 million

Key Force Pressure 54 Grams + or - 20 Grams

Key Travel 4 mm+ or -.2 mm

Split Characteristics Clutch handle mechanism

Regulatory Approvals FCC, ULC, SCA, GSTUV, CE, VCCI

Keyboard Dimensions

Length: 420 mm (+/- 3 mm) Width: 172 mm (+/- 3 mm)

Height: 30 mm + 0.0 mm / -1 mm (row c) Weight: 1.5 KG (3.3 lbs)

Key Profile: Stepped sloped keyset with dished keys

DESIGNED TO EXCEED ISO 9241 standards

If you opened this page from our online catalog, close this window to return to it. If you opened this page from outside the ErgoCanada.com web site, click here to enter our online catalog.

Please bookmark this site and check back often, as we are adding new products regularly.

ErgoCanada.com, a division of Micwil Computer Consulting
P.O. Box 9022 Saskatoon, SK, Canada S7K 7E7
Phone: (306) 222-3203 Fax: (306) 382-4995
Toll-Free: (866) 335-3746 (ERGO)
Email: sales@ergocanada.com

Check out our other portals at the Micwil Group of Companies web site.

Operating Systems	MS Windows 3.X, MS Windows 9X, MS Windows NT
Interface	IBM PS/2 Compatable
Connectivity	PS/2
Keys	88 keys with embedded numeric keypad
Keyswitch Life	10 million
Key Force Pressure	54 Grams + or - 20 Grams
Key Travel	4 mm+ or -.2 mm
Split Characteristics	Clutch handle mechanism
Regulatory Approvals	FCC, ULC, SCA, GSTUV, CE, VCCI
Keyboard Dimensions
Length: 420 mm (+/- 3 mm)	Width: 172 mm (+/- 3 mm)
Height: 30 mm + 0.0 mm / -1 mm (row c)	Weight: 1.5 KG (3.3 lbs)
Key Profile: Stepped sloped keyset with dished keys
DESIGNED TO EXCEED ISO 9241 standards
