Kinesis Logo ErgoCanada.com LogoKinesis Freestyle Separated Keyboard (KB700PB), Freestyle VIP Accessory (AC720-BLK) and Freestyle Incline Accessory (AC710-BLK) - Detailed Specifications Page

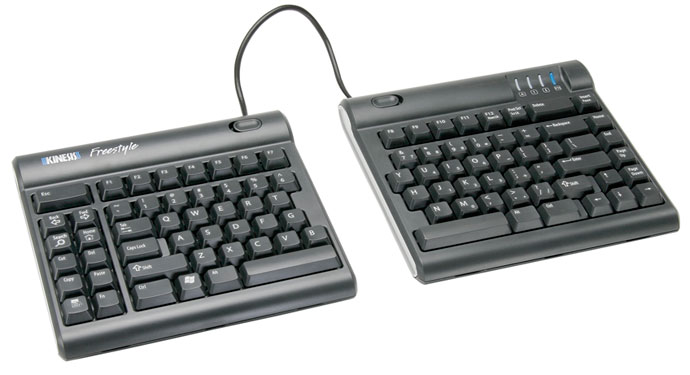

Freestyle Solo Separated Keyboard

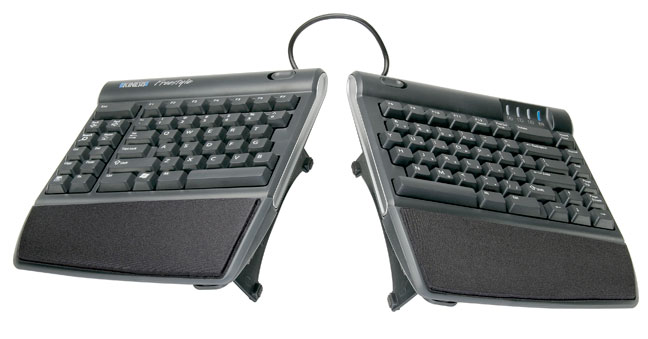

Freestyle Solo Separated Keyboard
with VIP Accessory

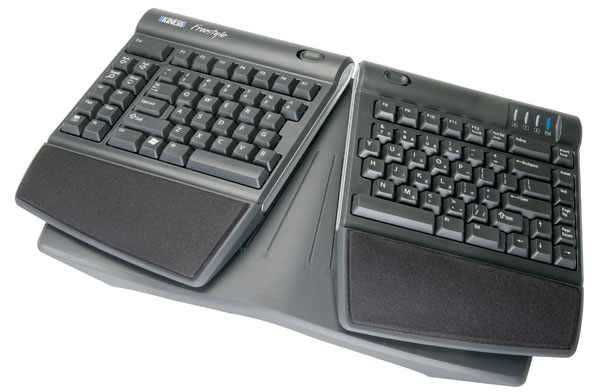

Freestyle Solo Adjustable Keyboard
with Incline Accessory

Separate thumb keypads

Animation of the Freestyle Solo

Separate thumb keypads

Animation of the Freestyle VIP

Separate thumb keypads

Animation of the Freestyle Incline

The Freestyle separated keyboard is the most versatile keyboard on the market today and represents a breakthrough in ergonomic design. The Freestyle adapts to the specific needs of every user with infinitely adjustable separation and splay and a design that will permit as much reduction in pronation as is required for most users. The layout incorporates unique features for performance and comfort, with almost no adaptation time. Featuring an undeniably modern contemporary look, this keyboard provides a stylish accent to any workstation.

The Freestyle Solo is intuitive to configure and use with simple, sturdy adjustment mechanisms (no more need for awkward or unwieldy adjustment levers, wheels or clamps) . Several interchangeable modular accessories provide features never before available from a single keyboard design.

Two optional accessory packages, the Freestyle Incline and Freestyle VIP can be purchased to provide additional capabilities. These three configurations allow the user to choose features that offer complete separation and/or adjustable front splay, adjustable or fixed tenting, plus integrated and removable, padded palm supports.

Features Found in All Configurations:

Configuration Breakdown:

Freestyle Solo - Perfect for individuals requiring greater separation than what is provided by other ergonomic keyboards.

Freestyle with VIP (V-Lifter and Integrated Palm Supports) Accessory

The Freestyle VIP includes all of the features of the Solo and add the following features:

Freestyle with Incline Accessory

The Freestyle Incline is the ideal replacement for fixed split and tented keyboards such as the Microsoft Natural. The Incline accessory offers:



November 30, 2006, Las Vegas, NV...


Freestyle Keyboard voted by NECE attendees as one of the most likely products to increase productivity and profitability, while improving workplace health and safety.

Summary of How the Embedded Numeric Keypad Functions

Legending: The Navigation Keys are not legended but are supported as described below. The numeric keypad legends are on the top surface of the keycap, at the bottom right corner of the keycap (see picture at top of page).

To Activate the Numeric Keypad:

Press and release the Fn (Function) key. The blue light at the top right hand corner of the keyboard labeled Fn will turn on.

To Deactivate the Numeric Keypad: Press and release the Fn (Function) key. The blue light at the top right hand corner of the keyboard labeled Fn will turn off.
With NumLock On: If the Fn (Function) key is lit at the same time as NumLock is active, the numeric keypad will generate numbers.
With NumLock Off: If the Fn (Function) key is lit with NumLock off, the numeric keypad will perform its normal keyboarding functions.
WHAT THIS MEANS
To Get Numbers: Toggle Access (Press and Release Fn When Num Lock is on)
To Get Navigation: Toggle Access (Press and Release Fn When Num Lock is off)

Optional Discrete Numeric Keypad

The Low Force Tactile Numeric Keypad connects via the USB port on your computer. An embedded 2 port USB hub allows you to plug your USB devices (including the Maxim keyboard or your USB pointing device) into the keypad, and then you have only 1 USB cable which needs to plug into your computer for all your input devices. A great productivity enhancement if you work with numbers!

Check out our Keypads section of the product catalog for more information on Numeric Keypads.

Compatibility

  • KB700PB-US - PC, Macintosh (not compatible with hot keys)*, Sun and Linux compatible
  • KB700PB-US-20 - PC, Macintosh (not compatible with hot keys)*, Sun and Linux compatible
  • KB700PB-CF - PC, Macintosh (not compatible with hot keys)*, Sun and Linux compatible

* When used with Macintosh systems, F12 key will eject CD.

Keyboard Layout Views

    KB700PB-US - view of US English QWERTY key layout (PC)

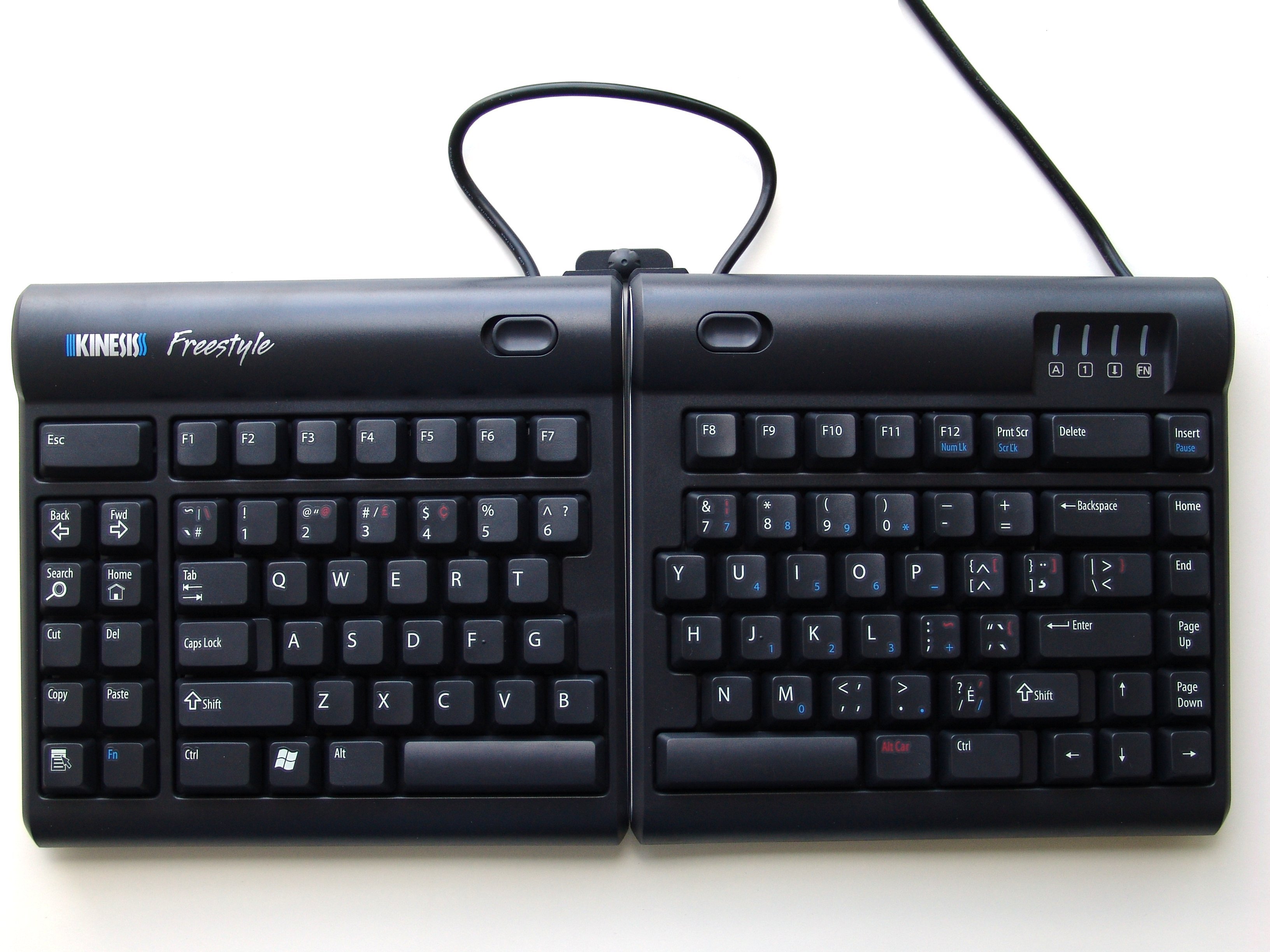

    KB700PB-FC - view of French Canadian QWERTY key layout (PC)

Technical Specifications

Available Models

  Width Height Depth Weight
Solo 15.375" (no separation) 1.1875" 7.25" 2 lbs (.907 kg)
VIP 20.625" (max separation) 2.5" at 10°, 3.0625" at 15° 10.0" with palm supports 2 lbs 5 oz
Incline 15.375" (no separation) 2.875" 10.0625" 2 lbs 15 oz
20" Model 35.375" (max separation) 1.1875" 7.25" 2 lbs

Keyswitches: High quality quiet tactile membrane, rated at 10 million keystrokes
Interface: USB only

KB700PB-US - Freestyle Solo Keyboard (US English Layout) with Pivot Tether

KB700PB-FC - Freestyle Solo Keyboard (French Canadian Layout) with Pivot Tether

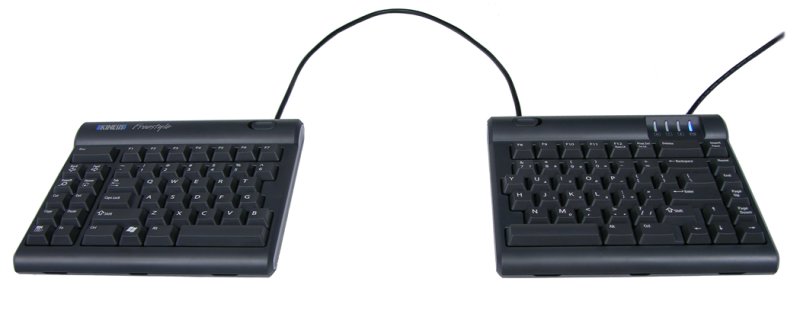

KB700PB-US-20 - Freestyle Solo Keyboard, 20" cable

KB700PB-FC-20 - Freestyle Solo Keyboard (French Canadian Layout) with Pivot Tether, 20" cable

ACCESSORIES

AC720-BLK - Freestyle VIP Accessory

AC710-BLK - Freestyle Incline Accessory



ACCESSORIES INCLUDED

  • Quick Start Guide
  • Pivot Tether

WARRANTY:

  • Two Year Limited Warranty
