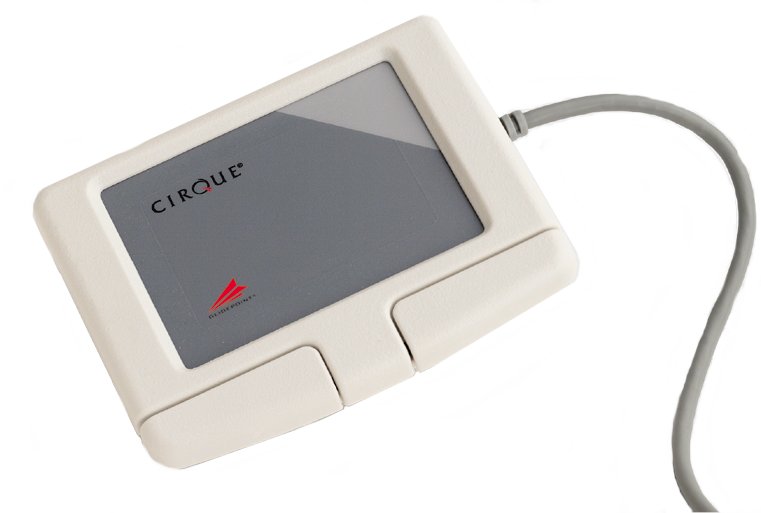

The Easy Cat and Easy Cat USB Touchpad by Cirque - Detailed Specification Sheet

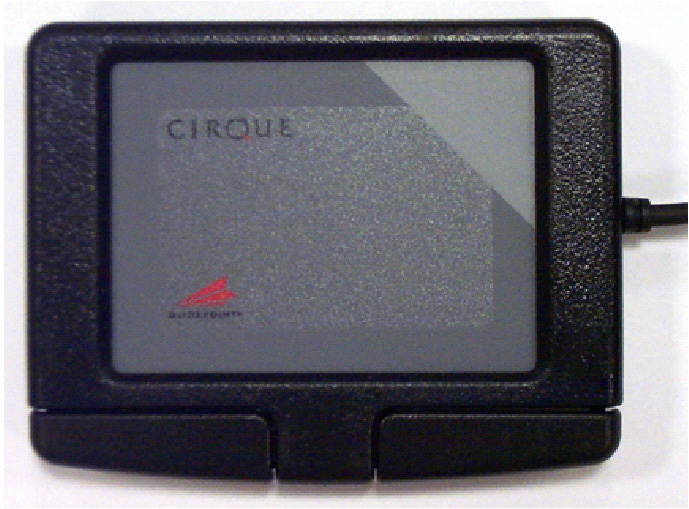

CLICK HERE FOR A PICTURE OF THE BLACK EASY CAT GP160-0321

Easier than a mouse. More durable than a mouse.  Needs less space than a mouse.  Works with both PC (Serial, PS/2 & USB) and Macintosh (USB) computers.

Why push a mouse around when you can just point? Cirque's patented GlidePoint technology makes it easier than to have effective, efficient cursor control. Simply glide your finger over Cirque Easy Cat's surface and gently tap on the pad or click on the buttons to perform all mouse functions.

Very little wrist motion and no touch pressure is required, making Easy Cat and Easy Cat USB one of the most comfortable and affordable input devices on the market. Plus, its solid-state design keeps Cirque Easy Cat working without breakdowns -- there are no moving parts to clean! Want to eliminate pronation when mousing? Use the touchpad in a vertical orientation without impairing its functionality.

Both 'left' and 'right' click functions can be activated by tapping on designated areas of the pad. It's easy to detect the 'right' click area of the pad thanks to the subtle change of pad texture and colour. Double-tap and hold your finger on the pad, or hold the left button as your finger glides, to grab, drag, and highlight any item on-screen. Activate vertical scroll by simply gliding a finger along the right edge of the touchpad. The GlideExtend edge extending feature makes it easy to keep moving the cursor after you've run into the edge of the touchpad.

GlidePoint Technology

Cirque's capacitive touch technology provides complete navigation control of any graphical interface, packed in a space-saving, low-friction, durable touchpad. The sophisticated sensor system responds to the most precise finger movements.

Key Features:

Serial Model with PS/2 Adapter

• Left Tap Zone -- Left or right 'click' simply by tapping your finger in the main area or upper right corner of the pad. The right "click" area is marked on the pad surface with a change of color and texture. The two buttons can also be used to "click'.
• Right tap zone (Driver Required for use on Macintosh) -- Secondary mouse clicks provide quick access to submenus. These can be activated by tapping a finger in the pad's upper right corner.
• Vertical / Wheel-mouse scroll (Driver Required for use on Macintosh) -- Activate vertical scrolling by simply gliding a finger along the right touchpad edge. No more pausing to click-click-click the scroll bars.
• Drag, draw, highlight -- Just double-tap and hold your finger on the pad, or hold the left 'click' button as your finger glides.
• GlideExtend -- Hold your place on-screen when you reach the pad's edge. The area is marked on the pad surface with a change of texture -- no more running off the mouse pad!
• Durable - Solid-state technology withstands spills and abuse
• Portable and Versatile - Small, portable and light weight device with a thin and comfortable design that can be adjusted to your needs - use it at any angle or even velcro it a vertical surface to eliminate pronation when mousing or use it on the face of your monitor or the dashboard of your car!

System Requirements:

Serial - PS/2 Model

PC System and Hardware Requirements
Available Serial or PS/2 port
One of these operating systems:

• Windows 95
• Windows NT 4.0
• Windows 98
• Windows 98 ME (Plug-n-play native Windows mouse driver support only - see NOTE)
• Windows 2000
• Windows XP

Glidepoint Driver Requirements

• Windows 95
• Windows NT 4.0
• Windows 98
• Windows 2000
• Windows XP


NOTE:

GlidePoint drivers should NOT be downloaded and installed on Windows ME systems.

• This product will function as a standard PS/2 compliant pointing device with native Windows support on this operating system.
• Serial Port installation is not recommended on Windows ME.
• If GlidePoint drivers are installed on Windows ME systems, it will cause system issues.


USB Model

PC System Hardware and Software Requirements
Available USB port
One of these operating systems:

Hardware Requirements:

• Windows 98
• Windows 2000
• Windows ME - (Plug-N-Play native Windows mouse driver support only - see NOTE)
• Windows XP

GlidePoint Driver Software Requirements:

• Windows 98
• Windows 2000
• Windows XP

NOTE:

GlidePoint drivers should NOT be downloaded and installed on Windows ME systems.

• This product will function as a standard HID compliant (USB) pointing device with native Windows support on this operating system.
• If GlidePoint drivers are installed on Windows ME systems it will cause system issues.

Macintosh System Requirements
Available USB port
One of these operating systems:

Mac OS 8.5 - OS 9.x:
This product functions as a standard USB compliant two button mouse.

• GlideExtend - Continued movement when the edge of the touchpad is reached by lifting and repositioning the finger to continue motion.
• "Control-click" functionality with the right button and the corner tap zone.

Mac OS X:
OS X provides the following features without third party driver installation.

• Wheel mouse scrolling (vertical scroll)
• GlideExtend - Continued movement when the edge of the touchpad is reached by lifting and repositioning the finger to continue motion.
• "Control-click" functionality with the lower right button and the corner tap zone.

Cirque Corporation does not provide drivers for the Macintosh platform.

USBOverdrive for Macintosh Shareware Application information
Users that wish to customize their input devices on the Macintosh platform may find the USBOverdrive utility, created by Alessandro Levi Montalcini of interest. This shareware utility has been reported to augment the capabilities of the touchpad and allow for more customization of the touchpad features.

Cirque Corporation has tested our USB GlidePoint products with the USBOverdrive utility on a limited basis. The USBOverdrive utility should enable vertical scrolling capability, and augmenting overall control of pointer motion.

IMPORTANT NOTE:

Cirque Corporation and ErgoCanada.com takes no responsibility for installation, support, or compatibility of third party applications. Please do not submit technical support request to Cirque Corporation or ErgoCanada.com regarding third party applications or utilities.
