ErgoRest
ForeArm Support Rest - Detailed Specification Sheet

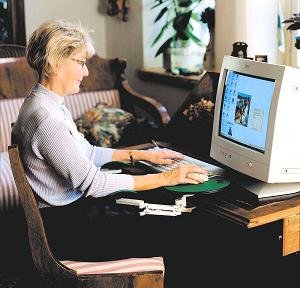

ErgoRest forearm supports offer smooth
movement and optional accessories such as a mouse tray with mouse pad make this
a good device to assist individuals who have problems supporting their arms
while using the computer.
FEATURES:
- ERGOREST forearm support is lightweight and moves effortlessly.
- The support is made of aluminium alloy and polyamid, the pad is upholstered with genuine leather.
- NOTE: To add Mouse Tray and Pad to arm, include accessory model #3500 (has been referred to
in the past by replacing the beginning of the model number (330) with (350)
- The forearm support is attached to the work surface by adjustable clamps: Standard Clamp size
will accomodate surfaces up to 1 5/8" thick, Large Clamp (Model 3174) will accomodate
surfaces up to 2 1/5" thick. If you need a Large Clamp with Post (for the Mouse Tray), this is Model 3177.
- Height adjustment screw to adjust from level (with work surface) to 75 mm / 2.95"
above work surface.
- The maximum operating span for the long arm (recommended) models is 235 mm / 9.5 inches,
maximum load is 12 kg / 26 lb.
- Warranty: One Year
- Extended Height ErgoRest Models (331 Series) come with two extension poles;
one 4" and one 8". Use one or both pole sections based on your needs.
Arm pads may be raised as far as 12 inches from surface.
Product Code |
Overall Length |
UPPER ARM (Lower Arm is always 6") |
ARM PAD |
| | Standard 115 mm or 4 1/2" long | Long 150 mm or 5 7/8" long | Standard 130 mm or 5 1/8" long | Long 200 mm or 7 7/8" long |
330 000 | 12 3/4" | | | | |
330 011 | 14 1/8" | | | | |
330 013 | 14 1/4" | | | | |
330 016 | 15 5/8" | | | | |
331 000 | 12 3/4" | | | | |
331 011 | 14 1/8" | | | | |
331 013 | 14 1/4" | | | | |
331 016 | 15 5/8" | | | | |
