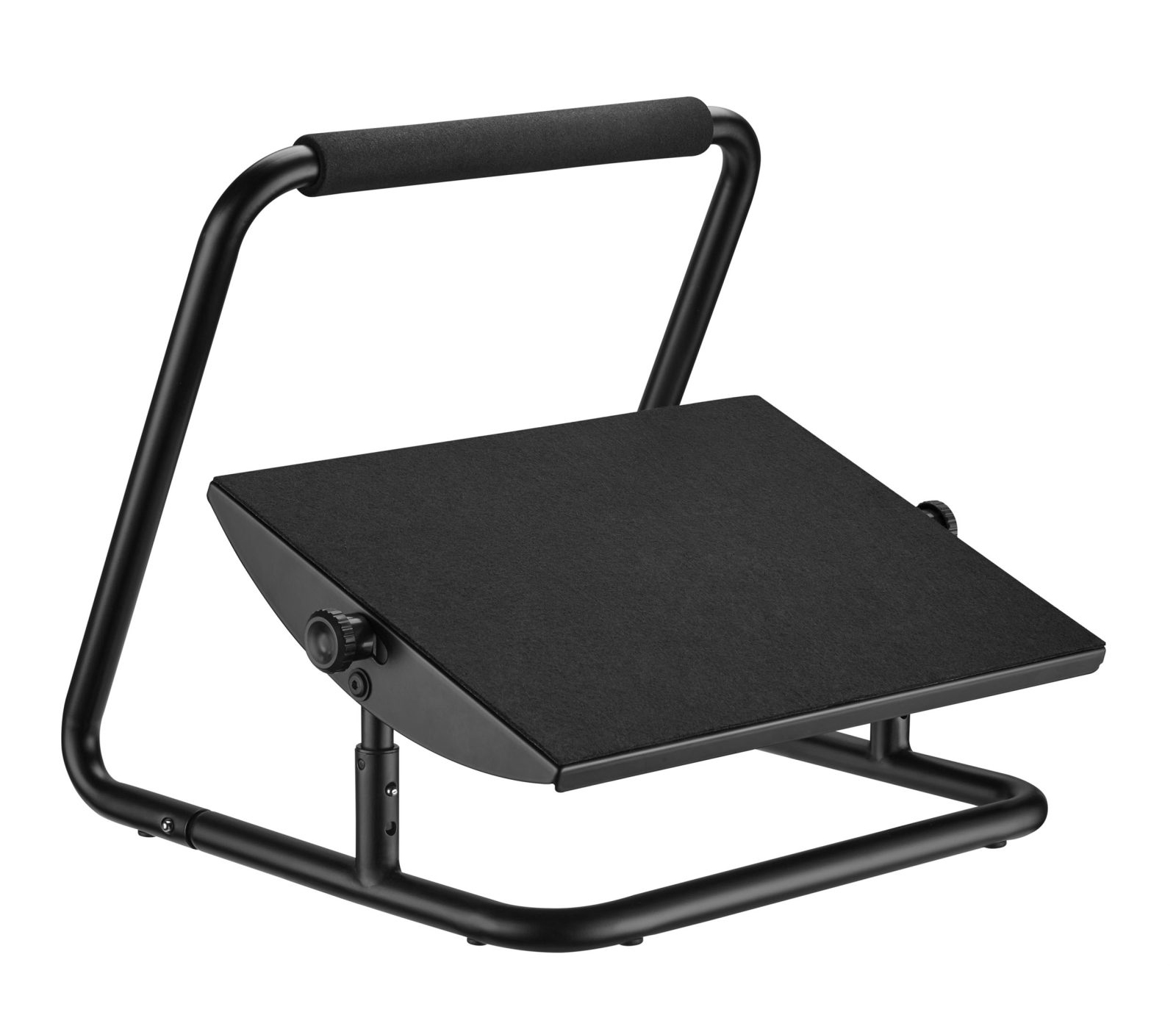

SUN-FLEX Relax Footrest

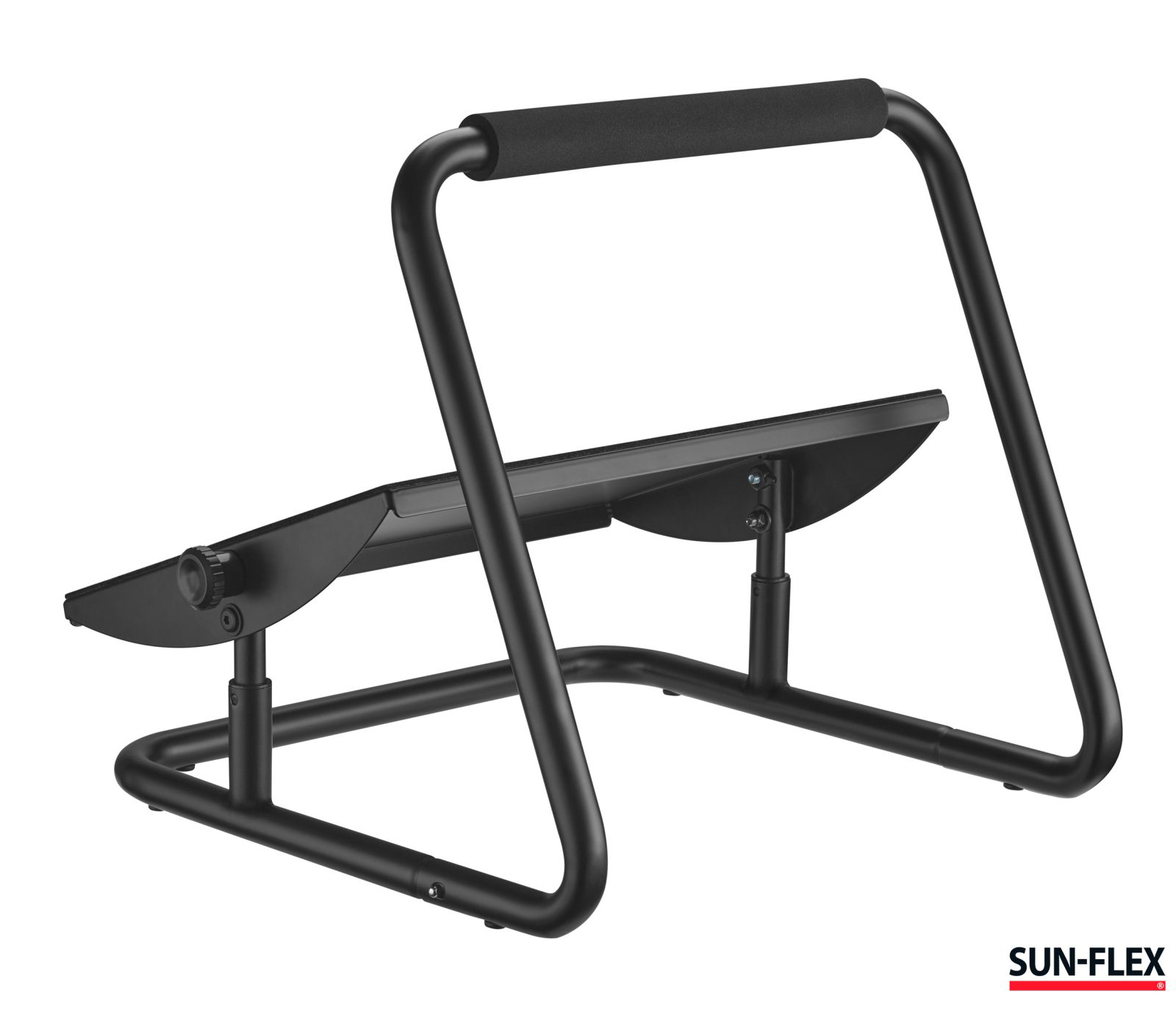

The SUN-FLEX Relax Footrest is a high quality and sturdy solution for those seeking a footrest with additional ergonomic benefits. A tubular powder-coated metal frame ensures durability and stability for the heavy duty steel foot platform. For enhanced comfort (especially when not using footwear) this platform is covered with a thick layer of textile that will retain warmth. The platform can be set to either 5.5" or 6.3" and is also tilt adjustable over a ±20° range. Tilt resistance can be adjusted to make the platform resistive to movement or moderately free-floating, providing support or movement as desired.

The raised padded bar at the rear of the SUN-FLEX Relax Footrest sits at a height of 14.9". Covered with a foam cushion the bar is ideal for massaging the muscles in the calves to improve circulation or for stretching the Achilles Tendons and calf muscles. The tilting movement and stretching bar can reduce the potential for leg cramps and thrombosis arising from extended periods of static sitting.

The dimensions of the SUN-FLEX Relax make it suitable for restricted spaces and for those with small to medium-sized feet. Those with large feet and sufficient space may wish to consider the SUN-FLEX Footrest which offers a wide range of height options and a platform better suited to larger feet.

• Textile Surface for Comfort: The footplate is covered with a durable textile well-suited to use without footwear as it will be warmer to the feet than the plastic, rubber, or metal surfaces that most footrests have.

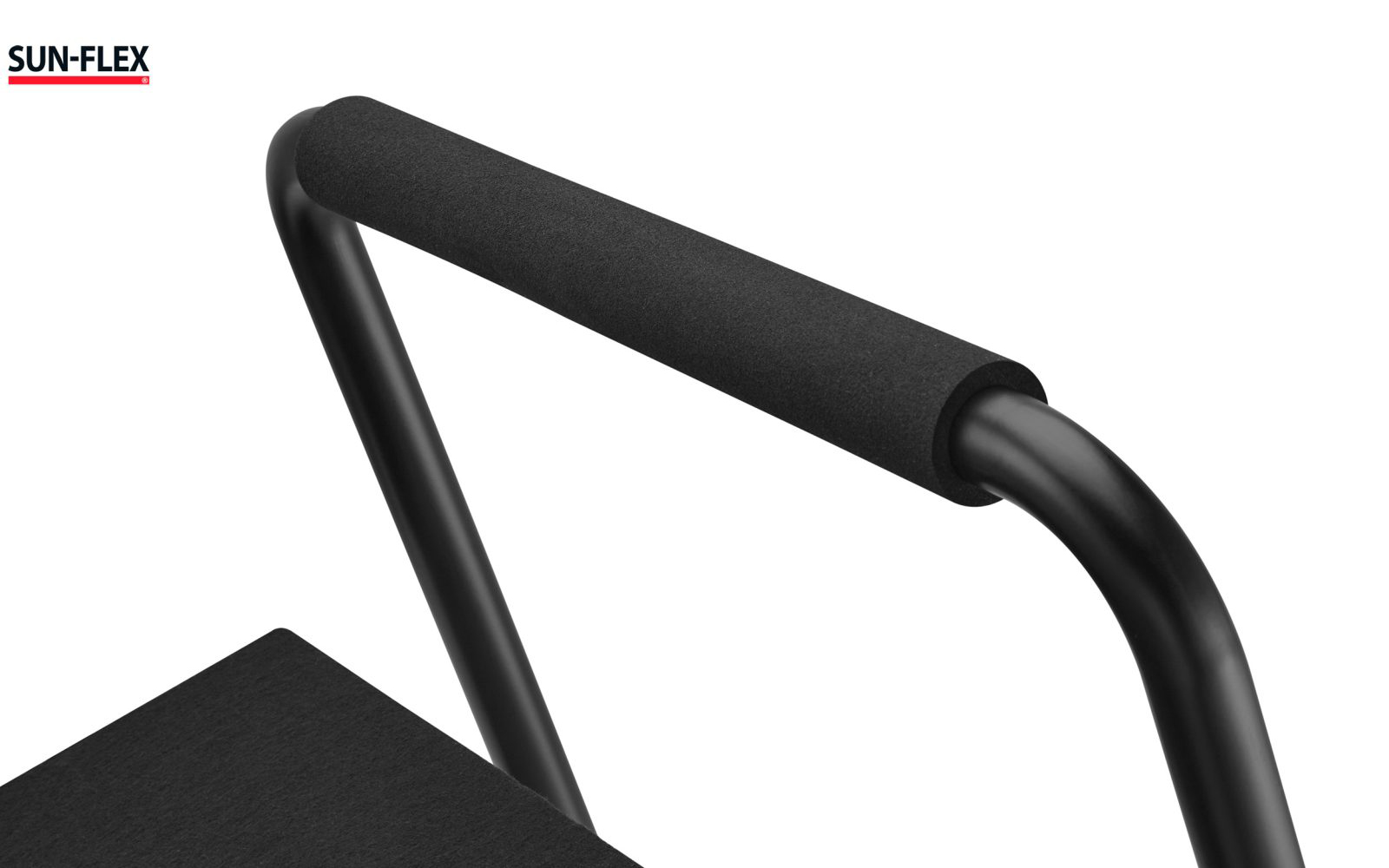

• Calf Stretching Bar: The upper frame is covered by a cushioning foam cylinder and positioned at an optimal height for stretching or massaging the calf muscles.
• Multiple Height Settings: The SUN-FLEX Footrest can be set to two heights, 5.5" or 6.3" above the floor (when level).
• Non-Locking Tilting Platform: The platform can be adjusted to any angle up to ±20°, with a varying amount of resistance, providing sufficient support at the ankle. Individuals who benefit from increased venous blood velocity in the feet can optimize the degree and ease of movement.
• Ideal for Small Spaces: The 15.5" x 11.0" platform is sufficient for smaller to average feet and restricted spaces. Those with larger feet may wish to consider the SUN-FLEX Footrest which offers similar features and is both wider and deeper.

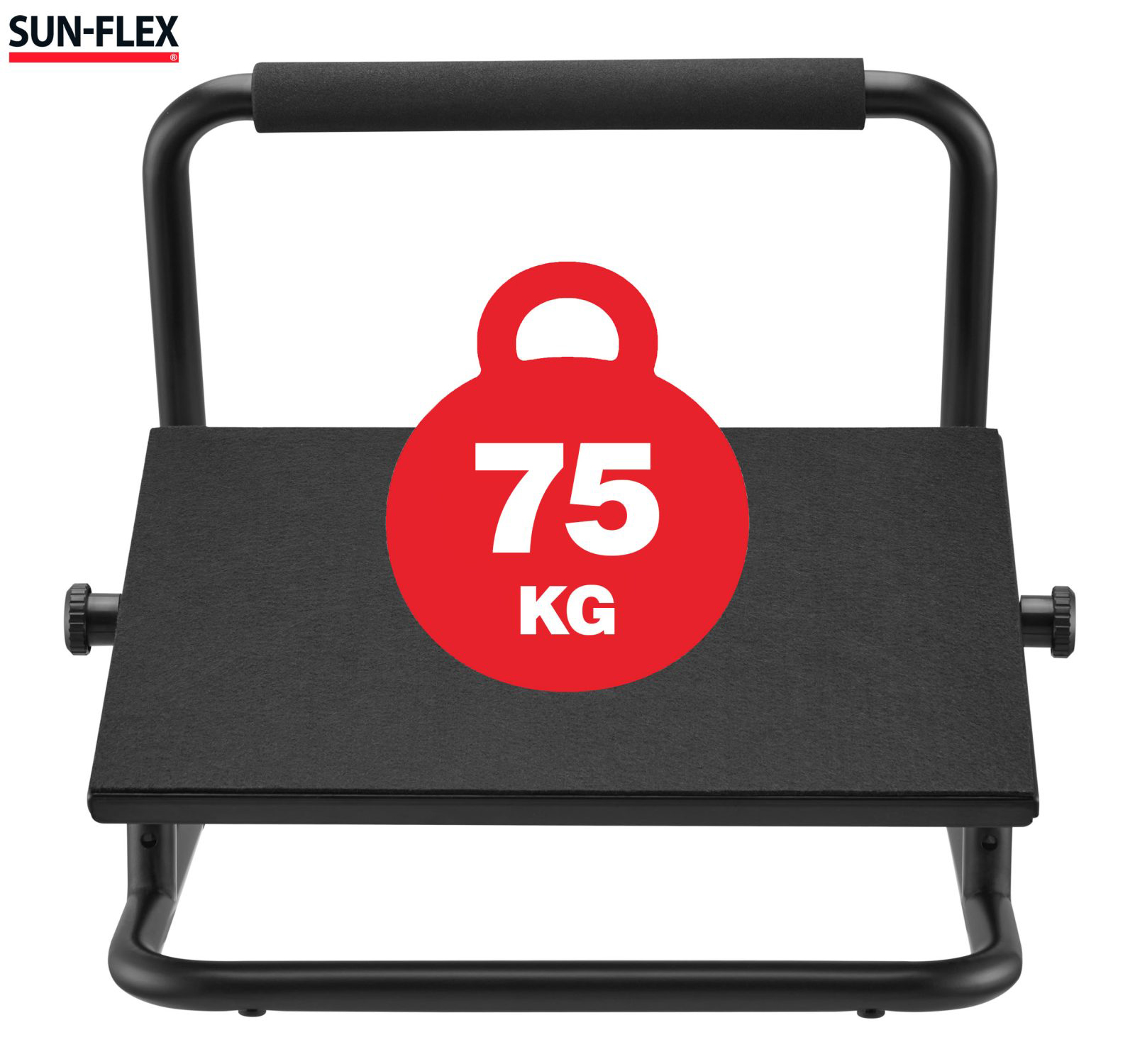

• Sturdy Construction: Sturdy construction is capable of supporting up to 165 lbs (75 kg). However, note that this rating is only to indicate how well it is built. It is only to be used for resting the legs.

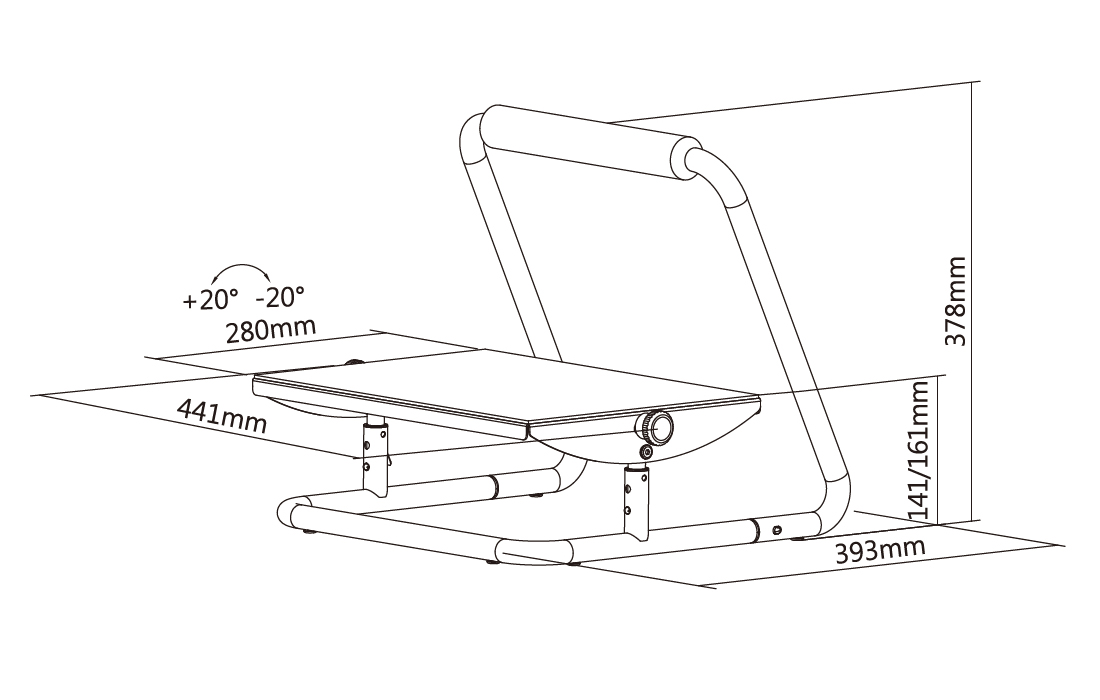

• Overall Dimensions:
  Width: 17.4" (44.1 cm)
  Depth (front to back): 15.5" (39.3 cm)
  Height of Stretching Bar: 14.9" (37.8 cm)
  Diameter Stretching Bar: 1.5" (3.8 cm)
• Platform Dimensions:
  Width: 15.5" (39.4 cm)
  Depth (front to back): 11.0" (28.0 cm)
• Weight: 5.7 lbs (2.6 kg)
• Tilt Adjustability: Tilt tension is adjustable
  Tilt Angle Range: +20° to -20°

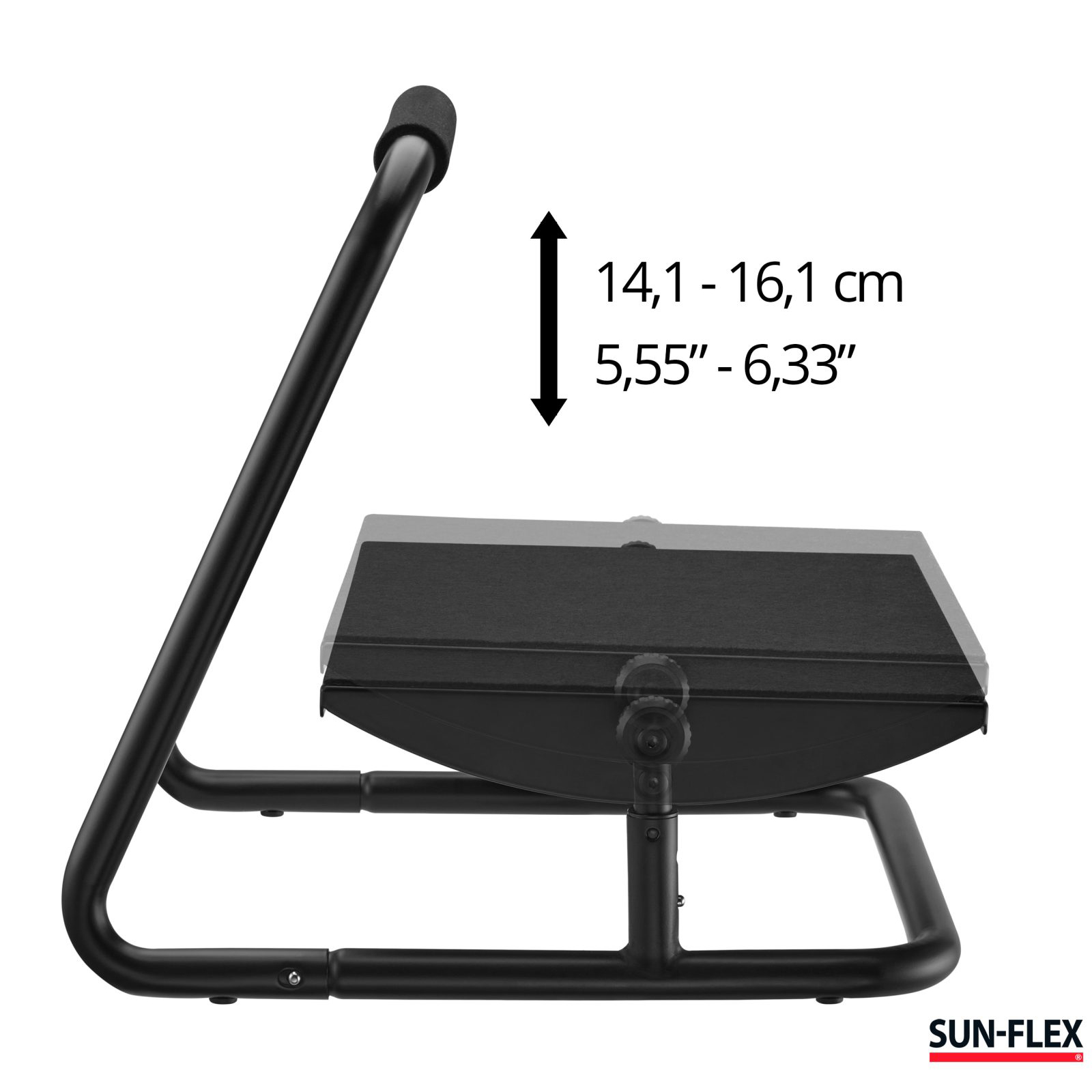

• Platform Height (when level):
  Low: 5.5" (14.1 cm)
  High: 6.3" (16.1 cm)
• Platform Surface: Textile surface for warmth - suitable for use without footwear
• Materials: Steel Frame, Textile surface on footplate, Foam cover on stretcher bar
• Warranty: 1 Year
• Package Contents: SUN-FLEX Relax Footrest, Assembly Guide

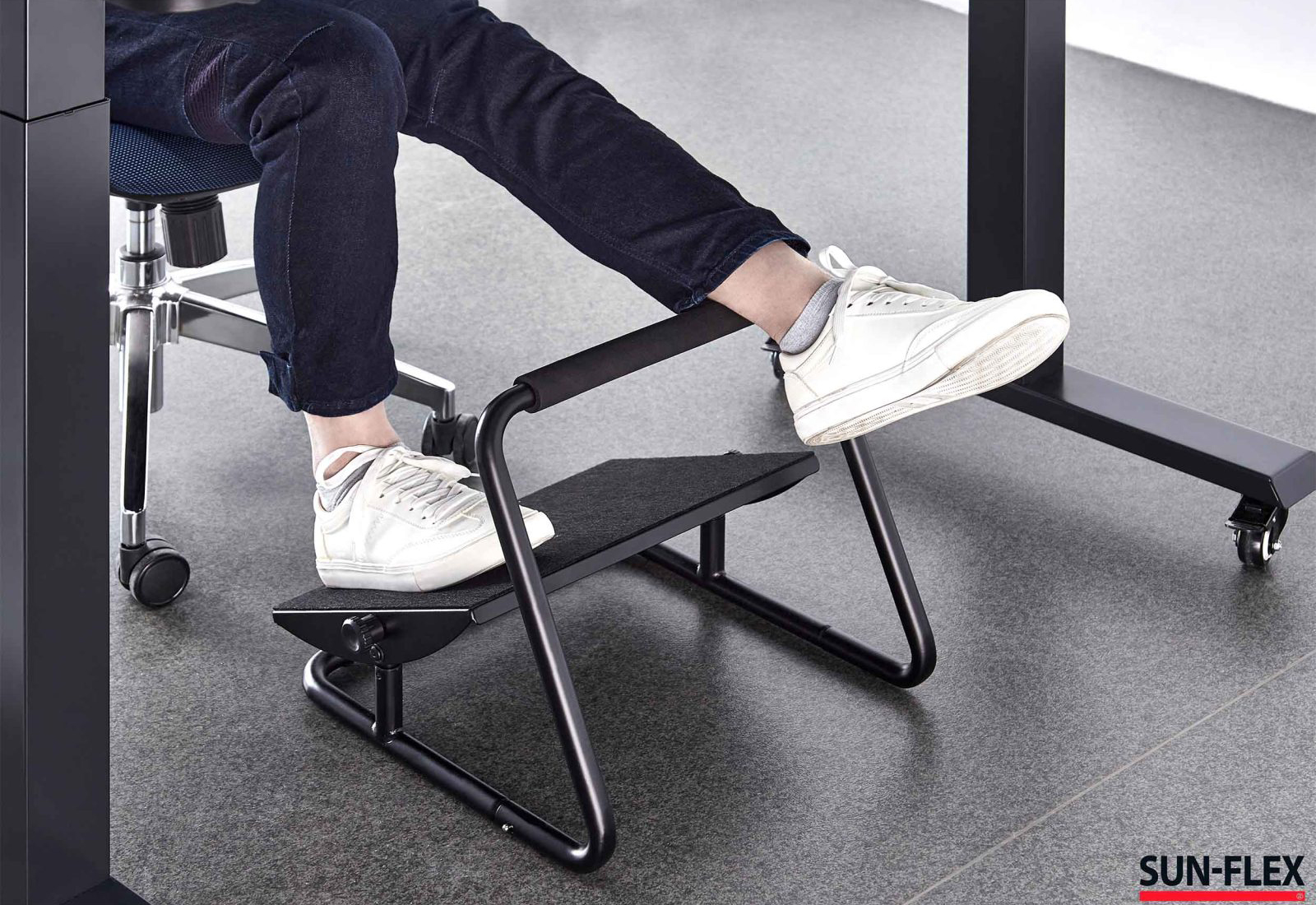

• Set the foot platform to "your" height. To determine the appropriate height you should sit comfortably positioned at your workstation with your hands and arms correctly positioned for the use of the keyboard and mouse. You will then want to elevate the foot platform to a height that supports your thighs at 90° to your torso. This should ensure that there is no pressure point where the back of the thigh meets the front edge of the seat pan.

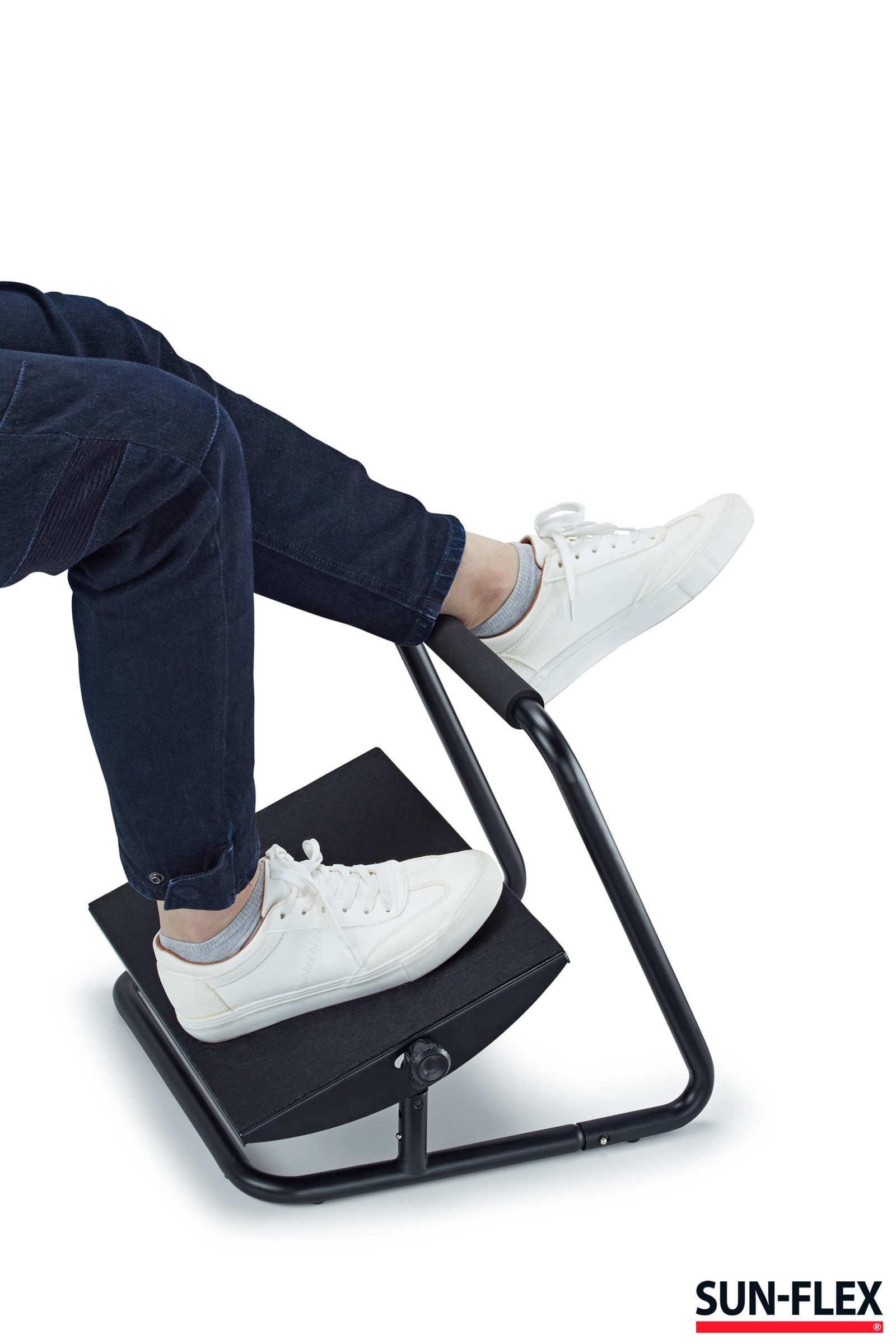

• Use the stretcher bar to stretch your Achilles Tendons and calf muscles. Make a point of placing your heels on the bar to keep these stretched throughout the day. You can also move the rest closer to your chair and use the bar for massaging the calf muscles.
