n-ABLER Trackballby Pretorian
| Accessories |
The n-ABLER Trackball from Pretorian is specifically designed to address the needs of computer users with limited hand control, motor skill difficulties, poor hand-eye coordination, and lack of manual dexterity. This functionality is packaged in a heavy duty housing designed to survive heavy use. High contrast coloured buttons and trackball assist users in determining position and function of the controls.
The n-ABLER Trackball provides cursor control as well as single-click controls for left click, right click, double click, and drag lock functions. In addition the n-Abler Trackball also offers a "Locking Axis" function which locks the cursor to either vertical or horizontal movement, addressing the difficulty of cursor control for users who experience tremors or may struggle with fine motor control.
Cursor control on the n-ABLER Trackball is provided by a large 63 mm, free-running ball which responds to minimal effort. To avoid accidental movement the trackball projects only slightly above the housing, with the activation buttons fully recessed to avoid accidental activation as well as to aid users in button targeting. Dual mini-phono jacks also permit the attachment of a variety of external switches to provide users with easier access to the Left and Right click functions. Users who find the traditional orientation unsuitable have the option of 'teaching' the trackball to orient itself at 90° increments, freeing the user to change the housing orientation for optimum usage and comfort. The trackball also offers an optional buzzer setting which provides notification as specific functions are activated or deactivated.
The design of the n-ABLER Trackball offers fingertip precision control and requires only minimal hand movement. This can reduce wrist and elbow fatigue, as it requires noticeably less effort. The symmetrical design enables users to work with either hand without having to angle the wrist, and the unit can also be configured for 'left-handed' operation. Its large, integrated hand support/palm rest makes work posture more relaxed and less strained.
Note: The latest release of iOS13 for Apple portable devices includes support for USB Pointing Devices. This means that virtually all of the Pretorian Mouse Replacement solutions can now be used with iPads and iPhones that have iOS13 or newer. Connection to the portable device requires a "camera adapter cable". Because the mousing device will be powered by the phone or tablet it is preferable to use one with pass-through charging so the portable device can charge while the mousing device is attached and in use.
Reduces Strain on Arm, Elbow and Shoulder Muscles
- The n-ABLER Trackball is a stationary mousing device. Moving the ball with the fingers moves the cursor on the screen but the device itself does not move. Limiting the repetitive movements of the arm and shoulder can greatly reduce the potential for injury and inflammation in these muscle groups. Many users who can benefit from the n-ABLER features already have issues in these areas so any reduction of the amount or degree of movement is of benefit. The housing of the trackball can also be set at any multiple of 90° and the trackball 'taught' which way is up. Allowing the user to keep the elbow, wrist and hand in a straight line, and to limit ulnar and radial deviation. Learn More About Ulnar Deviation
Reduces Strain on the Hand, Wrist and Arm
- Trackballs effectively counter any tendency the user might have to grip the pointing device too hard. This often inadvertent static grip can cause pain and injury to the muscles and soft tissues in the back of the hand and in the wrist and forearm. Trackballs, by requiring a simple spinning motion accomplished with the fingers, eliminate static grip entirely. Learn More About Static Grip Force
Assists in Button Access
- The n-ABLER Trackball offers inset buttons surrounding the trackball. This design assists users with motor control weakness in targeting the buttons as well as having the accompanying effect of reducing the risk of accidental button activation.
Hardwired Drag Lock Feature Reduces Finger Fatigue
- The hard-wired drag-lock feature allows users to activate drag-lock by a simple click. This eliminates the need to hold down the button while dragging the selected item on the computer screen. This greatly simplifies using applications that require significant click-and-drag actions.
"Axis Lock" for Simplified Cursor Control
- The Axis Lock button locks cursor movement to either the vertical or horizontal axis when activated. This can be of great benefit to those who experience involuntary tremors or muscle spasms which make fine cursor control difficult.
Those who experience only tremors may be interested in the n-ABLER PRO Trackball
which includes an Anti-Tremor setting with multiple sensitivity settings while still retaining traditional Free-Axis cursor control.
Enables Load Balancing Between Left and Right Hands
- The n-ABLER Trackball feature an ambidextrous design and can be placed on the left or right side of the keyboard in the traditional desktop layout. Left and Right button functions can be switched 'onboard'. The ability to distribute the workload as desired allows the user to reduce the strain on the muscles of the dominant side.
Large Diameter Weighted Ball
- The 63 mm ball on the n-ABLER Trackball is weighted to provide users with excellent feedback response. The weighted ball is almost fully recessed into the housing, requiring the user to consciously make contact in order to achieve cursor movement. This serves to greatly reduce the risk of unwanted cursor movement. The higher mass lets users with greater ability can also 'spin' the ball to cover greater distances.
- Ergonomic Design: Pretorian products are designed with the user in mind, providing appropriate button positioning, ease of control and necessary hand support for all-round ergonomic benefit.
- Rugged Construction: Pretorian products are designed with the expectation that they may be subjected to less than ideal conditions. As a result their construction is intended to accept this type of usage without failure.
- High Visibility Controls: The n-ABLER Trackball features brightly coloured high-contrast buttons and trackball which act as visual aids to assist users who have vision or comprehension difficulties.
- Large Footprint for Maximum Stability: All Pretorian products are designed to ensure stability. The large footprint housing ensures that the devices are not easily knocked off of the surface on which they are situated.
- Standard Mounting Pattern: A standard 3-point threaded mount is provided on the underside for securing to any mounting surface.
- Symmetrical Design: The housing of the n-ABLER Trackball provides users with the freedom to easily switch between right or left use. Left and Right click buttons can easily be switched without the need of changing computer settings.
- Integral Wrist Support: The Trackball offers a large surface on which to rest the heel of the hand. This means that the wrist can be maintained in a neutral position, reducing the risk of wrist extension and also permitting users to relax and allow the wrist to rest.
- Large Trackball: The large 63 mm, free-running ball ensures that cursor control requires nominal effort. Although the ball has significant mass it will still move with a minimal amount force. A speed control setting enables users to cycle through 4 levels of performance, choosing the one which best meets their needs at any time.
- Clearly Identifiable Controls: The large buttons on the n-ABLER Trackball feature primary colours with white legends in order to meet the needs of a wide range of users, including those who may have limited vision and may not be able to discern the legending.
- Assisted Access Buttons: All buttons are mounted sub-flush to prevent accidental activation. This positioning also serves as an aid to guide fingers directly to the buttons. This feature, combined with the wide positioning between buttons, greatly reduces the potential for accidental activation.
- Left to Right Switchable: On board programming lets users exchange Left and Right Click functions with no need to access or modify operating system settings.
- Re-Orienting Function: Not all users may find the traditional placement of the trackball to meet their needs. For this reason the n-ABLER can be 'taught' to orient itself to any 90° orientation. This function is performed 'onboard' with no need for driver support.
- External Switch Support: Two 1/8" mini phono plug sockets provide for the attachment of external left and right click buttons for users who may have trouble targeting the inset buttons. Check out our selection of switches that can be used with the n-ABLER Trackball.
- Double Click and Latching Drag Lock: Accomplishing a double-click action is nearly impossible for users with any kind of motor skills limitation. Being able to perform this with a single click is of major benefit for these users. For the same reason, holding down a button for dragging while moving the cursor is just as frustrating. The latching drag locks on until the button is activated a second time to release the latch. This releases the user to focus on the necessary cursor movement, be it selecting text or simply moving something on the screen.
- Axis-Lock Control: The Axis Lock button locks cursor movement to either the vertical or horizontal axis when activated. This can be of great benefit to those who experience involuntary muscle spasms or tremors which make fine cursor control difficult.
- Audible and Visual Indicators: A mutable buzzer apprises of a selection change when moving between functions and a multi-coloured LED serves to notify of the currently active mode.
- Cursor Speed Control: The n-ABLER Trackball is equipped with a cursor speed control switch that permits users to cycle through 4 cursor speed settings. This lets them select the speed which best serves their needs and is changeable at any time.
- PS/2 and USB 'Plug and Play' Installation: Installation is a breeze. Simply connect the USB and the trackball will automatically install. If a PS/2 connection is required just attach the adapter, plug it in and start/restart the computer.
- Wired Reliability: The Pretorian n-ABLER Trackball employs a wired USB connection which eliminates the potential for wireless to 'drop out' at a crucial moment. It also ensures the fastest communication - eliminating any potential for lag from wireless.
|Images (Click on any thumbnail to view larger image)|

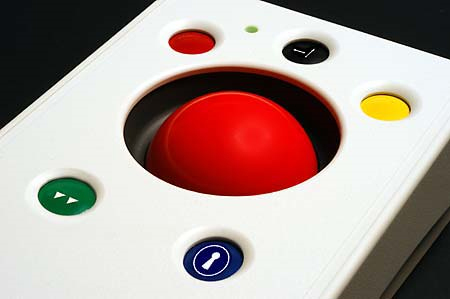

n-ABLER Trackball - Button Controls

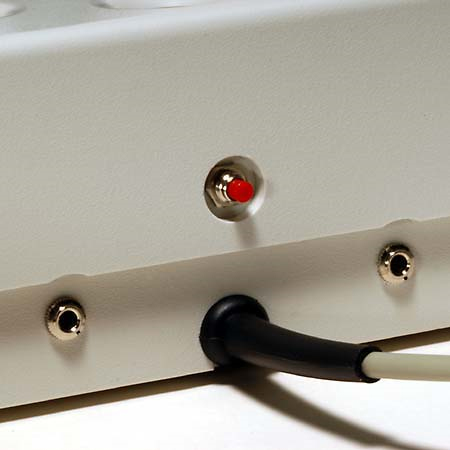

n-ABLER Trackball - Speed Control and External Switch Jacks
- Pretorian n-ABLER Trackball User Manual: PDF
- Width: 5.1" (12.9 cm)
- Depth (front to back): 9.2" (23.3 cm)
- Height (to top of rear of casing, highest point on mouse): 2.8" (7.0 cm)
- Height (front of casing): 1.8" (4.6 cm)
- Height (rear of casing): 2.8" (67.2 cm)
- Height (from casing to top of trackball): 0.2" (0.4 cm)
- Diameter of Trackball: 2.5" (63 cm)
- Diameter of Buttons: 0.7" (1.8 cm)
- Cord Length: 79.0" (2.0 m)
Left Button: Red
Axis Lock Button: Black
Right Button: Yellow
Double Click Button: Green
Drag Lock Button: Blue
To CPU: USB or PS/2 (USB to PS/2 adapter included)
To switches: 2 x 1/8" (3.5 mm) Mini-phono Jacks
- Package Contents: n-ABLER Trackball, USB to PS/2 adapter, User Guide
PC, Mac, Chromebook
Note: The latest release of iOS13 for Apple portable devices includes support for USB Pointing Devices. This means that all of the Pretorian Mouse Replacement solutions can now be used with iPads and iPhones that have iOS13 or newer. Connection to the portable device requires a "camera adapter cable". Because the mousing device will be powered by the phone or tablet it is preferable to use one with pass-through charging so the portable device can charge while the mousing device is attached and in use.
- Warranty: 2 years
- If you are new to a trackball expect that it will take a while to get accustomed to the different style of control. It is also a good idea to limit the amount of time you use it in the first while. Rather, build up to longer periods of usage by interchanging with a different mousing device or by Load Balancing (see next point).
- Load Balance Your Use: The freedom of an ambidextrous trackball lets you easily switch between left and right handed use. Make a point of using it with your non-dominant hand. Not only is this good for your dominant hand, which gets a break from working, it can slowly build dexterity and endurance which your non-dominant hand generally does not have. As a bonus, it is also a way of stimulating the other half of your brain, which is never a bad idea. The n-ABLER trackball permits 'onboard' switching of Left and Right button functions to better accommodate load balancing.
- Take Regular Breaks: If you find that you are experiencing discomfort in your fingers, especially in the learning stages - that is a good sign that you may want to take a break by switching to a different device or by swapping to the other hand. As with any device, make an effort to regularly change your usage, take breaks, and perform stretches. Some users find that the fingers can benefit from occasionally flexing them through a full range of movement, both extending and contracting them fully.
- Remember to employ the one-touch Double Click, Drag-Lock and Axis Lock buttons to best benefit from the features available on your n-ABLER Trackball.
- If you experience tremors or muscle spasms consider using the Axis-Lock button to better control the cursor.
|For pricing, availability or to order this product, visit our online store.|
|NAT|| n-ABLER Trackball, USB with PS/2 adapter, Off-white Housing with High Contrast Colour Controls|
