Super Mini Compact 3100U Keyboard - Detailed Specification Sheet

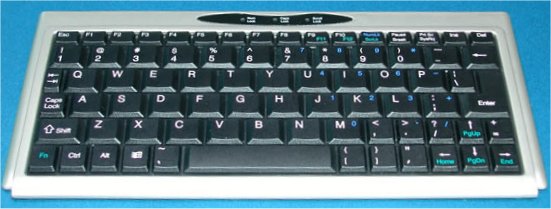

Picture of Super Mini Compact Keyboard with Embedded Numeric Keypad

This is simply the smallest keyboard available on the market today.

This keyboard has a 77 key layout with an embedded numeric keypad to offer full 101 key functionality. This keyboard uses an ultra-low travel scissor-switch membrane keycap architecture which ensures a stable even key travel movement. This is an improvement over traditional membrane keyboards and ensures that typing is silent, stable and comfortable.

The keyboard features an incredibly low profile which helps to prevent wrist extension (dorsiflexion), as it is only 0.63" high.

Interface Cable

6' Cable

Compatibilty

USB port required, IBM compatible systems only

Summary of How the Embedded Numeric Keypad Functions

Legending: The numeric keypad is legended on the top right-hand corner of the keycap in a dark blue color. The Navigation keys are not legended on the embedded numeric keypad but may be accessed by holding down the Fn (Function) key while the Num Lock is turned off. Navigation keys are also located on the bottom right-hand side of the keyboard. The green legends can be activated by holding down the Fn (Function) key while pressing the navigation keys.

To Activate the Numeric Keypad:
Press and release the NumLock key once (i.e. a toggle). The green light at the top right hand corner of the keyboard labeled Num Lock will turn on.

To Deactivate the Numeric Keypad: Press and release the NumLock key once (i.e. a toggle). The green light at the top right hand corner of the keyboard labeled Num Lock will turn off.

With NumLock On: The keypad will generate numbers if the NumLock is active. If you press and hold the Fn (Function) key at the same time as NumLock is active, the numeric keypad will revert to the normal keyboard (i.e. letters).

With NumLock Off: Most computers will boot up with NumLock off, and in this case, the numeric keypad will perform its normal keyboarding functions. The navigation keys can be accessed at any time by holding down the Fn (Function) key and pressing the appropriate key on the embedded numeric keypad.

WHAT THIS MEANS

To Get Numbers Toggle Access (Press NumLock and Release)

To Get Navigation Shift Access (Press Fn and Hold it Down)

Keyboard Specifications:

Keyboard Dimensions:

Width: 8.74" (222 mm)
Height: 0.63" (15 mm)
Depth (front-to-back): 4.05" (103 mm)
Weight: 183 grams

Environmental Tolerances:

Operating Temperature: 0 to 50 degrees Celsius
Storage Temperature: -20 to 60 degrees Celsius
Operating Humidity: 10% to 95% relative humidity

Electrical Specifications:

Interface: USB specification version 1.1
Electronic Data: +5VDC +- 5% @ 100 mA
EMI: FCC class B, CE available

Key Action Specifications:

ALPHANUMERIC / FUNCTION KEYS:

Keycap Size: 16.8 mm
Switch: Scissor-Switch Membrane (Ultra Low Travel)
Peak Force: 55 +/- 15grams
Switch Travel: 1.6 +/- 0.2 mm
Switch Rating: 5 million cycles

EMBEDDED KEY ACTIONS:

Numeric keypad actions: 20

WARRANTY:

12 Month Limited Warranty

Model	Color
SK3100U-SIL	Silver Housing with Black Keys
SK3100U-BLK	Black Housing with Black Keys
