The Freestyle Separated Keyboard (Freestyle Solo) comes with optional accessories to enhance its ergonomic value. These accessories include:
- The Freestyle VIP Accessory (V-Lifters with Integrated Palm Supports)
- The Freestyle Incline Accessory
- The Freestyle Ascent Accessory
- The Freestyle V3 Accessory
- Palm Supports Accessory with pads
- Palm Pads only
The Freestyle VIP Accessory
The Freestyle VIP accessory is the ideal replacement for other adjustable and tented keyboards such as the Kinesis Maxim Adjustable Keyboard and the Goldtouch Adjustable Keyboard. The VIP accessory offers:
-
Left and Right V-Lifters that are easily attached to the bottom of the Solo allowing the user to quickly alternate the slope of the keyboard from 10° to 15° whenever desired.
-
Left and Right Integrated Padded Palm supports that simply attach to the front of the Solo, and are included to keep wrists in a neutral position while typing at either tenting slope.
-
Optional usage, with or without the pivot/tether. The pivot/tether connects the two keying modules of the Solo keyboard together. Disconnect the pivot/tether if greater separation is required.
-
A highly stable typing platform with no 'bounce'.
The Freestyle Incline Accessory
The Freestyle Incline accessory is the ideal replacement for fixed split and tented keyboards such as the Microsoft Natural. The Incline accessory offers:
-
10° fixed tenting of both keyboard modules.
-
Adjustable splay (up to 30°) of both keyboard modules.
-
Padded palm supports for added comfort.
-
Keyboard modules that may be unmounted from the base without tools for individuals that require greater separation but no tenting.
The Freestyle Ascent Accessory
The Freestyle Ascent accessory is the ideal replacement for fixed split and tented keyboards such as the SafeType. The Ascent accessory offers:
-
20° - 90° fixed tenting of either keyboard modules.
-
Adjustable linking plate for additional extension (requires 20" cable for maximum separation).
-
Optional padded palm supports for added comfort (most aptly suited for the lower tent settings of 20, 30 and 40 degrees).
-
Keyboard modules are mounted with tools to the Ascent accessory. The additional weight of the accessory (constructed of heavy metal - 4 lbs in total), together with this secure mounting mechanism, make the Ascent extremely stable and safe to use.
The Freestyle V3 Accessory
The Freestyle V3 accessory is the ideal accessory to allow tenting in a circumstance where palm supports are not desired, and offers a similar feature set to keyboards such as the Kinesis Maxim Adjustable Keyboard and the Goldtouch Adjustable Keyboard. The V3 accessory offers:
- Left and Right V-Lifters that are easily attached to the bottom of the Solo allowing the user to quickly alternate the slope of the keyboard from 5°, 10° to 15° whenever desired.
- Optional usage, with or without the pivot/tether. The pivot/tether connects the two keying modules of the Solo keyboard together. Disconnect the pivot/tether if greater separation is required.
- A highly stable typing platform with no 'bounce'.
The Freestyle Palm Supports Accessory
The Freestyle Palm Supports accessory is available to those who do not require or want any tenting of the keyboard. The Palm Supports accessory offers:
-
Left and Right Supports that are easily attached to the front of the Solo allowing extra support for your palms when not typing.
- Optional usage, with or without the pivot/tether. The pivot/tether connects the two keying modules of the Solo keyboard together. Disconnect the pivot/tether if greater separation is required.
-
Palm supports come as part of the VIP and Incline accessories or can be added as an accessory by themselves. They cannot, however, be used when using the V3 accessory. Therefore, if you want both palm supports and tenting, get the VIP accessory; if you want just tenting and no palm supports, get the V3 accessory; if you want just the palm supports, get the palm supports only. You also have the option of adding palm pads to your palm supports for extra comfort.
-
Reduction of Excessive Pronation of the Wrist and Forearm (VIP and Incline Accessories)
-
The two angled tenting achieved by the VIP accessory (and the 10° of the Incline) will help relieve excessive pronation or twisting of the wrists and forearms by allowing your hands to tilt towards a more neutral or natural position (ideally the vertical position sometimes called the 'handshake' position). The 10° and 15° tenting is enough to provide relief without forcing the user to become a 'touch typist' (someone who no longer needs to see the keys being typed).
For those with more severe wrist problems, the Ascent acessory will give them up to 90° tenting, thereby keeping their hands in a vertical or 'handshake' position and giving them maximum benefit.
-
Reduction of Excessive Extension of the Wrist (VIP and Incline Accessories)
-
The padded palm supports of both the VIP and Incline accessories will help to reduce the excessive extension of the wrists by providing a resting place for your palms. This is especially important with tenting mechanisms, since the palm will normally be raised far above the level of the desk on which the keyboard is placed.

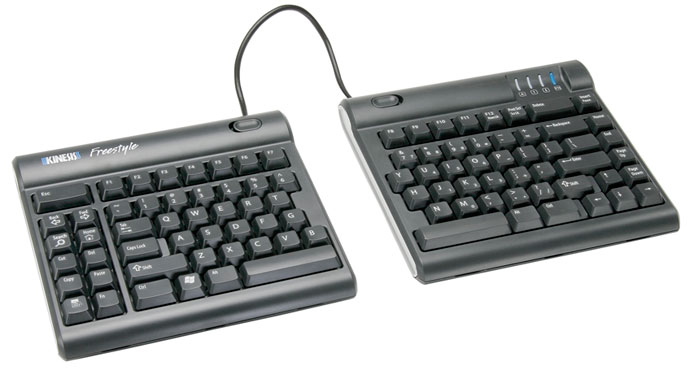

Freestyle Solo without accessories

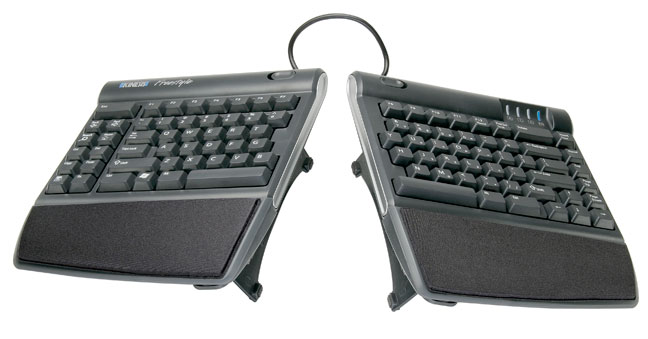

Freestyle Solo with VIP accessory

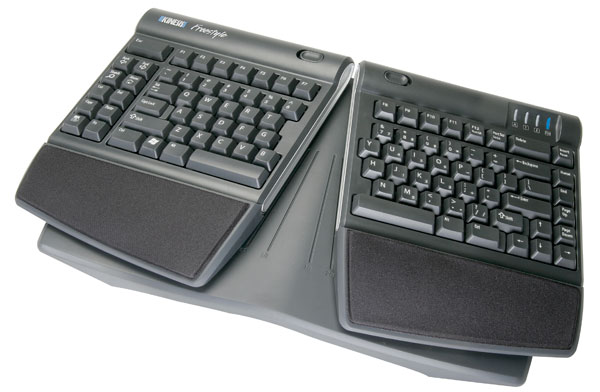

Freestyle Solo with Incline accessory
Freestyle Solo for Mac without accessories
Freestyle Solo for Mac with VIP accessory
Freestyle Solo for Mac with Incline accessory

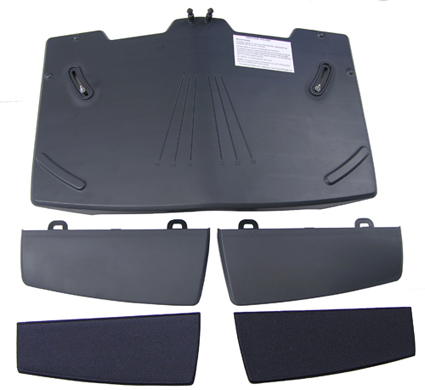

Incline accessory components
Palm supports with pads

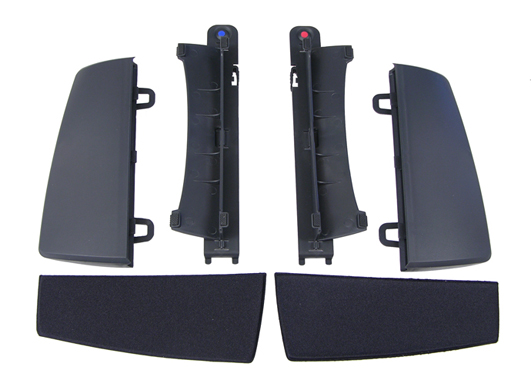

VIP accessory components (tenting mechanism and palm supports)
Freestyle Solo with Ascent accessory

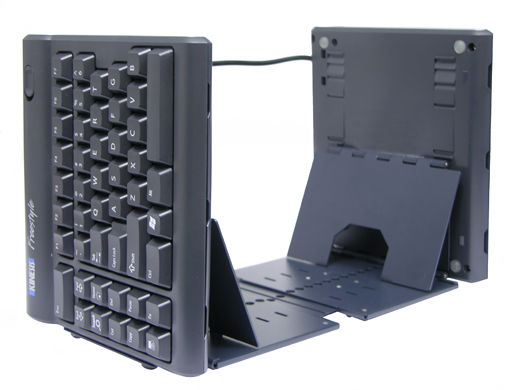

Ascent accessory at 90° using 20" cable
Ascent accessory at 30° using 8" cable

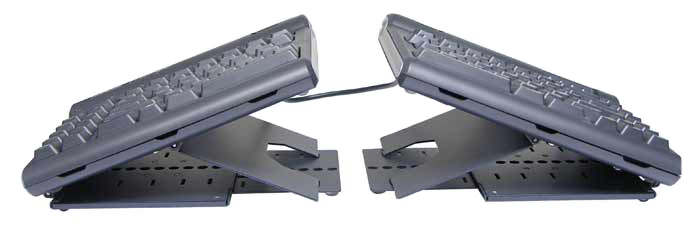

Ascent accessory at 20° using 8" cable

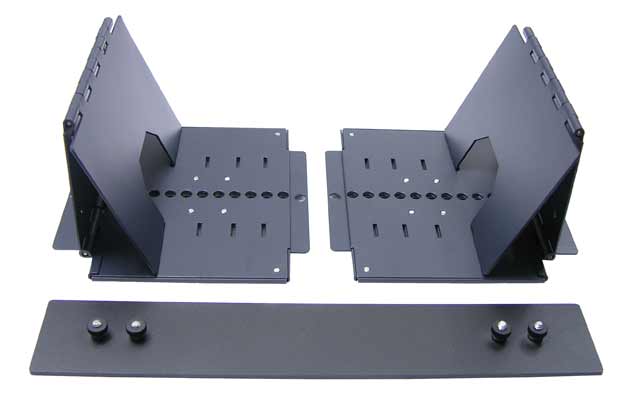

Ascent accessory modules and linking plate
V3 accessory modules
V3 accessory at 5° tenting
V3 accessory at 10° tenting
V3 accessory at 15° tenting
The VIP Accessory
-
Two Angle Tenting
-
Each half of the Freestyle Solo accepts an attachable tenting accessory that can be set at 10° or 15°, depending on the angle desired. The tenting mechanism rotates to produce these two settings: rotate away from edge for 10° tenting, rotate towards edge for 15° tenting. Both settings provide a stable base that will not shift or slide the keyboard.
-
Infinite Splaying
-
Since the VIP accessory attaches to each separate half of the keyboard, one can splay the two halves at whatever angle one chooses. In fact, the 8" cable connecting the two halves of the keyboard allows one to position those halves wherever one wishes, and the VIP accessory will not limit your choices. Even with the pivot tether joining the two halves, the VIP accessory can still be used, effectively recreating other adjustable/separated keyboards like the Maxim or Goldtouch keyboards. Thus the VIP accessory is the most versatile accessory that can be used with the Freestyle Solo.
-
Padded Palm Support
-
Removable padded palm supports easily attach to the Freestyle Solo and provide the necessary platform for your wrists so that they are not forced to extend themselves in order to allow the fingers to reach the keys on the tented keyboard halves.
The Incline Accessory
-
Fixed Angle Tenting
-
The Freestyle Solo can rest on the Incline accessory when the two halves have been joined by the pivot tether at the fixed angle of 10°. The base is stable and secure.
-
Adjustable Splaying
-
The base of the Incline accessory allows an adjustable splay of both keyboard halves up to 30°, with markings built into the base in 10° increments. The Freestyle Solo can then be locked at these fixed angles.
-
Padded Palm Support
-
Removable padded palm supports easily attach to the Freestyle Solo and provide the necessary platform for your wrists so that they are not forced to extend themselves in order to allow the fingers to reach the keys on the tented keyboard halves.
The Ascent Accessory
-
20° - 90° Tenting
(at 10° intervals)
-
The Freestyle Solo can be attached to the Ascent accessory and set at angles ranging from 20° to 90° at 10° intervals. The base is stable and secure.
-
Linking Plate
-
The base of the Incline accessory allows an adjustable splay of both keyboard halves up to 30°, with markings built into the base in 10° increments. The Freestyle Solo can then be locked at these fixed angles.
The V3 Accessory
-
Three Angle Tenting
-
Each half of the Freestyle Solo accepts an attachable tenting accessory that can be set at 5°, 10° or 15°, depending on the angle desired. The tenting mechanism rotates to produce these three settings: rotate away from edge for 5° or 10° tenting, rotate towards edge for 15° tenting. All three settings provide a stable base that will not shift or slide the keyboard.
-
Infinite Splaying
-
Since the V3 accessory attaches to each separate half of the keyboard, one can splay the two halves at whatever angle one chooses. In fact, the 8" cable connecting the two halves of the keyboard allows one to position those halves wherever one wishes, and the V3 accessory will not limit your choices. Even with the pivot tether joining the two halves, the V3 accessory can still be used, effectively recreating other adjustable/separated keyboards like the Maxim or Goldtouch keyboards. Thus the V3 accessory is the most versatile accessory that can be used with the Freestyle Solo.
Freestyle VIP
| Features Video
for VIP |
 |
Instructional video showing the features of the Freestyle VIP (Windows Media): Click here |
| |
 |
Instructional video showing the features of the Freestyle VIP (QuickTime): Click here |
| Animation for VIP | |
Flash animation showing the features of the Freestyle VIP: Click here |
Freestyle Incline
| Features Video
for Incline |
|
Instructional video showing the features of the Freestyle Incline (Windows Media): Click here |
| |
|
Instructional video showing the features of the Freestyle Incline (QuickTime): Click here |
| Animation for Incline |
|
Flash animation showing the features of the Freestyle Incline: Click here |
Freestyle VIP
| Width |
20.625" (max separation) |
| Depth |
10.0" with palm supports |
| Maximum Height with VIP at 15° |
3.07" |
| Maximum Height with VIP at 10° |
2.5" |
| Weight with VIP |
2 lbs 6 oz |
Freestyle Incline
| Width |
15.375" (no separation) |
| Depth |
10.0625" |
| Maximum Height with Incline |
2.875" |
| Maximum Depth with Incline; |
10.625" |
| Weight with Incline |
2 lbs 15 oz |
Freestyle Ascent
| Solo keyboard with linking plate installed |
Maximum separation with 20" cable |
Maximum separation with 8" cable |
| 20 degree tent |
8.5" |
8.5" |
| 30 degree tent |
9.5" |
8.75" |
| 40 degree tent |
11.0" |
8.75" |
| 50 degree tent |
13.0" |
9.0" |
| 60 degree tent |
10.5" |
9.0" |
| 70 degree tent |
12.25" |
9.25" |
| 80 degree tent |
14.5" |
9.5" |
| 90 degree tent |
17.25" |
10.0" |
| Linking Plate Width |
11.75" |
| Weight excluding keyboard |
4 lbs |
Freestyle V3
| Maximum Height with V3 at 15° |
3.125" |
| Maximum Height with V3 at 10° |
2.5" |
| Maximum Height with V3 at 5° |
1.875" |
| Weight of V3 |
0.5 lbs |
| AC740-BLK |
The Ascent Accessory (black only) |
| AC730-BLK |
The V3 Accessory (black only) |
| AC720-BLK(WHT) |
The VIP Accessory (black or white) |
| AC710-BLK(WHT) |
The Incline Accessory (black or white) |
| AC706-BLK(WHT) |
Palm Support Accessory with pads (black or white) |
| AC700PP-BLK(SLV) |
Palm Pads (black or silver) |
