OrthoMouse

by Orthovia

   Description       Ergonomic Benefits        Features       Images and Multimedia       Specifications       Models       Accessories
Product Description

The OrthoMouse from Orthovia is designed to put your hand in the 'position of function'. When you flex your fingers (i.e. curling your fingers into a ball) you are using the flexor muscles in your hand. When you open your hand (extending your fingers to a straight position) you are using your extensor muscles. The position of function is the point of balance between these two sets of muscles. This design also enhances the tactility of the mouse by using the extra sensitivity in your fingertips to provide maximum precision and accuracy. The sensor is near the 'top' or tip of the mouse, directly below your fingertips, making the act of targeting and positioning the cursor a direct extension of your fingers (much like writing). In order to accommodate the various hand sizes, the OrthoMouse comes with several slide-on attachments at the base and top of the mouse to accommodate different hand sizes and methods of use. This ensures an increased sense of tactility and confidence in cursor positioning, resulting in a very small learning curve. This mouse is ideally suited for anyone who is seeking a sense of precision and high tactile feedback including graphics designers and gamers.

Ergonomic Benefits
  • Keeps hand relaxed: By maintaining the hand's natural 'position of function', the Orthomouse helps relax the hand, even when mousing, so that hand injuries can be avoid by minimizing stresses due to overextending the finger muscles and excessive pronation/supination.
  • Ensures accuracy and precision while navigating cursor: When the thumb is allowed to be opposed to the fingers, the hand is better able to take advantage of enhanced control over the mouse without excessively 'gripping' the mouse at the sides. The normal positioning of the hand should not overstress the hand, as it affords control to the hand similar to writing.
  • Balanced Flexion of the Fingers: By maintaining the hand's natural 'position of function', the Orthomouse can help to relax the hand, especially with respect to generating left and right mouse clicks, by minimizing stresses due to overextending the finger muscles or excessive pronation/supination.
Features
  • Six possible configurations of mouse shape: Not all hands are alike. The OrthoMouse is adaptable to the size, shape and function of your hand and fingers by means of special adapters that are easy to exchange and are all included in the package. You choose and insert the adapter that fits your hand best and feels most comfortable among six possible shape configurations.
  • Unique design for fingers and thumb: The OrthoMouse is designed so that it supports the hand and fingers evenly while they adopt the correct and innocuous position - the 'Position of Function' during the use of the OrthoMouse. Your hand works and rests (between periods of activity) in the 'Position of Function'. The thumb remains in opposition to the other fingers at all times, which is the main distinguishing characteristic of the human hand. John Napier, states: "Perhaps the most important movement of the human hand is opposition". It allows control, tactility and precision, since the fingers assume a position very similar to the one used during writing.
  • Scroll buttons replace awkward scroll wheel: The thumb on the OrthoMouse is responsible for the scroll features - you move it up for scrolling upwards, down for scrolling downwards, and press the thumb mid button for the 'scrolling click'.
Images and Multimedia

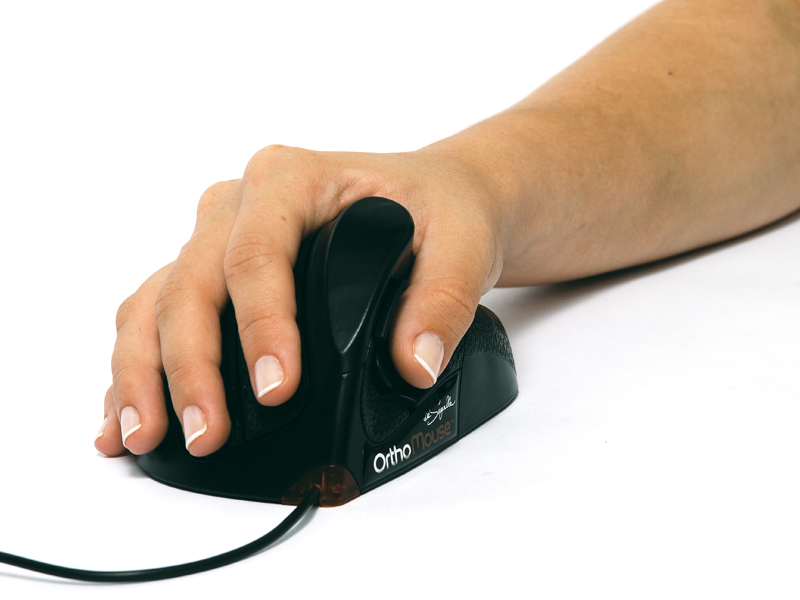

OrthoMouse: correct usage
OrthoMouse: correct usage

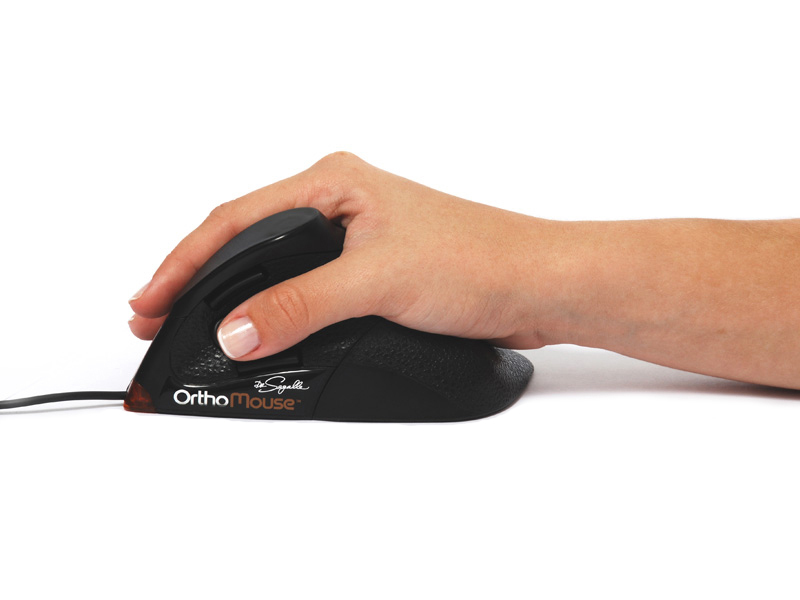

OrthoMouse: correct usage (side view)
OrthoMouse: correct usage (side view)

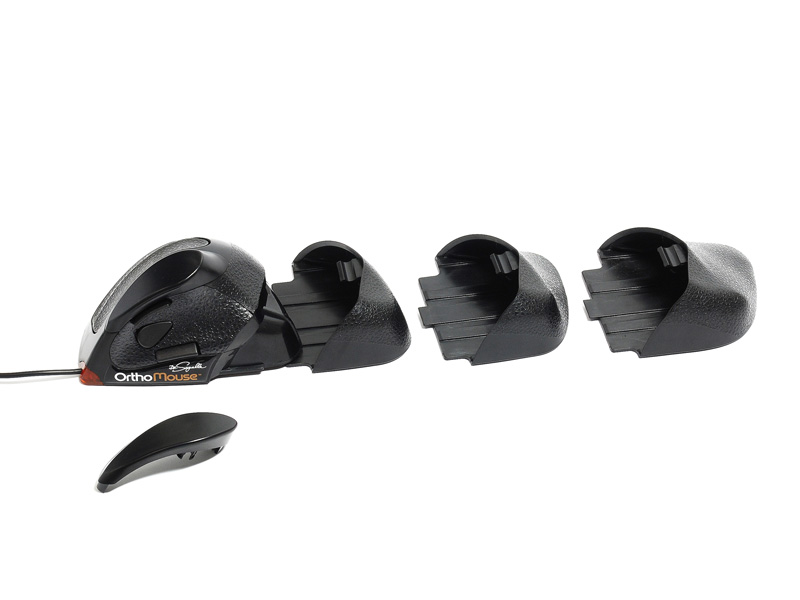

OrthoMouse: with extenders (1)
OrthoMouse: with extenders (1)

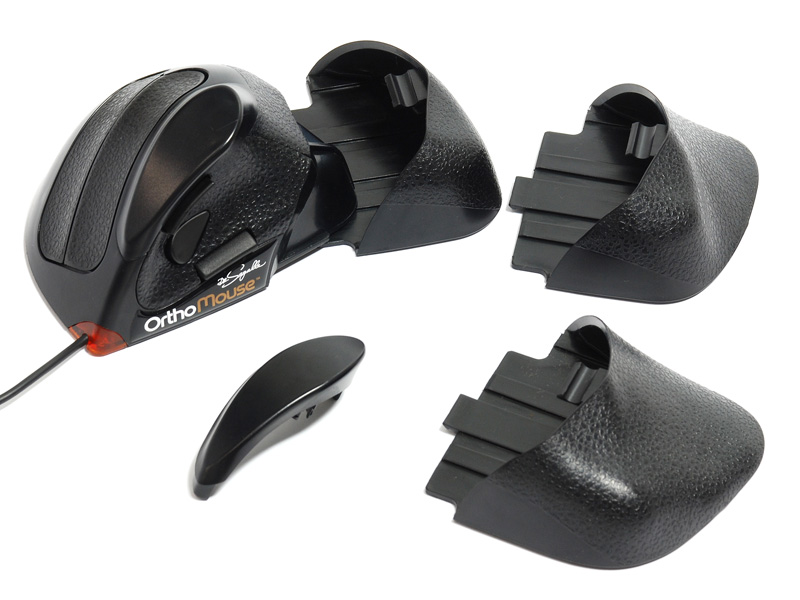

OrthoMouse: with extenders (2)
OrthoMouse: with extenders (2)

Specifications
  • Length (with short extender): 113 mm (4.45")
  • Length (with medium extender): 121 mm (4.76")
  • Length (with long extender): 136 mm (5.35")
  • Width: 82 mm (3.23")
  • Height: 65 mm (2.56")
  • Coating: Engineering plastic
  • Sensor sensitivity: 800 dpi
  • Connection: USB
  • Cable Length: 1.80 m (70.86 inches)
  • Compatibility: Windows: Windows 7 / Vista / XP / 2000 / ME / 98 Macintosh: Mac OS 10.1.X - 10.3.X or newer; Mac OS 8.6 - 9.X Linux: Kernal 2.4 or newer with USB connection
Models
Model #Description
OM-BLK OrthoMouse by Orthovia for PC/Mac (USB only)
