Smoothie Switch

The Smoothie Switches from Pretorian are low profile, low force, large diameter switches for the ultimate in easy and comfortable switching.

Features:

• Operates over the whole switch area of 75mm or 125mm).

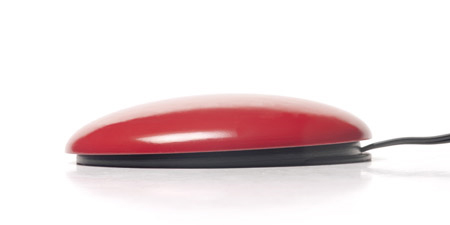

• Extremely low profile and operating force. (see specifications)
• Tactile feedback.

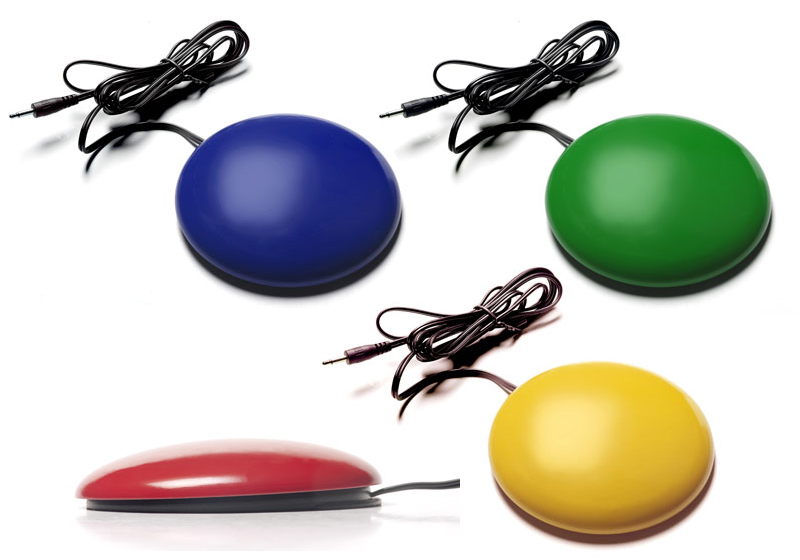

• Available in four colours (red, yellow, blue, green).
• Industry standard fixing holes for easy mounting (125 mm models only).

• Dimensions:
  SM7G, SM7Y, SM7B, SM7R:

  • Diameter: 3" (75 mm)
  • Height: 1" (24 mm)


  SMG, SMY, SMB, SMR:

  • Diameter: 4.9" (125 mm)
  • Height: 1.1" (27 mm)
• Activation Force: (nominal ratings):
  SM7G, SM7Y, SM7B, SM7R

  • Centre: 120 grams
  • Edge: 90 grams


  SMG, SMY, SMB, SMR

  • Centre: 220 grams
  • Edge: 150 grams
• Switch Type: Audible, tactile
• Compatibility: Switch enabled devices or switch interfaces which accept the standard 1/8" or 3.5 mm mini-phone plug and require momentary contact.
• Interface: 0.125" (3.5 mm) mini-phone plug
• Cord Length: 75" (1.9 metres)
