X-keys XKE-124 T-Bar USB Keyboardby PI Engineering
| Additional Resources Usage Tips |
The X-keys XKE-124 T-Bar USB Keyboard from PI Engineering is an easily customizable programmable keyboard with 124 keys and an embedded T-Bar fader for building whatever keyboard layout a user needs, including a switching controller for vMix, Newtek Tricaster, or other popular streaming software. Like similar X-keys products, the XKE-124 T-Bar model has addressable blue and red backlighting for each key, connects to a computer via a USB connection, and is provided with an SDK for software developers for greater customization and integration with existing hardware. It is also housed in a heavy extruded aluminum case with powder coated finish for added durability. The embedded T-Bar fader is smooth, solid, and reports 0 - 255 linear position values.
For those who want to use the XKE-124 T-Bar mainly as a switching controller, PI Engineering also offers a Video Switcher Kit for vMix, Newtek Tricaster, and other streaming software, so that any user can quickly create their layout of choice. This set is a great complement to the XKE-124 T-Bar as well as the XKE-128 Keyboard.
Optimization of the Workstation
- X-keys replace multiple keystrokes with single keystrokes, so that less finger movement and effort is required to performing frequent and repetitive tasks. By creating these keying shortcuts the workload on the fingers is greatly reduced along with associated stress on the hand, wrist or arm.
High Quality Membrane Keyswitches
- X-keys XKE-124 T-Bar USB Keyboard has high force tactile membrane keyswitches, which reduce keying errors, ensuring precise data entry and providing reliable performance (rated at over 1 million operations).
- The 124 keys on the XKE-124 T-Bar can be programmed either in the internal memory of the keyboard or in the computer. This provides a custom input device which acts as a substitution/addition for an existing keyboard, mouse or joystick.
- The keyboard can be placed in landscape or portrait orientation as desired to address limitations imposed by the layout of the workstation, geography of programmed keys or personal preferences.
- Attaching the wedge shaped feet to the left or right side of the keypad allows a user to tent the keyboard up to reduce pronation.
Easy to Read
- User can tent the keyboard up by attaching wedge shaped feet to the top or the bottom of the keyboard which makes the key legends easier to see.
- Applicable to a Number of Occupations: X-keys are ideal for engineers, artists and graphic designers, non-typists, video editors, HTML coders, gamers, programmers, and data entry typists. It also is applicable for anyone who frequently types information like names, phone numbers, passwords and keyboard shortcuts as part of their everyday workload. Keyboard macros and hotkeys offer quick, easy and direct access to specific functions, and the X-keys provides a clearly labelled, physical location for these complex or redundant actions. The XKE-128 in particular is well-suited for use with video switching, sports data, trading, live media control, and many other similar activities.
- 2 Layers of Portable Programmability: A user can program all 124 keys using MacroWorks 3 software. The X-keys stores assigned keystrokes (scan codes) in its internal memory and may be programmed on one system and used on another (which will work plug and play). Users could also make Layer 1 a Left Handed Keypad, and Layer 2 a Right Handed Keypad, or Layer 1 a layout for Program 'A' and Layer 2 a layout for Program 'B'. These layers can also be associated with the blue and red LED backlighting.
- Software Mode vs Hardware Mode: In Software Mode, all programming of the keys is stored in the computer in MacroWorks 3 files (or ControllerMate for Mac) and requires the installation of MacroWorks 3 software (or ControllerMate software) to function. If the device is moved to another computer without MacroWorks 3 (or ControllerMate) installed, it will not work. It would need to be installed again on another computer and the original programmed file copied to that computer or the device reprogrammed. When programming in Software Mode, sliding the programming switch on the device to the "on" position does not program the device in Hardware Mode but is part of programming in Software Mode. The XKE-124 T-Bar has Hardware Mode capability accessible through the MacroWorks 3 software.
- Blue and Red LED Backlighting: Illuminates key legends in dark working environments with individually customizable blue or red backlights.
- Included Clear Keycaps: The clear keycaps snap off for applying and changing key legends, protecting the legends and providing quick visual cues to locate shortcuts and macros with a glance. Included precut legend sheets make it easy to hand inscribe labels for programmed keys.
- Keypad Orientation: The keypad can be placed in landscape or portrait position either to fit the needs of the user or limitations of the workstation.
- Angle Adjustability: Removable rubber feet are included with the X-keys and provide 2 tenting positions "side-to-side" and "front-to-back".
- Optional Video Switcher Set: This set of acrylic keys is designed for many video switching controller systems, including vMix, Newtek Tricaster, etc. Ideal for the XKE-128 and XKE-124 T-Bar keyboards. The kit has (1) the numbers 1-12 on single clear acrylic keys on blue, green, red, and orange backgrounds, (2) M1-M8 on single clear acrylic keys (white background), (3) IN, OUT, four arrows, and 1-6 on single clear acrylic keys (black background), (4) REC, STM on single clear acrylic keys (red background), (5) FTB on single clear acrylic keys (gray background), (6) Wide clear acrylic keys with AUTO 1, AUTO 2, AUTO 3, and TAKE printed on them (gray background), (7) 61 key blockers, and (8) a black paper mask to cover the key deck, reducing backlighting bleed-over. (Note: these keys are not compatible with X-keys Stick models.)
|Images (Click on any thumbnail to view larger image)|
X-keys XKE-124 T-bar

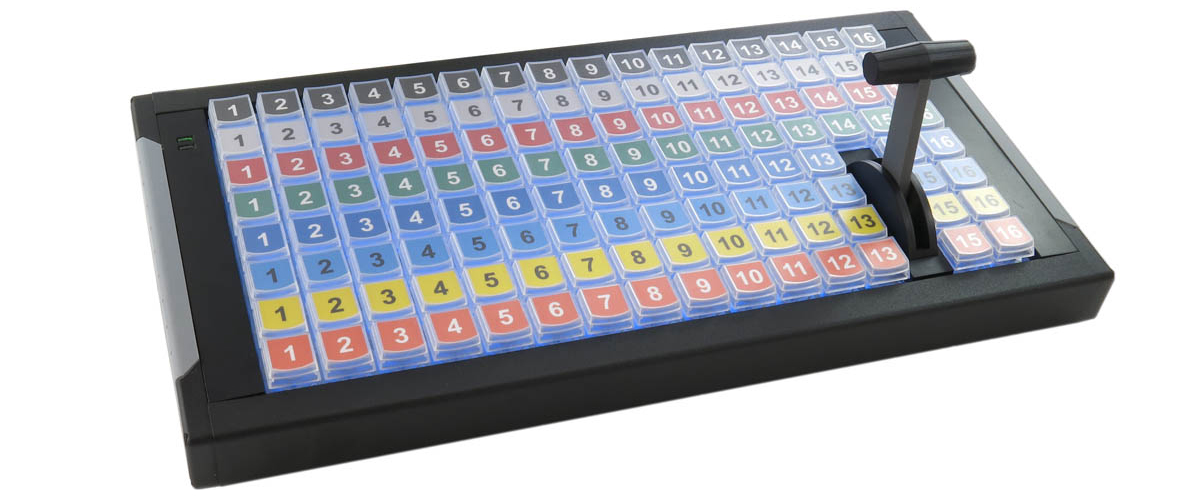

X-keys XKE-124 T-Bar keypad with one hundred and twenty-four programmable keys

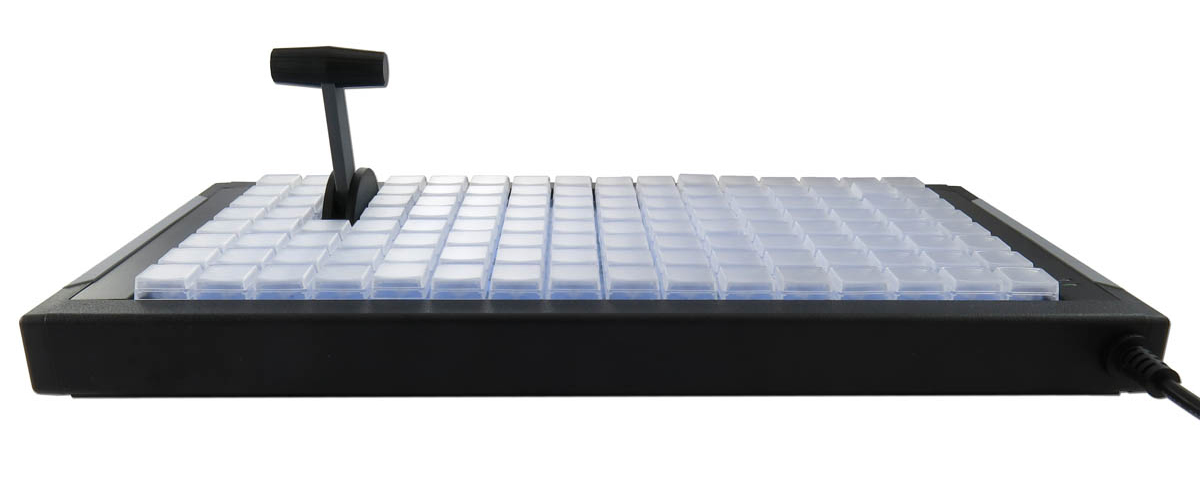

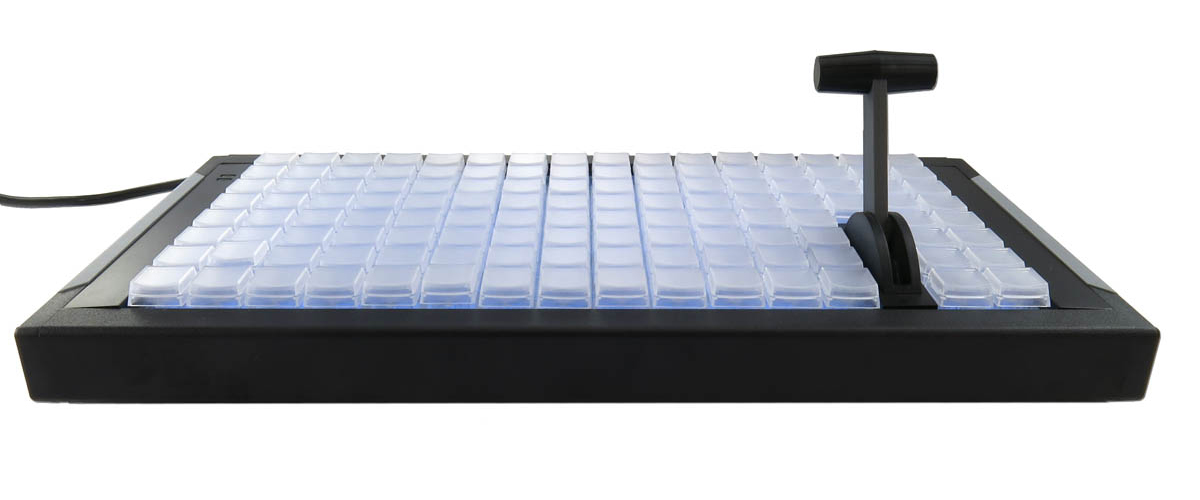

XKE-124 T-Bar front view showing 124 keys with blue backlighting on

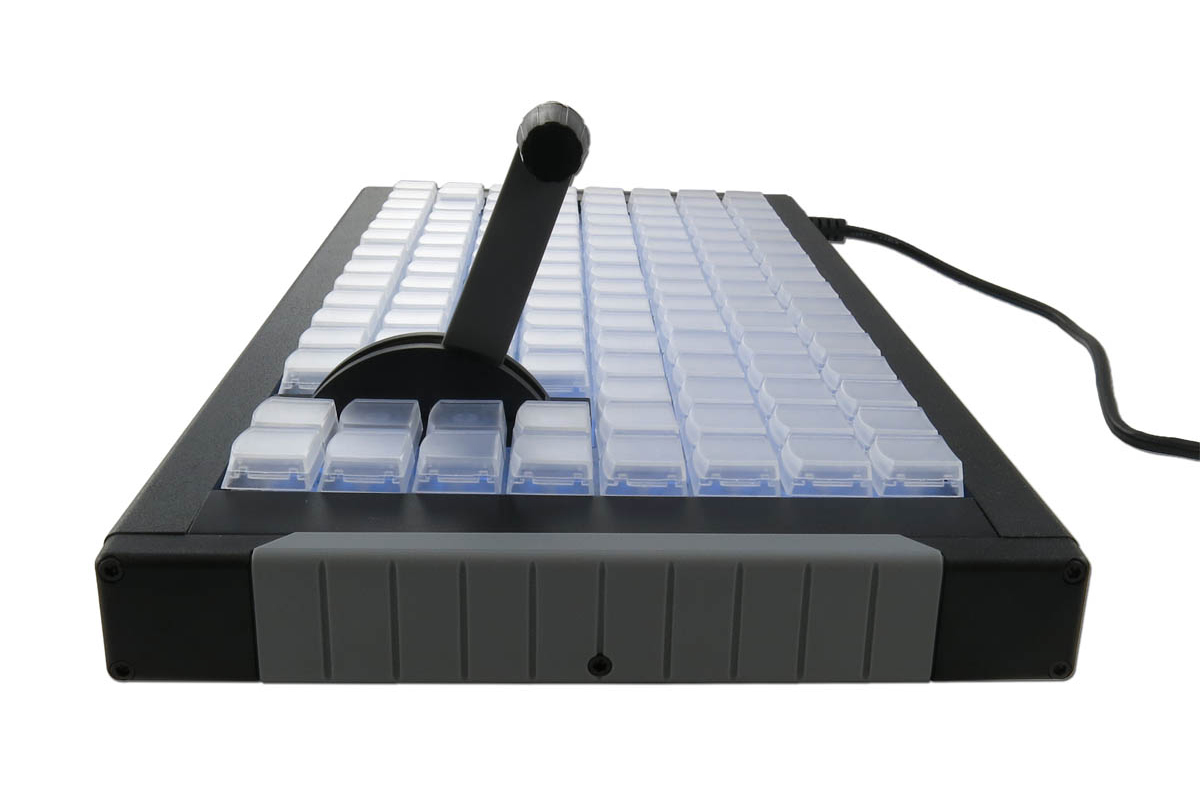

XKE-124 T-Bar side view showing profile of eight rows of keys

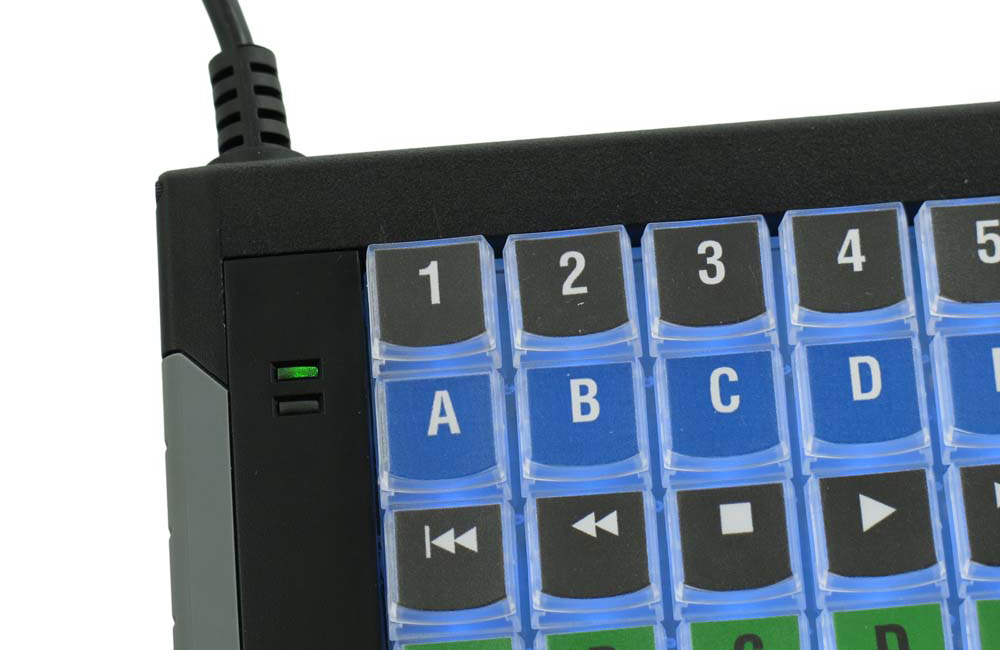

XKE-124 T-Bar close-up view showing the LED layer indicators with green layer on

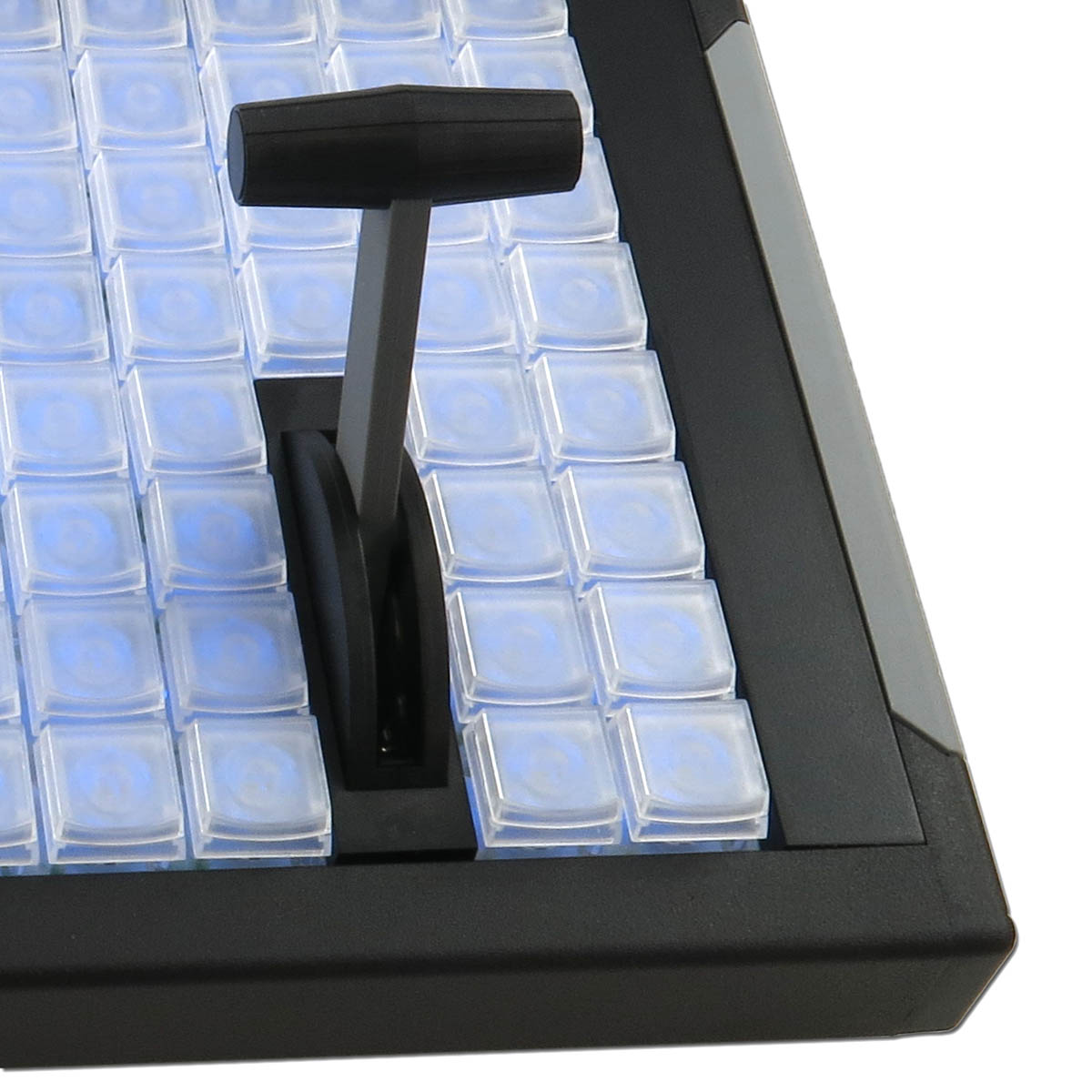

XKE-124 T-Bar close-up view showing the T-Bar

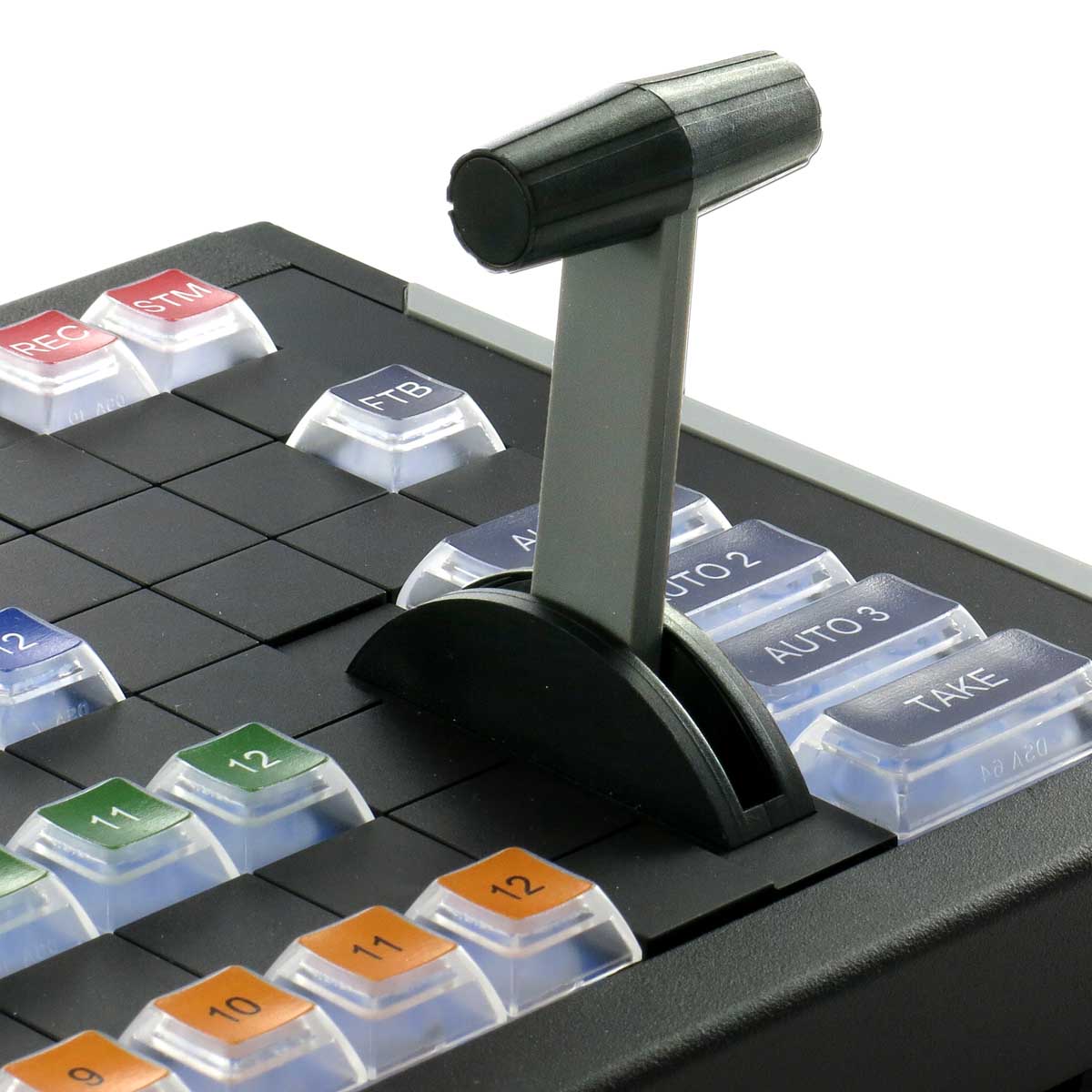

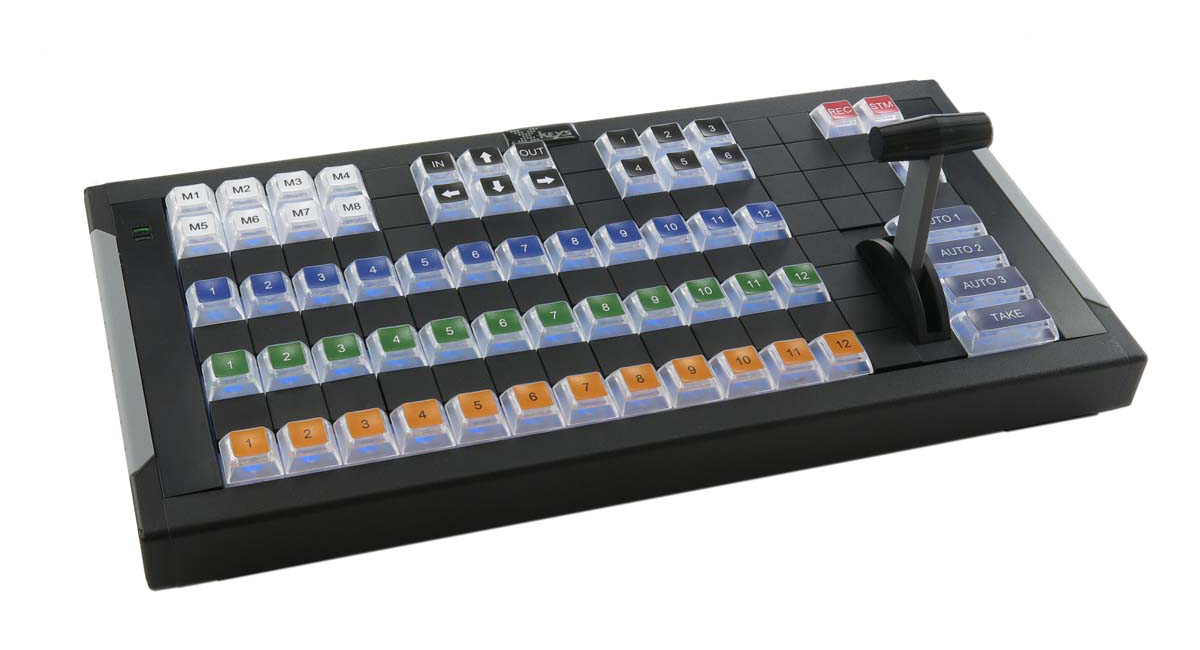

X-keys XKE-124 T-bar with our Video Switcher key set printed on clear acrylic keys.

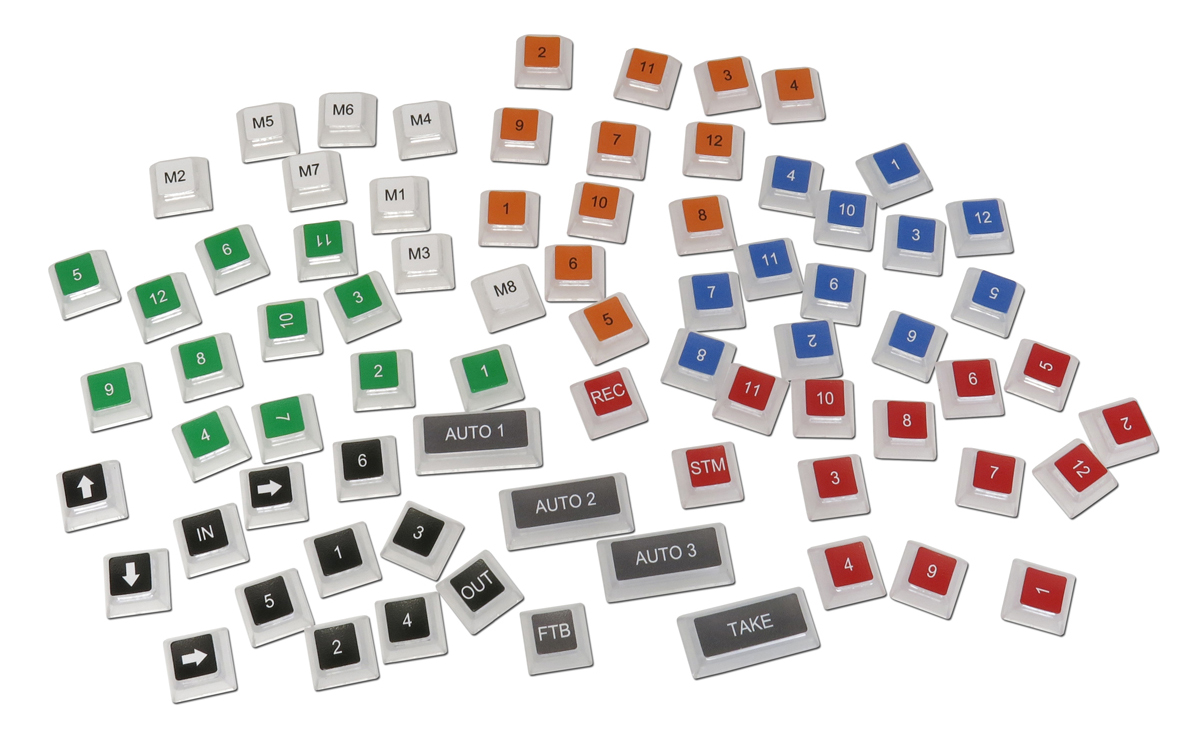

Video Switcher Key Set Accessory Kit

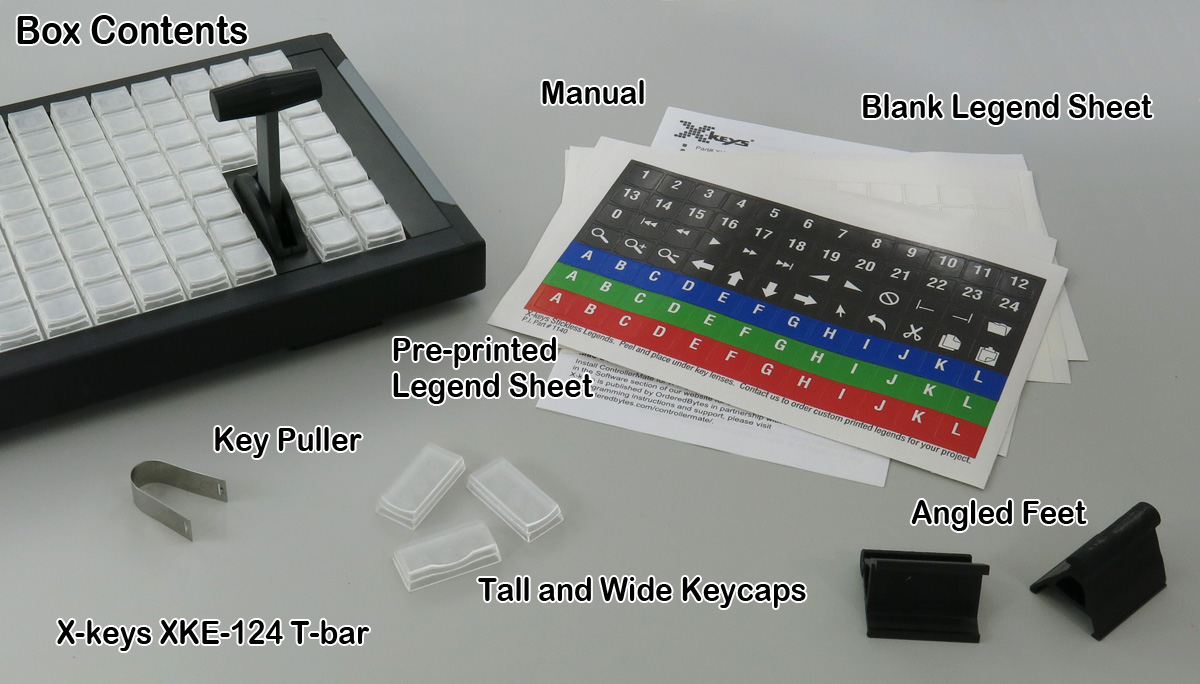

XKE-124 T-Bar box contents including blank and pre-printed legends, tall and wide keycaps, key puller and angled feet.
X-keys XKE-124 T-bar with our Video Switcher key set printed on clear acrylic keys.

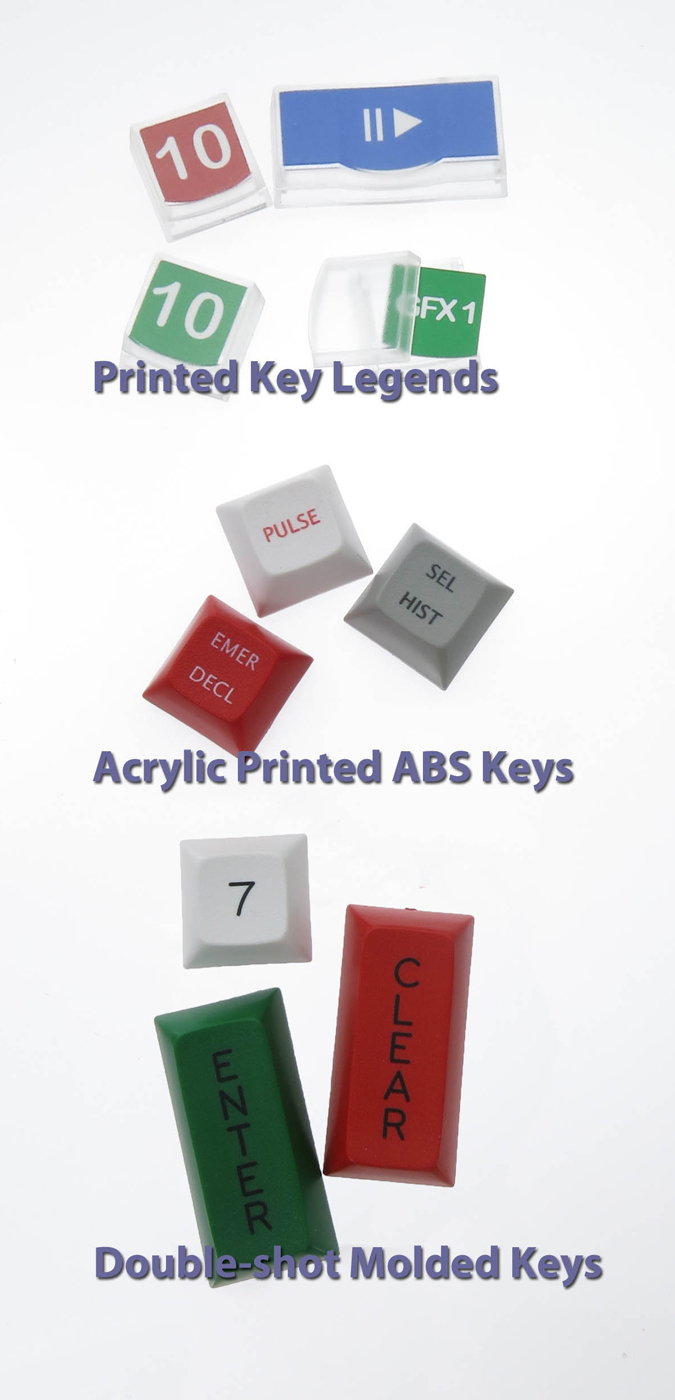

Finished key cap options to go on your X-keys.
- Width: 14" (27.9 cm)
- Depth (front to back): 7.3" (18.5 cm)
- Height: 1.8" (4.6 cm)
- Weight: 4.7 lbs (2.13 kg)
- Cord Length: 56" (1.42 m)
- Keyswitch Type: Full-travel stabilized rubber dome (higher force tactile), carbon on gold contacts, over 1 million operations
- Number of Keys: 124 single clear acrylic keys
- Actuation Force: Approx. 2.5 oz (72g) break-over, approx. 1.5 oz (42g) hold
- Number of Layers: 2 layers, user selectable toggle and/or shift keys
- Key Pitch: 19 mm (removable clear caps for easy labeling)
- Memory Capacity: Approximately 21,000 keystrokes or commands in onboard memory
- Backlighting: 128 blue and 128 red LEDs, individually addressable
- USB Type: USB 1.1 compatible through 3.0
- Connection: Wired USB 2.0 standard "A" plug
- Memory Type: EEPROM, non volatile memory (X-Keys retains memory for over 200 years)
- Power Supply: USB port, 5 V (D.C.)
NO backlight: 37 mA , Blue backlight full: 176 mA, Red backlight full: 265 mA, All backlights full: 358 mA
- Included in the Box:
- X-keysXKE-124 T-Bar USB Keyboard
- Tall and Wide Keycaps
- Keycap puller
- Blank Legend sheet
- Pre-printed Legend sheet
- 2 angled feet
- Compatibility - Operating system: To program the keypad: Windows 2000, XP, Vista, 7, 8, 10, Mac OS X (through 10.10)
Once programmed in Hardware Mode, the XKeys can be used with any OS supporting USB including Windows, Mac, Unix, and Sun
- Compatibility - Software (included): MacroWorks 3 (for Windows)
ControllerMate for X-keys (for Mac)
- Interface: USB
- Certifications: FCC class B, CE, RoHS, WEEE compliant
- Warranty: 1 year
