Product Summary |
---|
The Tempo Single Monitor Arm from KV Waterloo is a versatile, stylish monitor arm made of diecast aluminum for monitors ranging from 5 to 30 lbs. This arm uses a gas spring mechanism for smooth movement in all directions with 14.5” of vertical range and a maximum horizontal extension of 26.75” (from back of monitor mount to VESA plate). The lower arm is fixed at a 45° angle, ensuring that arm movement is not obstructed by other items on the desktop. The counterbalance on the arm has a numbered weight gauge (5 to 20 lbs) to provide an indication of the current counterbalance weight. Cable management is included, consisting of a hollow plastic tube and cable clips, and the Quick Connect Adaptor simplifies mounting and swapping monitors when needed.
There are two models of the Single Monitor Arm: a light duty model (7750) with a weight capacity of 5 to 20 lbs and a heavy duty model (7755) with a weight capacity of 10 to 30 lbs. Both models come with both clamp and grommet mounting systems. |
Images (Click on any thumbnail to view larger image) |
---|

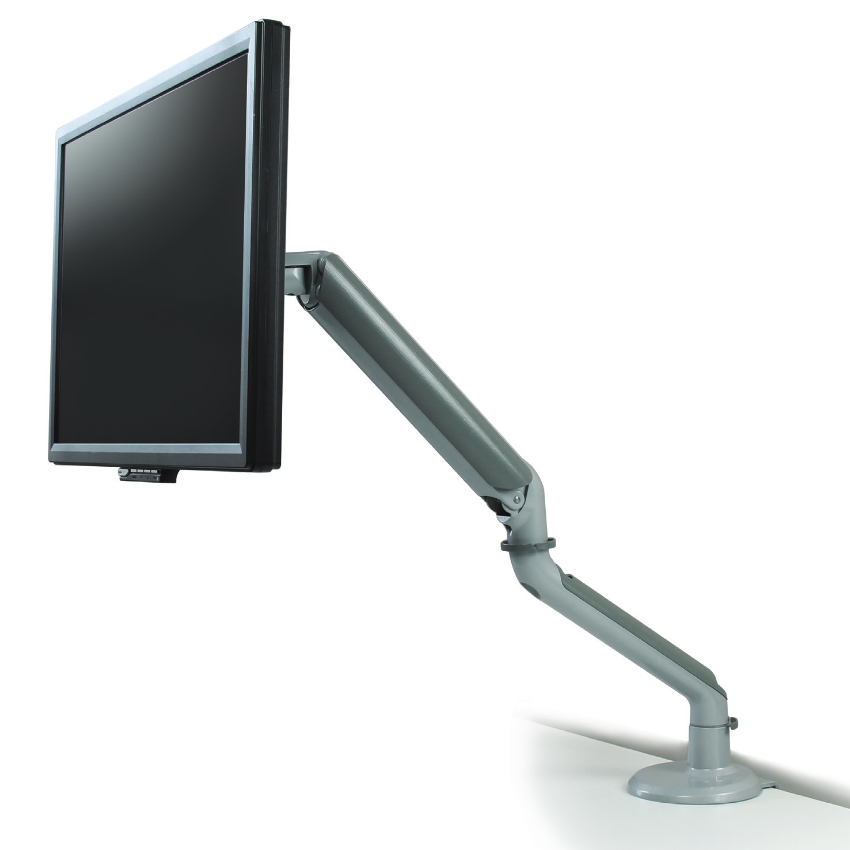

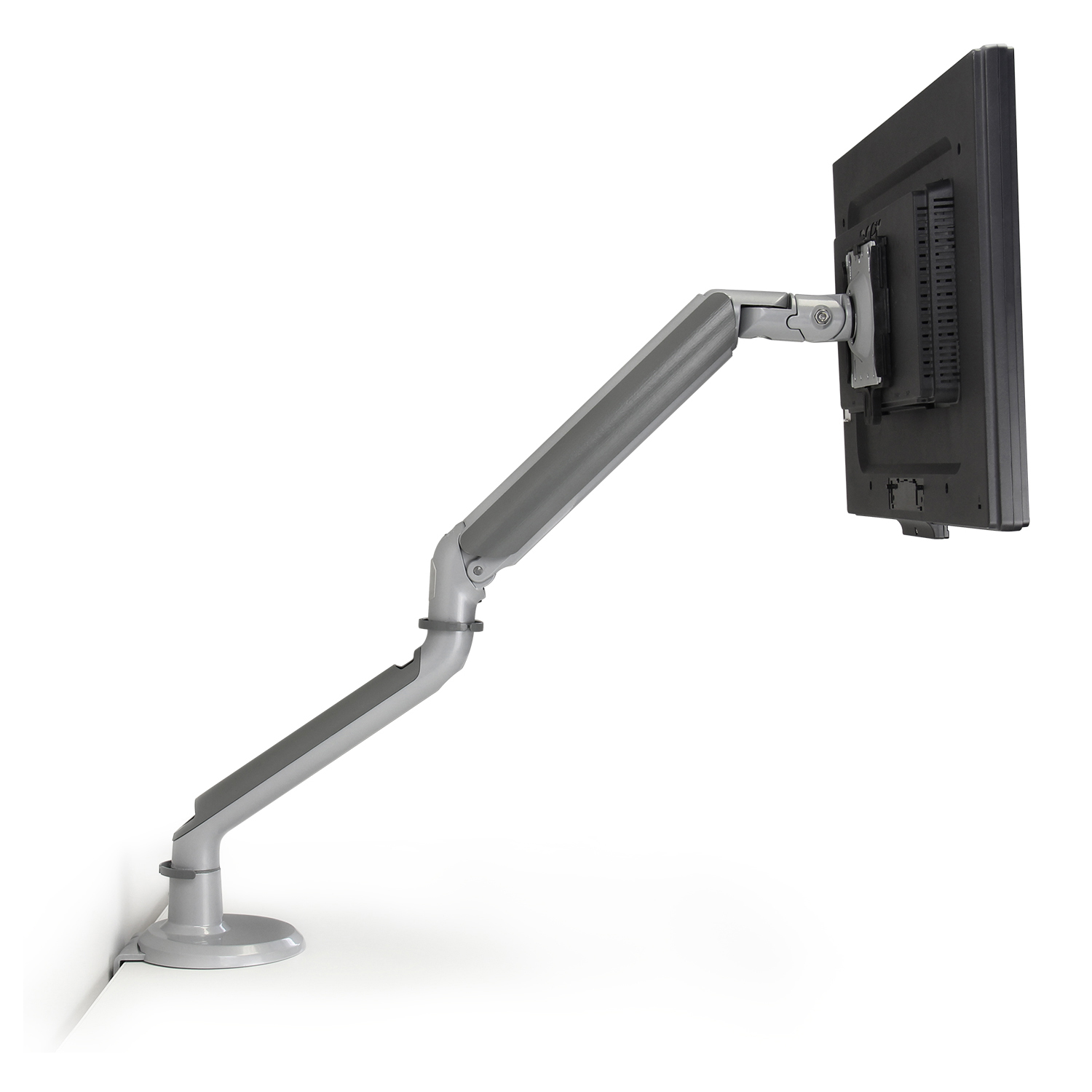

![Click to enlarge Tempo Single Monitor Arm](https://www.micwil.com/images/gallery/kv_waterloo_tempo_single_monitor_arm_g1_125.jpg) Tempo Single Monitor Arm

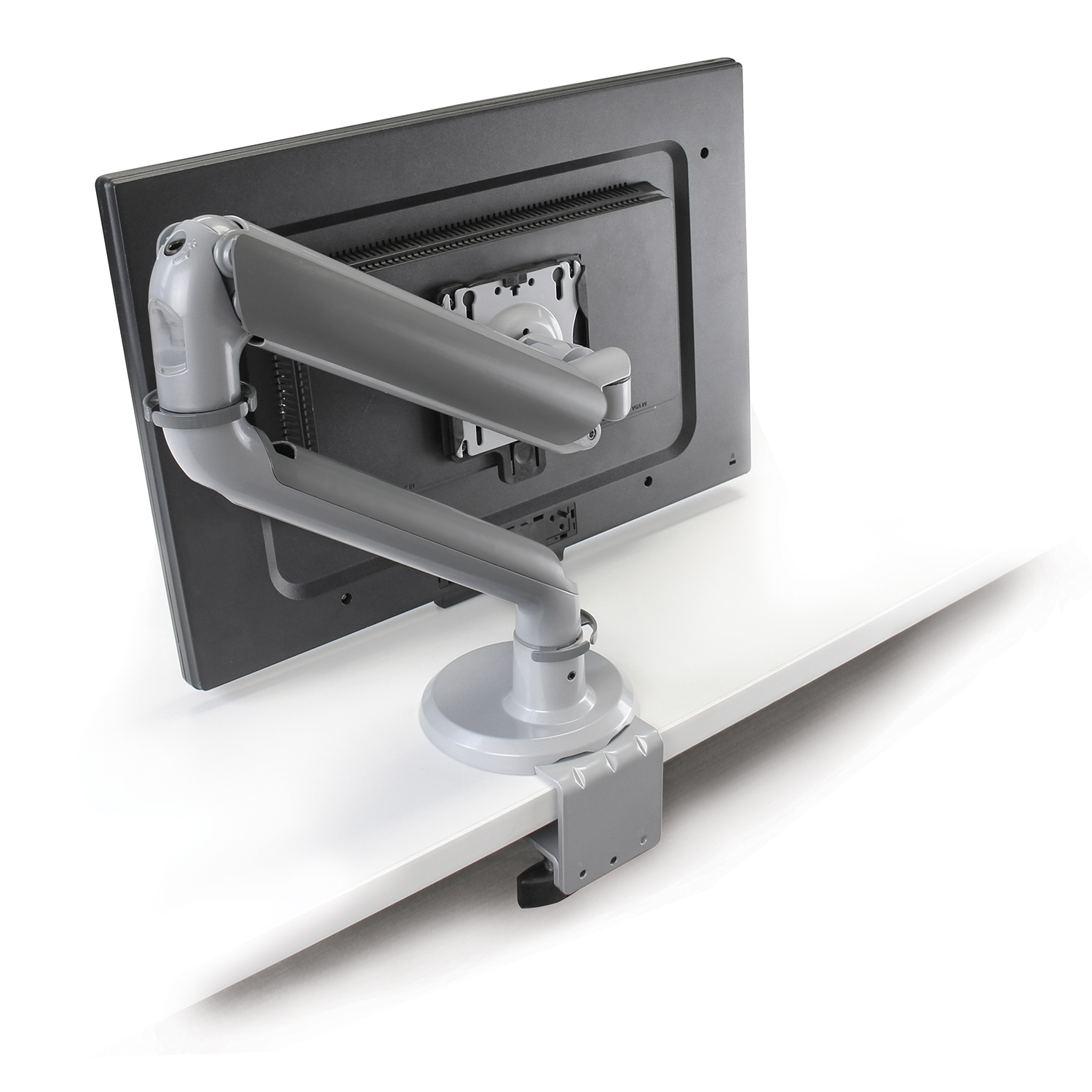

| ![Click to enlarge Tempo Single Monitor Arm – Back View Extended](https://www.micwil.com/images/gallery/kv_waterloo_tempo_single_monitor_arm_g2_125.jpg) Tempo Single Monitor Arm – Back View Extended

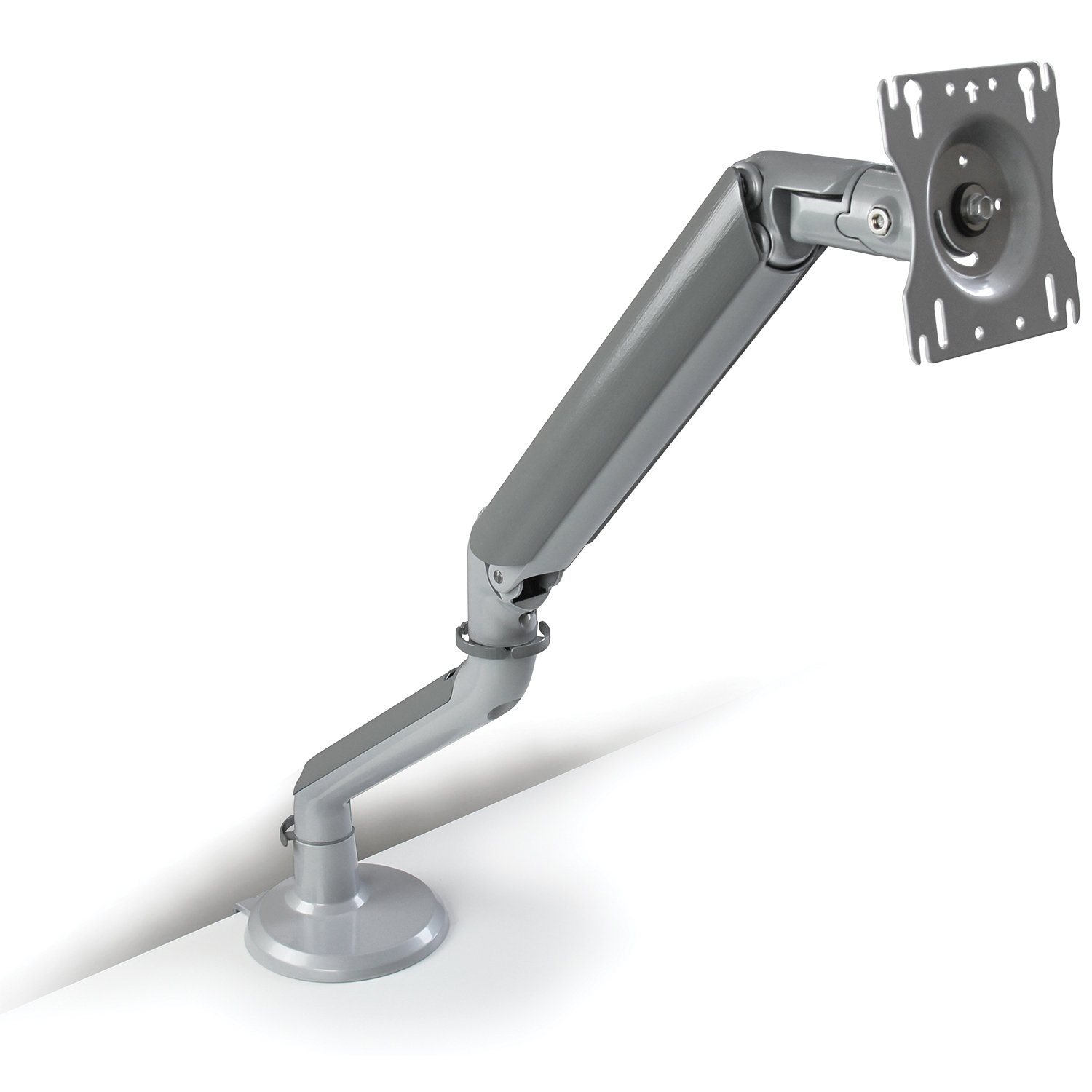

| ![Click to enlarge Tempo Single Monitor Arm – No Monitor Extended](https://www.micwil.com/images/gallery/kv_waterloo_tempo_single_monitor_arm_g3_125.jpg) Tempo Single Monitor Arm – No Monitor Extended
| ![Click to enlarge Tempo Single Monitor Arm – Compact Profile](https://www.micwil.com/images/gallery/kv_waterloo_tempo_single_monitor_arm_g4_125.jpg) Tempo Single Monitor Arm – Compact Profile

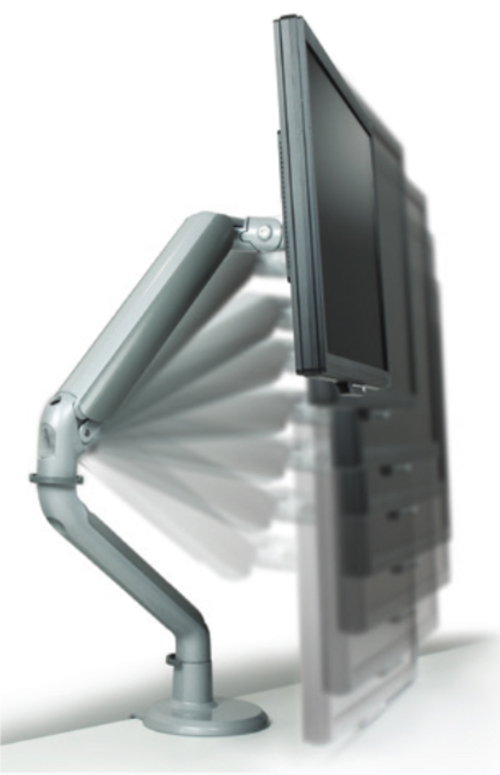

| ![Click to enlarge Tempo Single Monitor Arm – Height Range](https://www.micwil.com/images/gallery/kv_waterloo_tempo_single_monitor_arm_g5_125.jpg) Tempo Single Monitor Arm – Height Range

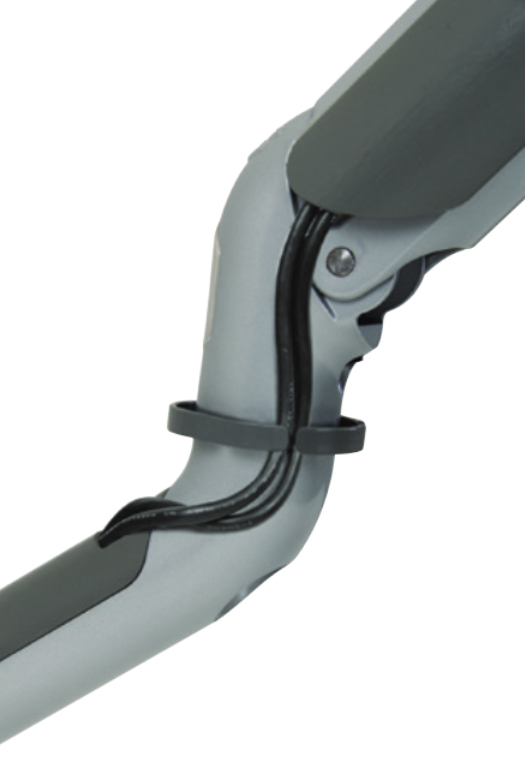

| ![Click to enlarge Tempo Single Monitor Arm – Cable Management](https://www.micwil.com/images/gallery/kv_waterloo_tempo_single_monitor_arm_g6_125.jpg) Tempo Single Monitor Arm – Cable Management

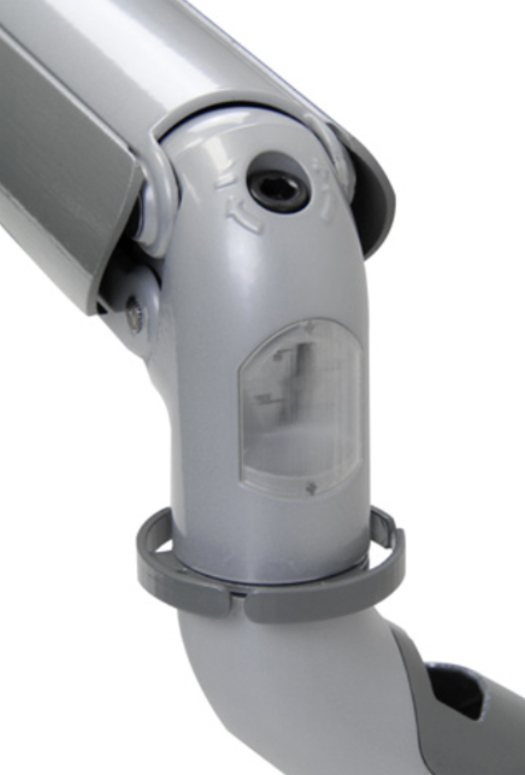

| ![Click to enlarge Tempo Single Monitor Arm – Weight Capacity Calibration Set-screw](https://www.micwil.com/images/gallery/kv_waterloo_tempo_single_monitor_arm_g7_125.jpg) Tempo Single Monitor Arm – Weight Capacity Calibration Set-screw

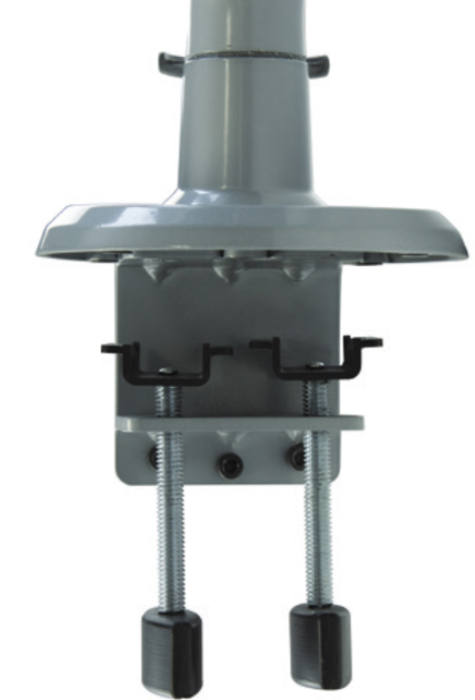

| ![Click to enlarge Tempo Single Monitor Arm – Clamp Mount](https://www.micwil.com/images/gallery/kv_waterloo_tempo_single_monitor_arm_g8_125.jpg) Tempo Single Monitor Arm – Clamp Mount
| |
|
Technical Specifications |
---|
|
Models |
---|
For pricing, availability or to order this product, visit our online store. |
Model # | Description |
---|
7750AS | Tempo Single Monitor Arm, Light Duty (5 to 20 lbs), Silver with Gray Highlights | 7755AS | Tempo Single Monitor Arm, Heavy Duty (10 to 30 lbs), Silver with Gray Highlights |
|
