The Savant Elite2 family of programmable USB devices is available in configurations supporting up to four switches. These switches can be used to reduce the strain on the fingers by offloading repetitive actions such as mouse clicks or keyboard shortcuts to alternate means (either one or both feet, non-dominant hands, etc.). Programmed to function as modifier keys (such as Shift, Ctrl, or Alt) the switches can also help to maximize productivity by allowing the user to continue typing without interruption and to access the modifiers near-simultaneously with the feet.
The Savant Elite2 Control Module from Kinesis Corporation is a programmable interface which can accept input from foot pedals, assistive switches, or hand triggers. It is ideal for situations where there may be a need to have multiple switches spread over an area or where there is a desire for the smallest possible pedal footprint beneath a workstation. The 9.6 foot long USB cable also permits the control module to be positioned at a distance from the computer.
Two models of the Savant Elite2 Control Module are available. One features 2 input jacks for attaching the external switches and is pre-programmed to perform left and right mouse clicks. The second model is equipped to accept up to 4 switches and/or pedals and is preprogrammed to perform the left and right clicks as well as Backspace and a "Thank you," macro. Of course, these can easily be reprogrammed to the specific needs of a user.
The Savant Elite2 Control Module also has driverless programming for a wide range of operating systems, including Windows, Mac OS X, Android, Linux, or Chrome. Modules come preloaded with Windows and MAC versions of the SmartSet App, a visual programming interface to facilitate quick and simple programming in either of these environments. A simple text editor and be used to program for other alternative operating systems.
Check out our range of switches in the Switches category.
Reduces Strain on Fingers - The highly repetitive action associated with mouse clicking can greatly increase finger fatigue and the risk of developing joint pain, especially for those who use non-ergonomic mice. A foot pedal or other switch accessory can address these concerns by moving the required effort to the feet or other activation points.
Reduces the Potential for Trigger Finger - "Hovering" a finger over a mouse button in anticipation of the next click can lead to the development of a condition known as "Trigger Finger." By transferring the left click--the most common mouse action--to an alternate switch, the user can significantly reduce the risk of developing this problem. Activating the left click by an alternative input device also allows the entire hand to relax more completely, which may lead to better cursor control.
Reduces Awkward Reaching - Hands and fingers can be overstressed by constantly performing awkward combination keystrokes or by straining to reach a key on the outer edges of the keyboard. By programming an alternate switch to perform the same functions with a single press of the pedal, users can give their fingers and hands a rest while at the same time potentially increasing productivity.
Comfortable Switch Positioning - The Savant Elite2 Control Module permits alternative switch(es) to be positioned far away from the control module for optimal positioning for ease of access.
Pre-Programmed Default Actions: The Savant Elite2 Control Module comes pre-programmed to activate right and left mouse clicks as well as additional functions on the 4-jack model. For many users the pain associated with mousing is from the action of clicking, not from moving the mouse. The Savant Elite2 resolves this problem by relocating the clicking action to an alternative input device.

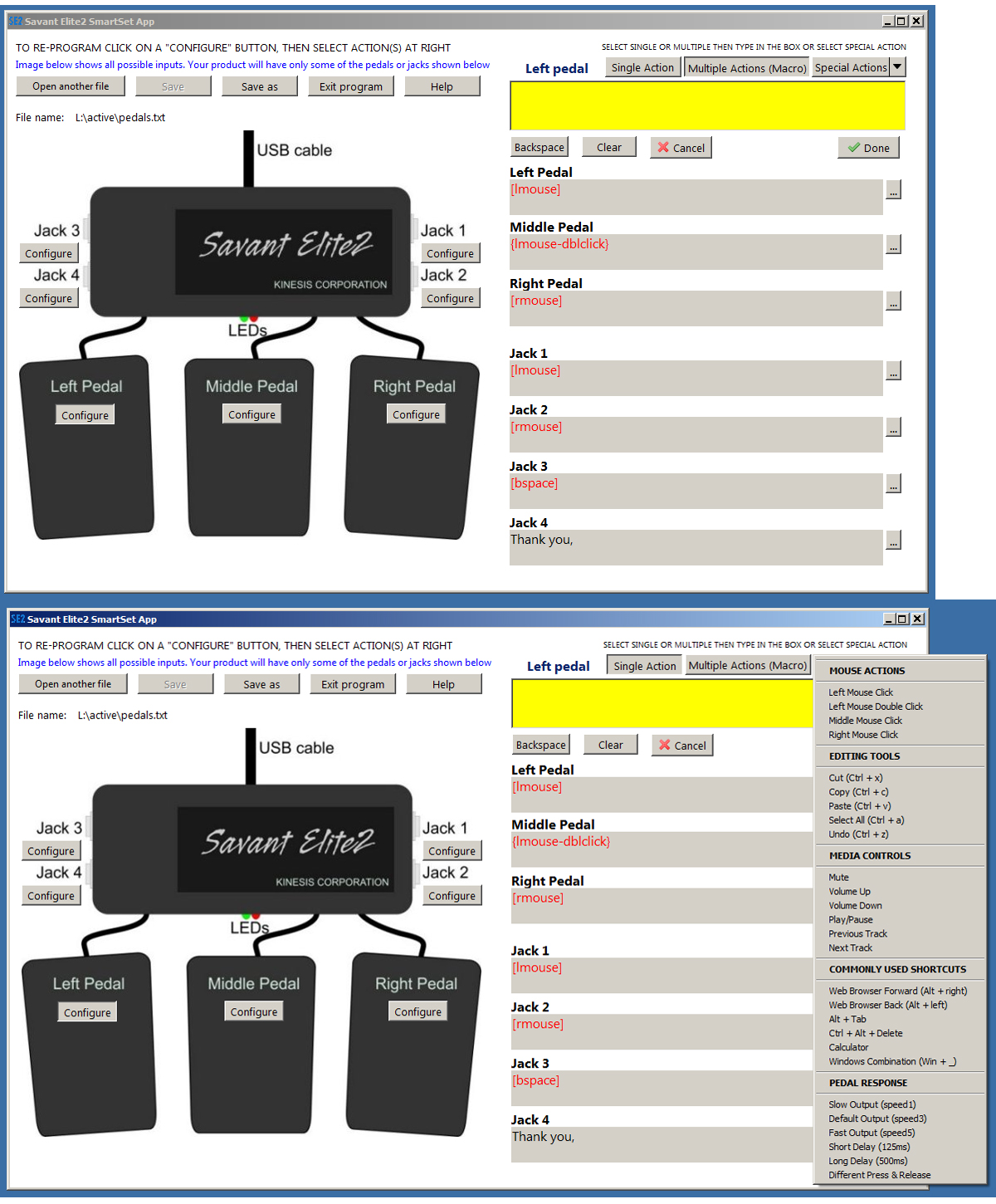

Driverless Programming: The Savant Elite2 Control Modules can now be programmed using the convenient SmartSet App visual interface which comes preinstalled. This App offers an intuitive interface for quick programming of all functions available on a given device. Since the SmartSet App loads directly from the device there is no need to install a driver or programming software. Both Windows (7, 8 & 10) and MAC (OS 10.5 and newer) versions of the software are preloaded.
Double-Click Option: All Savant Elite2 products now support the programming of a "Double Click" option.
Programmable Keys or Mouse Actions: The Savant Elite2 line of devices can be custom programmed to perform virtually any combination of mouse or keyboard actions, including even complex multi-key macros.
Note: It is not possible to program a drag lock toggle with the module (i.e. the footswitch must be held down in the same way you hold down your left mouse button to highlight and perform drag and drop operations).
Macro Programming: Macros are a great productivity tool for generating commonly used phrases, or combinations of key actions and modifiers. With a memory capacity of 1200 characters the Savant Elite2 will support the most complex macros.
Images (Click on any thumbnail to view larger image)

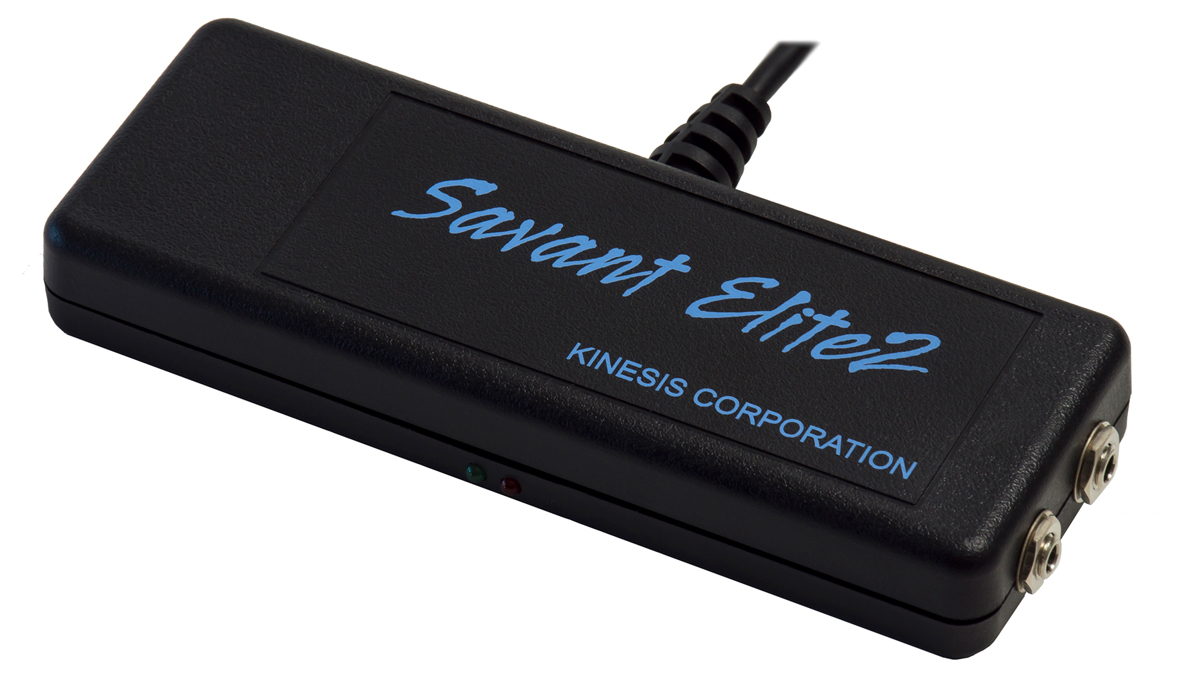

Savant Elite2 Control Module

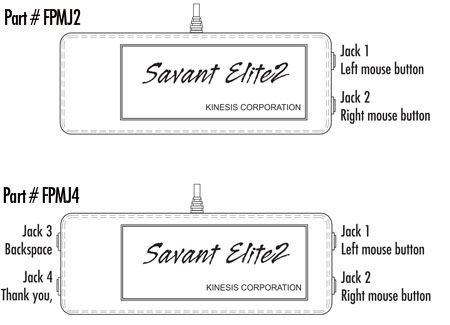

Savant Elite2 Control Module - Preprogrammed Commands
Compatibility: Windows, Mac OS X*, Android, Linux, or Chrome (See "Driverless Programming" under Features for more details)
* Macintosh OS X notes: OS X doesn’t support middle mouse button without using a third party driver such as that found at www.usboverdrive.com. Also, modifier actions from one USB device cannot modify the input of a second USB device due to limitations designed into the Apple operating system (ie Shift, Control, Command, or Option keystrokes programmed into the foot pedal cannot modify the input of a separate USB keyboard or mouse. However, a key sequence like ‘Cmd-W’ or ‘Cmd-Shift-left arrow’ will work on a Macintosh if the entire sequence of keystrokes has been programmed into the foot pedal).
Users of earlier Savant Elite2 products (with Serial numbers 30000 and up) can download SmartSet App directly from the manufacturer's website. Savant Elite2 products with serial numbers lower than 30000 require this earlier version of the SmartSet APP.
Users of earlier versions of the Windows or MAC operating systems, or of alternative OS such as Linux, Android or Chrome are still able to fully program the footswitches by editing a simple text file. An Explorer window displaying the Control Module as a flash drive (identified as: Kinesis FP) is automatically loaded to the computer when the unit is put into programming mode. The pedals.txt file stored here can be edited to perform the desired keyboard or mouse action, and then saved to the unit. In addition, multiple files can be created for specific uses, and programming files created on any system can be saved to the foot pedal flash drive. Download the Savant Elite2 Manual for detailed instructions on how to program by this method.
Warranty: 1 year
Package Contents: Savant Elite2 Control Module, User's Manual
