Goldtouch Numeric Keypad for Macby Key Ovation
| Ergonomic Benefits Additional Resources Usage Tips Accessories |
This keypad uses mechanical keyswitches and features a 'calculator' style layout. Instead of the traditional double-wide '0' key, 2 single width keys for '0' and '00' are located on the bottom row. Calculator functions such as MS, M+, MC and MR will make using the calculator program built into Windows easier.
!!! Do not attempt to plug a Goldtouch keyboard into one of the USB ports located on the sides of the USB keypad, as these ports are intended only for low power devices, like mice or USB storage drives. Doing so will cause the keyboard and keypad to malfunction. !!!
- The keypad has all of the essential keys, such as:
- Tab, Escape, Backspace
- Frequently needed symbols such as , ( ) % $ Y L E c \ ;
- Calculator functions such as: MS M+ MC MR will make the use of MS calculator
much easier as will the Clear (Esc) CE (Del) Backspace +/- and =
- The inclusion of 00 will help your efficiency when working with dollars
- Important tech note on Goldtouch products:
Laptop with a Docking Station:
If you are using a laptop through a Docking Station, please be sure to connect
the keypad directly into an available USB port on the computer itself the first
time. Once you have followed the instructions below, you can connect the keypad
through the Docking Station for use.
Multiple computers via KVM switch:
If you are connecting two or more computers through a KVM switch, be sure
to install the keypad onto each computer that will be used before connecting
it to the KVM switch. A KVM switch will not allow the drivers to install automatically;
therefore it is necessary to connect the keypad directly into each computer
for proper installation the first time. Be sure that your KVM switch is for
USB devices, not PS/2.
Desktop or Laptop with limited USB input ports:
Determine the number of available USB ports on your computer. You may want
to add a USB Hub or port expander to accommodate multiple devices like mice,
printers, keyboards, numeric keypads, PDA's, etc.
Connect the keypad directly into a USB port on the computer, power up the computer
and allow Windows to detect the device and install the drivers. Do not attempt
to install via hub or switch, as the keypad must be connected directly to the
computer for correct driver installation. You may see a window that tells you
the hardware is installed and ready for use when it is done.
!!! Do not attempt the plug a Goldtouch keyboard into one of the USB ports
located on the sides of the USB keypad, as these ports are intended only for
low power devices, like mice or USB storage drives. Doing so will cause the
keyboard and keypad to malfunction. !!!
|Images (Click on any thumbnail to view larger image)|

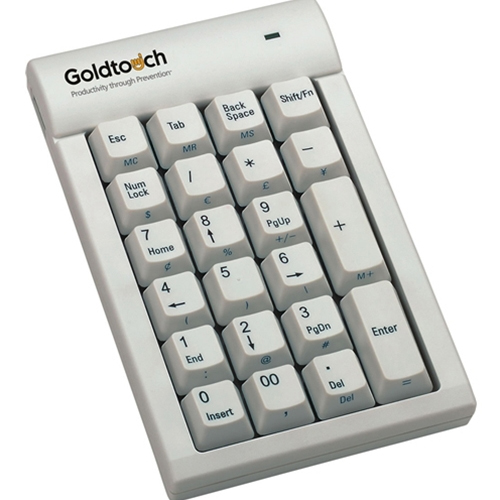

Goldtouch Numeric Keypad for Mac - white model

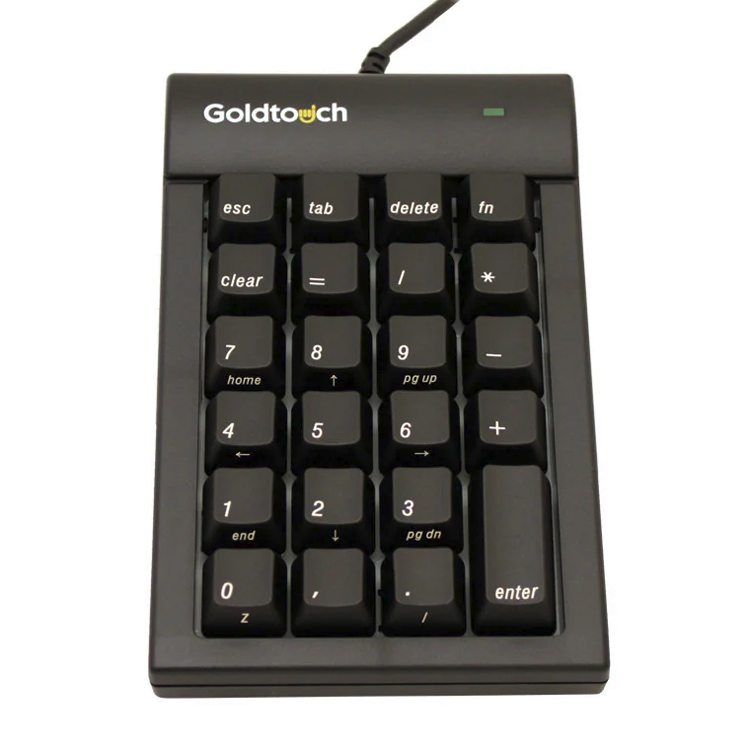

Goldtouch Numeric Keypad for Mac - black model
- Width: 4.0" (10.2 cm)
- Depth (front to back): 6.0" (15.2 cm)
- Height: 1.0" (2.5 cm)
- Weight: 1.0 lb (454 grams)
- Colours: Available in black or white
- Number of keys: 22
- Keyswitch type: Mechanical (Cherry light
- Keyswitch rating: 20 million actuations
- Operating force: 50 grams to 55 grams
- Pre-travel: 2 mm to 6 mm
- Total travel: 4 mm to 5 mm
- Tactile force: 2.3 oz ± 0.7 oz
(65 grams ± 20
- Compatibility: Mac
- Interface: USB
- Warranty: 1 year limited warranty.
|For pricing, availability or to order this product, visit our online store.|
|GTC-MACW|| Goldtouch Numeric Keypad, White|
|GTC-MACB|| Goldtouch Numeric Keypad, Black|
