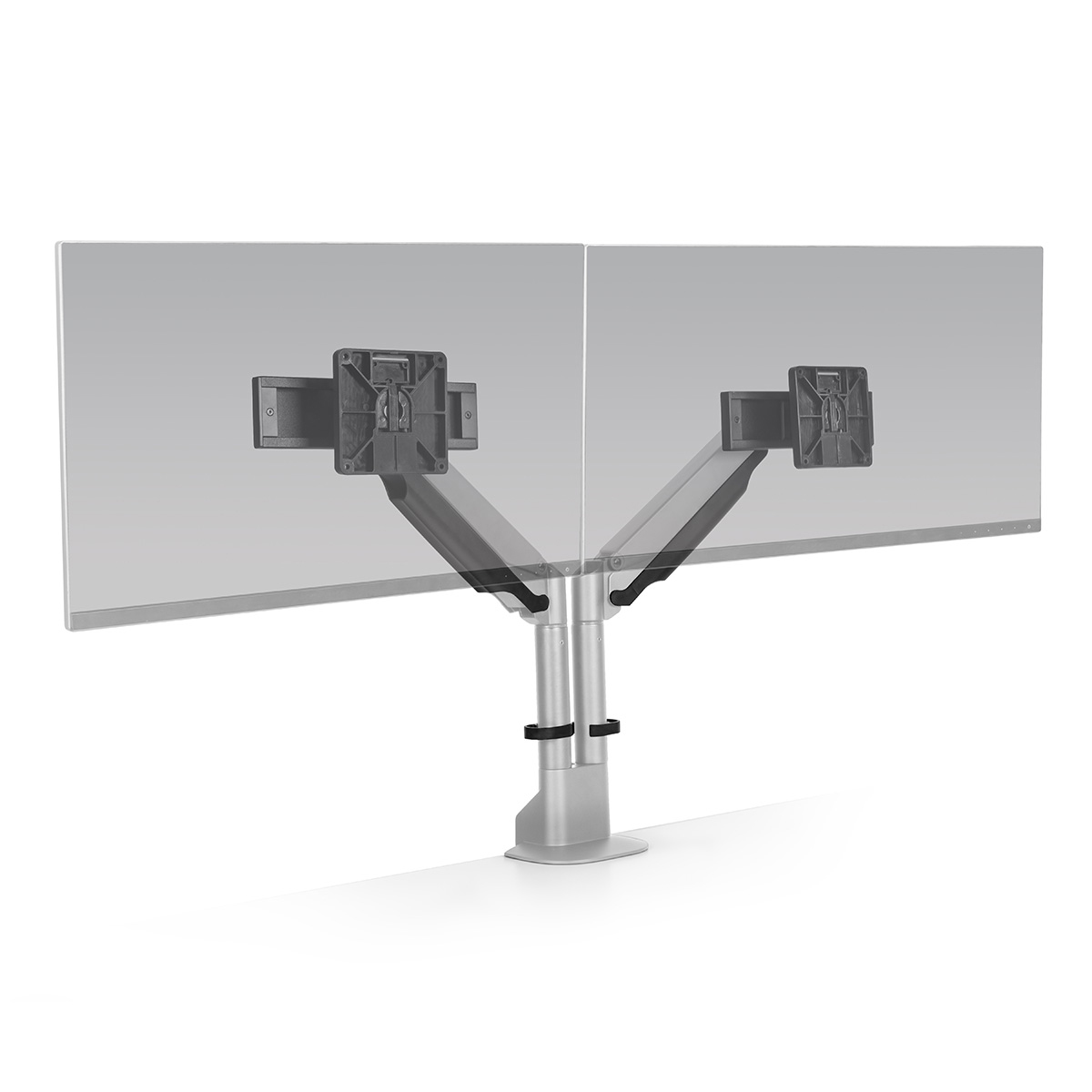

The E2 Dual Monitor Arm features a fresh modern stylistic presentation from Innovative HAT. It offers valuable ergonomic capabilities - effortless height adjustment, articulation at two points, and full tilt and pan capabilities - hallmarks of Innovative HAT monitor solutions. These are all backed with a 10-year warranty. This dual monitor arm has two separate gas cylinder arms on a dual mount for independent positioning of the monitors. Each arm articulates from the elevated primary pole, offering a full 13" of vertical adjustment - from 5.5" to 18.5" over the mounting surface.
The E2 Dual arm features robust construction for durability and employs a gas-cylinder lift mechanisms that result in virtually effortless height adjustment. The articulating joints are machined to ensure monitor stability yet permit adjustment to be done with ease. Equipped with Quick Release 75/100 mm VESA mounts, the E2 can handle monitors from 2.2 to 20 lbs (screen size up to 27" for each monitor). The VESA mounts are mounted to with lateral slides that facilitate screen alignment/centering when the arms articulate forward. For ease of installation it also includes an easy-to-install mount that secures from the top of the desk, offering both clamp and grommet-mount options. The range of features on the E2 Dual Monitor Arm makes it an ideal solution for applications where a substantial vertical adjustment range is required but where a shorter horizontal reach is suitable (such as shallower 18"-24" desk surfaces).
Reduces the Risk of Neck Injury - A primary risk factor for injury in an office setting is an improperly positioned monitor. A good articulating monitor arm will help eliminate that problem by allowing height adjustment for the monitor relative to the surface on which the keyboard and mouse are situated. The E2 Dual Monitor Arm provides 13" of vertical adjustment, making it easier to adjust the monitor height to an optimal position. SPECIAL NOTE FOR THOSE WITH MULTIFOCAL OR PROGRESSIVE LENSES: As those with multifocal lenses rely on the lower portion of their glasses for "near" vision, they generally require the monitor to be positioned at a much lower height than those with no glasses or who only have single-vision lenses. Failing to address this will force them into an uncomfortable extension at the neck, as they tilt their head back in order to be able to view out of the lower portion of their corrective eyewear. Those with multifocal lenses may be able to position their monitors far enough away for best viewing at the intermediate range. Doing so can mitigate the neck extension as it may eliminate the need to tilt the head.
Optimizes the Viewing Angle - Monitors are best viewed when the screen is parallel to the face. The ideal angle of the monitor is not necessarily perpendicular to the desk in all cases, however, since some may feel more comfortable slightly tilting their head forward, especially when working in a standing position. Note: As the head tilts forward, there is typically increased weight and load placed on the muscles in the neck, and as such any flexion should be limited to no more than 10 degrees.
Facilitates Virtually Effortless Movement - The E2 Dual Monitor Arm uses a gas spring to counterbalance the effects of gravity, allowing individuals to adjust their monitor both up and down using their fingertips. This ease of adjustment (regardless of whether the monitor arm is fully extended or contracted) removes a potential obstacle for those who would otherwise be unwilling to adjust their monitor as needed. This technology is superior to mechanical spring mechanisms which cannot provide consistent linear counterbalance through the full range of the arm.
Increases Desktop Space - By elevating the monitor above the worksurface, previously inaccessible desktop space is made available for storage and other office accessories (phones, calculators, etc.).
Eliminates Glare - Adjusting the vertical and horizontal angle of the monitor will allow individuals to eliminate glare when viewing the monitor.
Helps Maintain Good Posture When Seated - When a monitor is too low or high, people may choose to adjust the position of their torso instead of, or in addition to, their neck in an attempt to accommodate incorrect monitor height. This will often result in adopting a leaning forward posture, shifting them out of the ideal posture in the spine, and losing any potential lumbar support that their chair provides. The correct monitor height may prevent this risk factor from arising.
Accommodates Working in Different Postures - Movement is important! When a worker changes their posture between standing, lean-into, sitting, or leaning back in their chair the optimal position for their monitor(s) will change accordingly. The wide range of movement which the E2 Dual Monitor Arm provides will accommodate these new parameters, enabling them to correctly position their monitors for optimal viewing from any chosen posture.
Allows Multiple Individuals to Share Information Easily - In some office environments workers need to share screen information with clients and/or co-workers, but this can be awkward or inconvenient when the monitor is on a stand and cannot easily be moved or oriented towards another person, even one sitting at the same desk. An articulating arm can easily solve this problem because the arm and monitor are easily pivoted to face even someone on the opposite side of a desk.
Gas Spring: The gas cylinder completely counterbalances the weight of the monitor and arm, counteracting the effects of gravity and making height adjustment almost effortless.

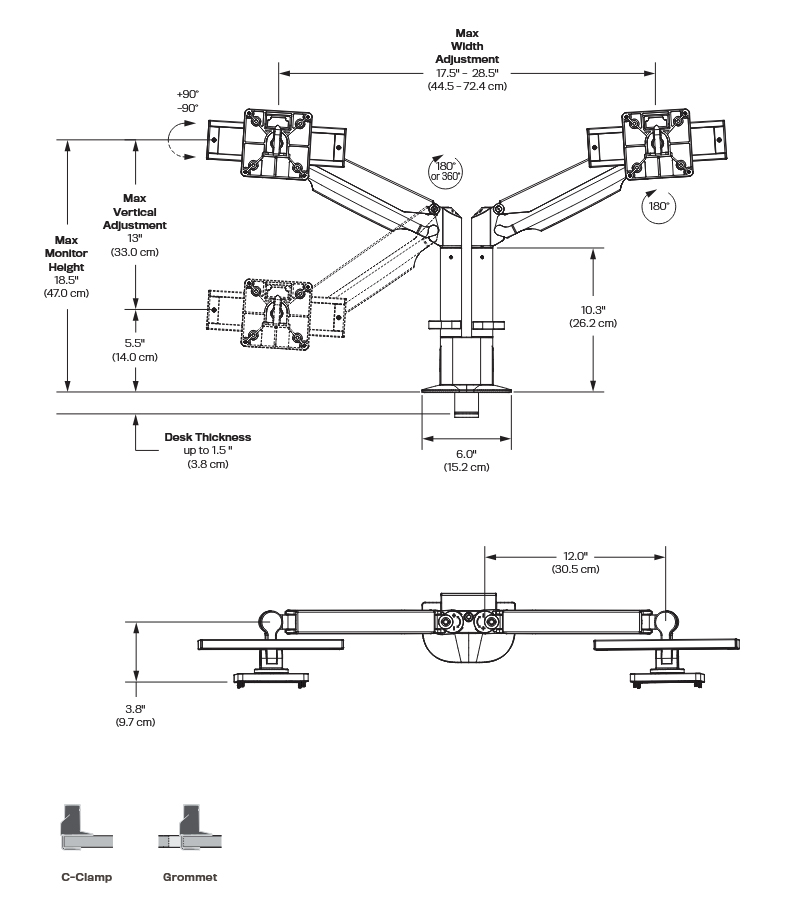

Vertical Range: The E2 Dual Monitor Arm offers a full 13.0" of vertical range which should accommodate the viewing needs of almost any worker. The bottom of a 23" diagonal monitor can be brought down to the mounting surface, while at maximum elevation the top of the same monitor would be almost 25" above the mounting point.
Width Adjustment Range: The E2 Dual Monitor Arm provides 17.5" to 28.5" of horizontal width adjustment, allowing monitors of various sizes to be brought closer or further apart in the same visual plane.
Top Down Mount: The E2 base is secured from the top of the desk, eliminating the need to crawl below when mounting the arm. Both edge clamp and grommet mount can be done.
Monitor Tilter: The monitor tilter mechanism provides 180° of tilt adjustment at the head or wrist of the arm.
Monitor Rotation: The monitor tilter mechanism provides 180° of monitor rotation allowing rotation from landscape to portrait orientation, even upside down (if required).
Arm Rotates at 2 Joints: The E2 Dual Monitor Arm provides rotation at two joints, the base or "shoulder" and the end or "wrist". The base can be rotated either at 360° or set to a more limited 180°. At the tilter the rotation is +/- 90°. This yields versatile flexibility and articulating capabilities, allowing positioning of the monitor at most desired positions.

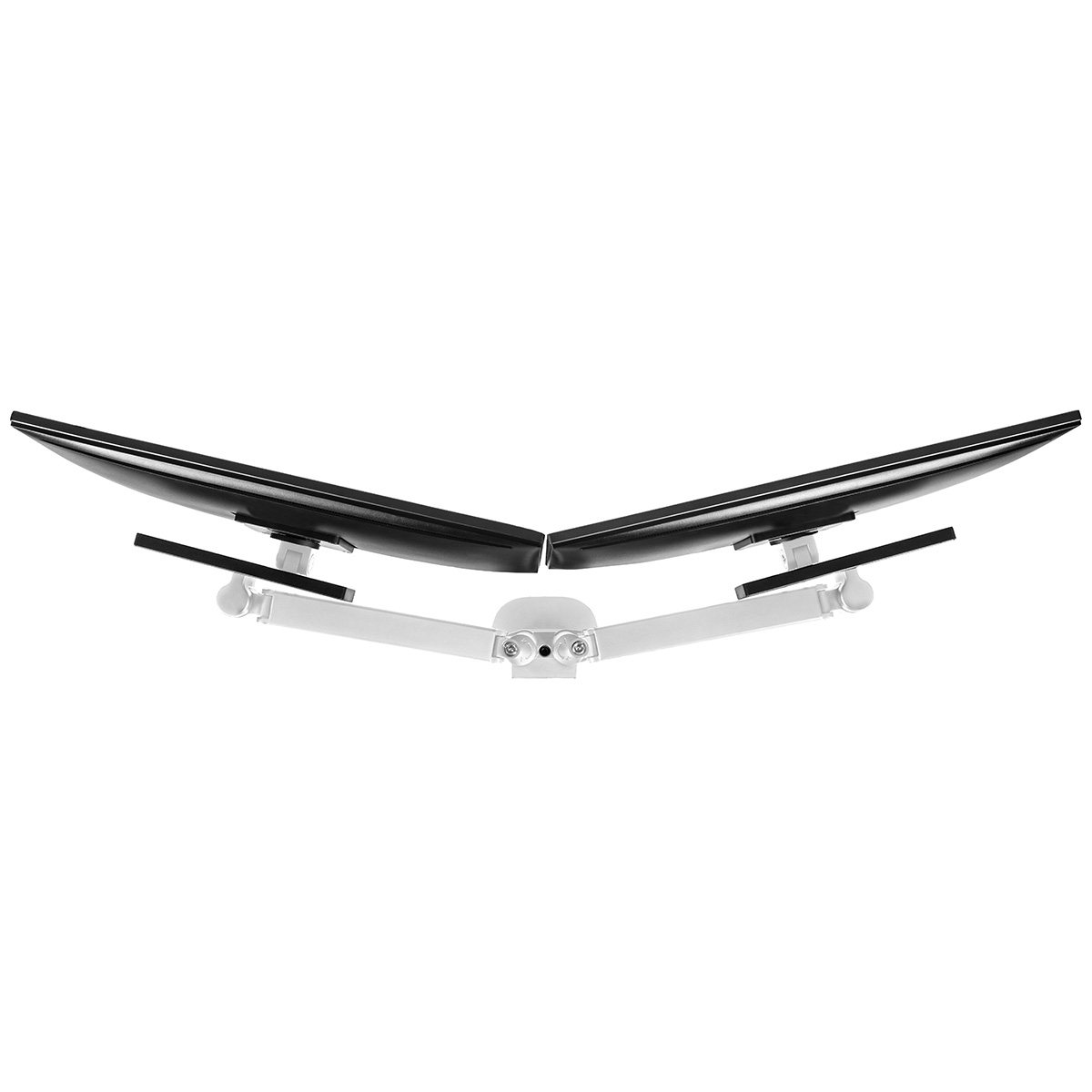

Compact Storage: When desired, the arm folds up to occupy only 3" of space, freeing up the entire desk for other activities.

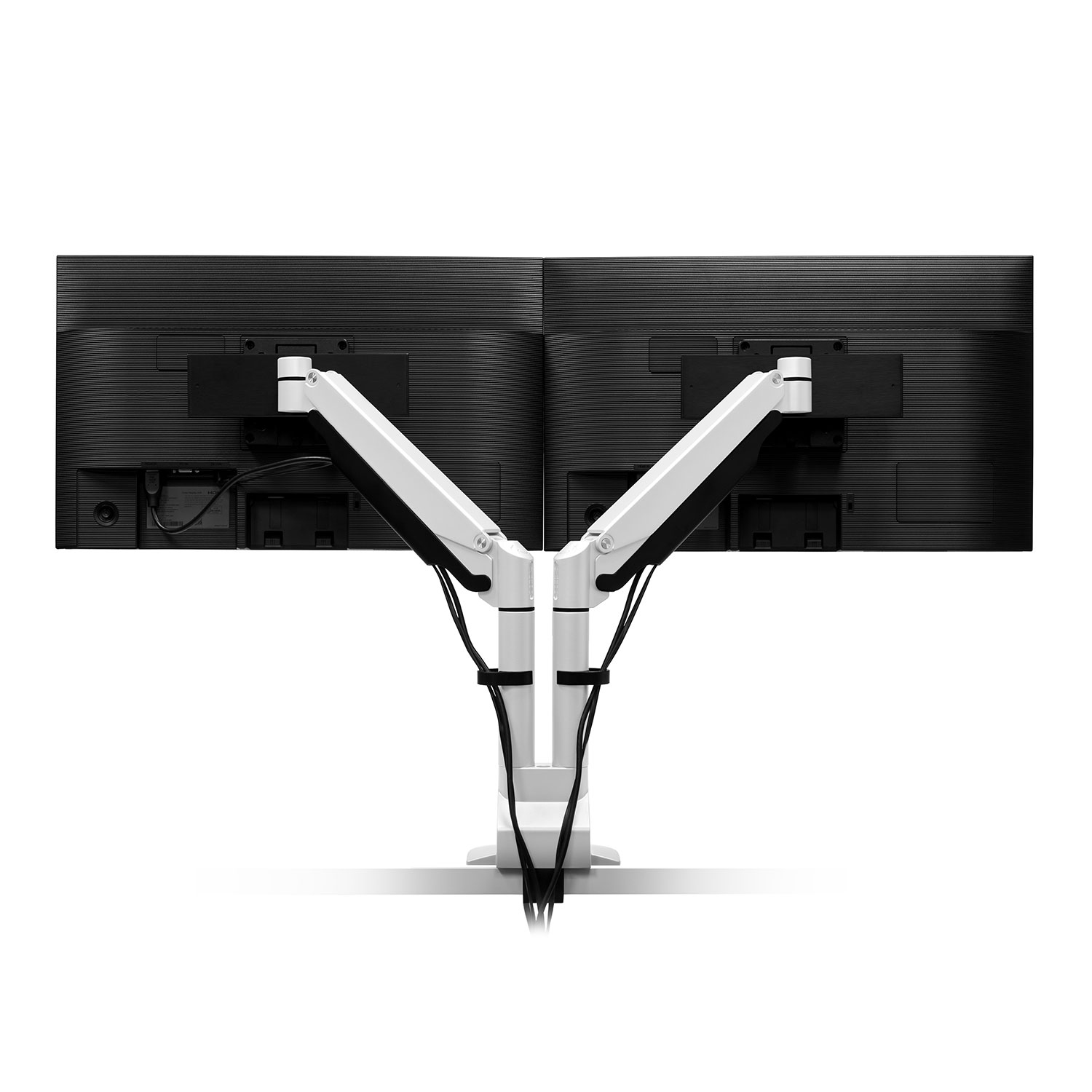

Cable Management: External and built-in Cable Guides provide cable management to prevent cables from dragging on the desk.
Images (Click on any thumbnail to view larger image)

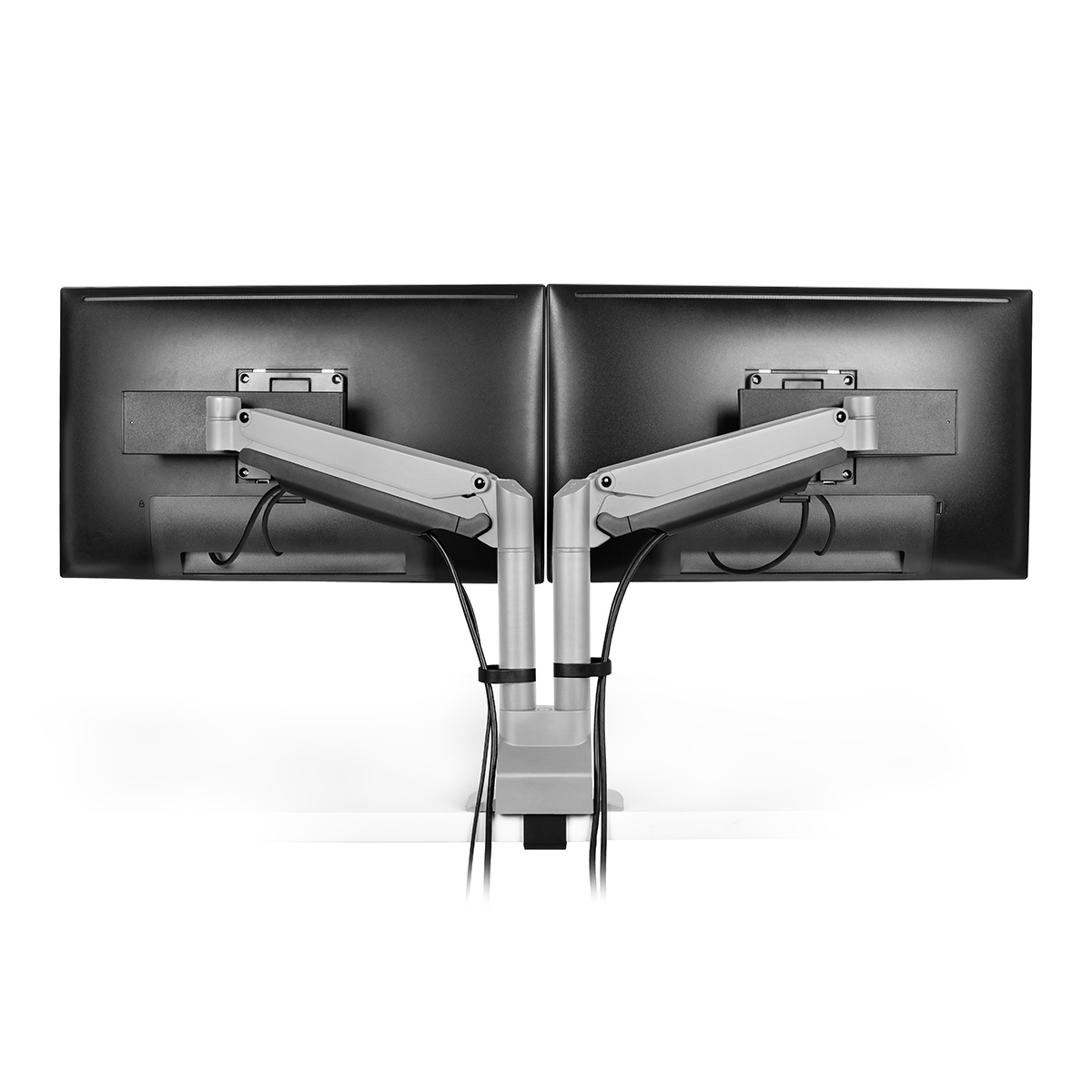

Cable Management: Integrated cable management system keeps work surface free of annoying cable clutter

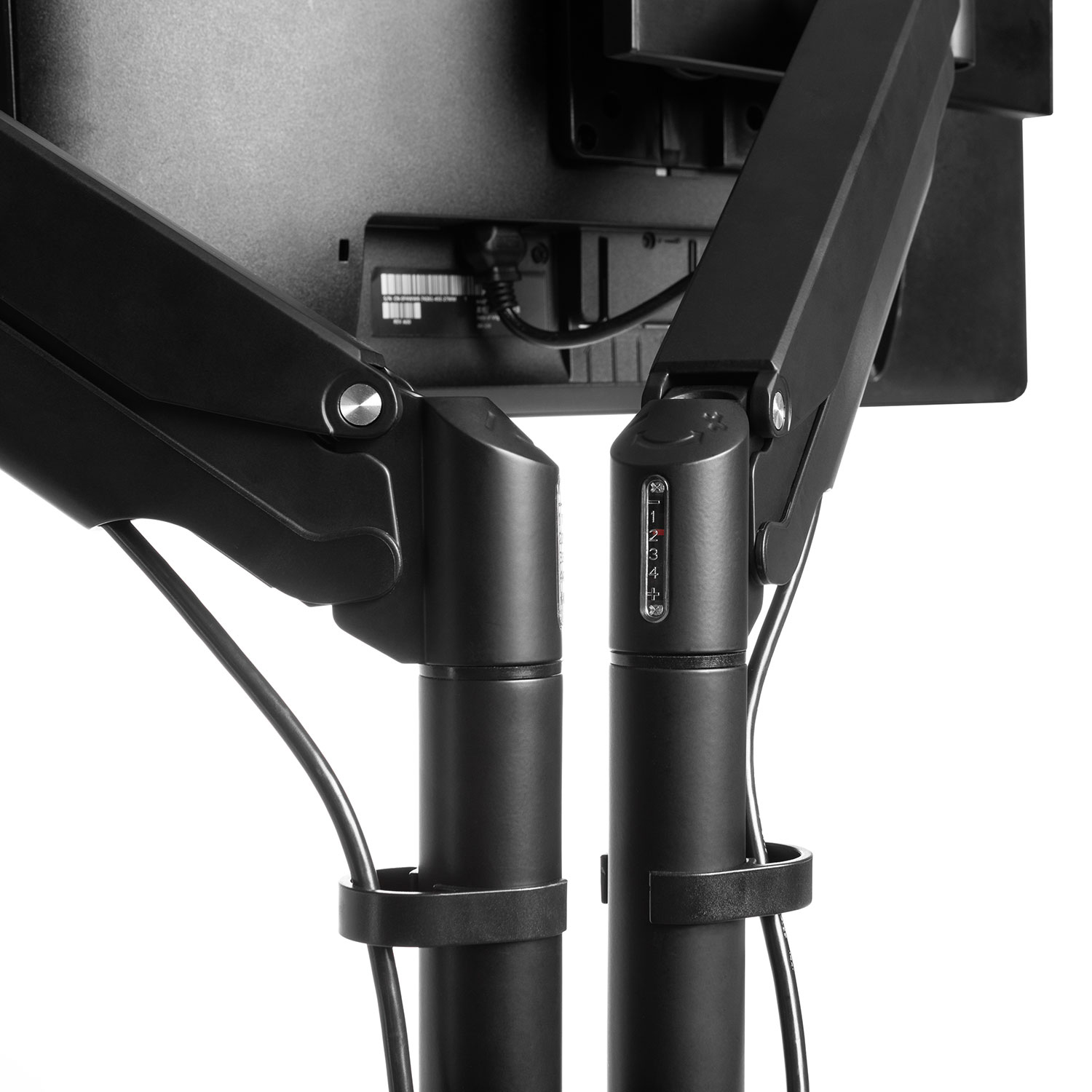

Adjustment Mechanism: Gas cylinder "floats" monitor above desk - monitor can be instantly raised or lowered with minimal effort. Lifting capacity can be calibrated to monitor weight.
Articulation: Rotates at 2 joints: 180° or 360° at base, and +/- 90° at tilter joint.
Monitor Tilt Range: Up to 180°
Weight Rating: Rated for monitors from 2.2 lbs (1.0 kg) to 20 lbs (9.07 kg)
Monitor Orientation: Rotates from landscape to portrait
Storage Depth: Folds up to occupy just 2.9" (7.3 cm) of space.

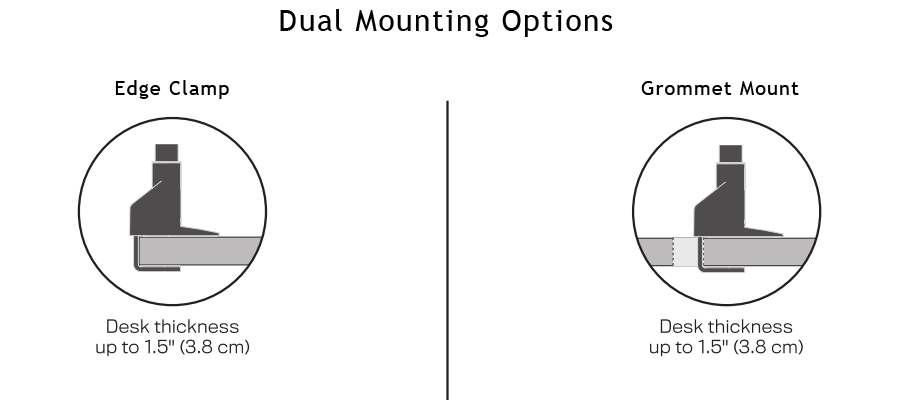

Mounting Options: Edge Clamp or Grommet (mount secures from top of desk)
Colours: Available in Black or Silver
Compatibility: Quick Release 75mm or 100mm VESA mount
Warranty: 10 years
Package Contents: E2 Dual Monitor Arm, 2-Way Top Down Mount, Assembly Hardware, Instructions
Choose an Arm with an Appropriate Weight Capacity | Before purchasing your monitor arm, investigate the weight capacity of the arm so that the weight of your monitor is ideally in the middle of that range. For example, the weight capacity of the E2 Dual Monitor Arm is 2.2 to 20 lbs. The midrange weight is therefore 11 lbs. If your monitor happens to be about 11 lbs, the E2 Dual Monitor Arm should work fine for you. The closer to the midrange is the better. If you have not yet purchased a monitor or monitor arm, research your options and choose an arm that will work for the monitor you want. Obviously, if you already have an arm and not the monitor, you will have to choose a monitor with an appropriate weight without its stand included. In addition, you will have to choose a monitor that can be mounted on an arm with an acceptable hole pattern for mounting with screws. For the E2 Articulating Monitor Arm, the monitor must have a hole pattern in the back side which is either 75 mm x 75 mm or 100 mm x 100 mm square. Otherwise, you may require a special adapter plate.
Select the Optimal Mounting Location | Since the E2 Dual Monitor Arm comes with a 2-in-1 configurable top down mount, you have two options when it comes to mounting your monitor arm. Most people choose the desk clamping option but this only works if your desk has a lip on the mounting side and average depth (24-30"). Otherwise, a grommet mount is the next best option. You need a grommet hole of at least 2.25" diameter for the grommet mount to work, whereas the through mount requires that you drill a small hole in the desk to bolt the mount through the desk to secure it. You may want to roughly position the mount in different locations at first to get an idea of where the movement of the arm is optimal and then decide on which mounting option works best at that location.
Adjust the Counterbalance Mechanism with Monitor Attached | After the E2 Dual Monitor Arm has been mounted in its optimal position, you will need to attach the monitor so that you can properly adjust the counterbalance mechanism. This will ensure that the monitor moves up or down effortlessly. Follow the manufacturer's instructions on how to do this, because if done improperly there may be damage to the balancing system. For the E2 Dual Monitor Arm , counterbalancing is done when the arm is extended or pushed down so that both arm segments are parallel to the desk. All hardware to do this calibrating is provided with the arm. After mounting, calibrating the counterbalance is the most critical step in installing your monitor arm properly. Once done, you are almost ready to use the monitor arm (see next tip).
Become Familiar with the Adjustable Tension Points on the Joints of the Arm | To get the best movement out of your monitor arm, find all the critical joints where you are able to adjust the tension. These can be located using the Instruction Manual and are identified by the presence of a set screw. Allen wrenches are provided that can turn these set screws to vary the force needed to turn the arm at these critical joints. Often these joints are tightened during manufacturing to prevent any loose movement during shipment, so if your monitor arm seems stiff when swivelling at the base, for example, you may need to loosen the set screw at that point. Remember to store the hardware tools in a convenient place in order to make future adjustments quickly when needed.
Set Monitor at Optimal Height, Angle, and Distance - Once your monitor arm has been installed and calibrated properly, you are ready to set it in the optimal position. In terms of ergonomic principles, the optimal position can vary, but there are definitely improper ways to set your monitor. Learn More About Optimizing Monitor Position.
