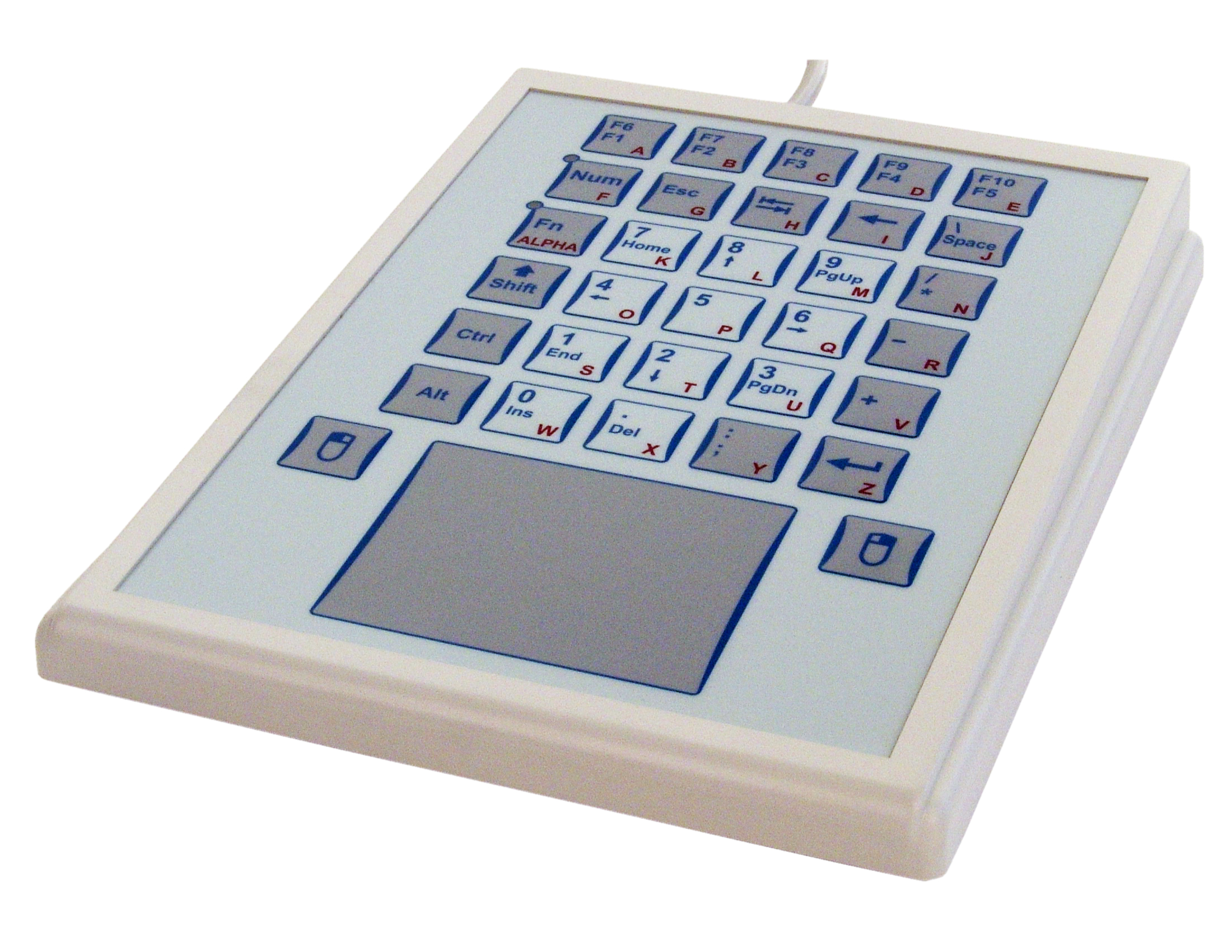

TKS Desktop Series Foil Covered Keyboard with Integrated Touchpad

The TKS Desktop Series Foil Covered Keyboard with Integrated Touchpad from Indukey provides full alpha and numeric functions as well as cursor control in a compact 5.9” W x 7.7” D footprint. It features rugged industrial design suited to deployment in demanding industrial settings where reliability is important. With an IP65 rating, it is dust and splash proof to ensure longevity. It utilizes mechanical switches that have just 0.3 mm of travel. With an operating force of 2.6 Newtons they provide crisp feedback and ensure that inadvertent activation does not occur. The polyester foil cover is printed in tri-colour legends with embossed raised relief zones for each key and is scratch, abrasion and chemical resistant. Key spacing is standard to ensure ease of use and eliminate risk of overlap activation, with each key requiring a distinct focused press. The 30-key orthogonal grid provides access to all F-Key functions, all Alpha keys, and full Numeric Keypad functions while the integrated touchpad offers cursor control with both left and right click keys. These features and the compact footprint make it ideal for any industrial setting where space is at a premium and where both Alpha and Numeric data needs to be entered.

• Full Keyboard/Numeric/Mouse Functions: All functions are integrated into just 30 keys, with the touchpad and left/right click keys directly below.
• Integrated Touchpad: This compact industrial keypad features an integrated touchpad with left and right buttons, placing cursor control directly below the 30-key keypad.

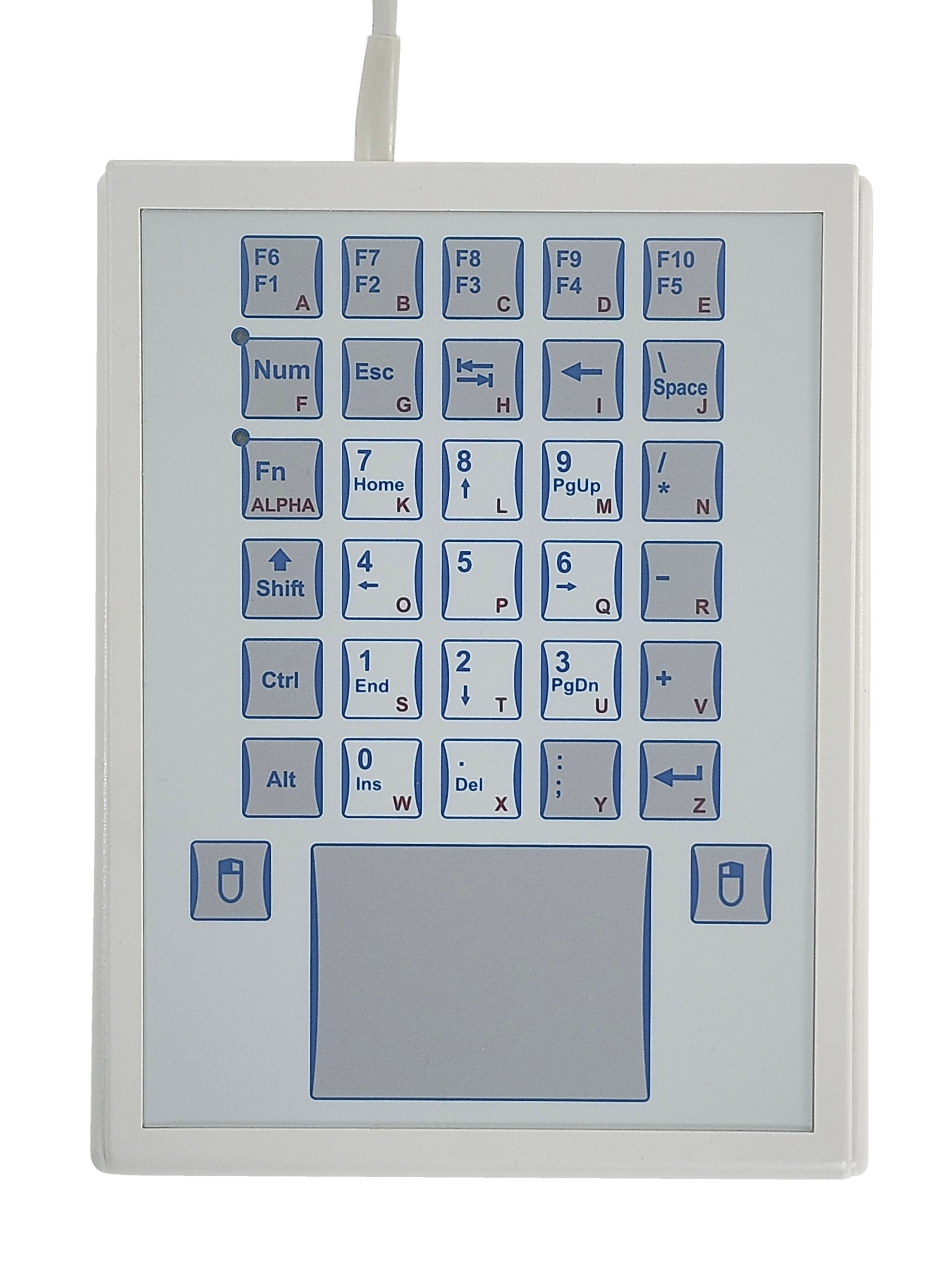

• Orthogonal Grid Layout: This feature ensures that all entry, including numeric is easily identified. Multi-colour legends clearly indicate how to activate secondary and third level functions.
• Raised Relief Key Zone: Each key features a raised zone to help ensure fingers centre on the key for accurate entry.

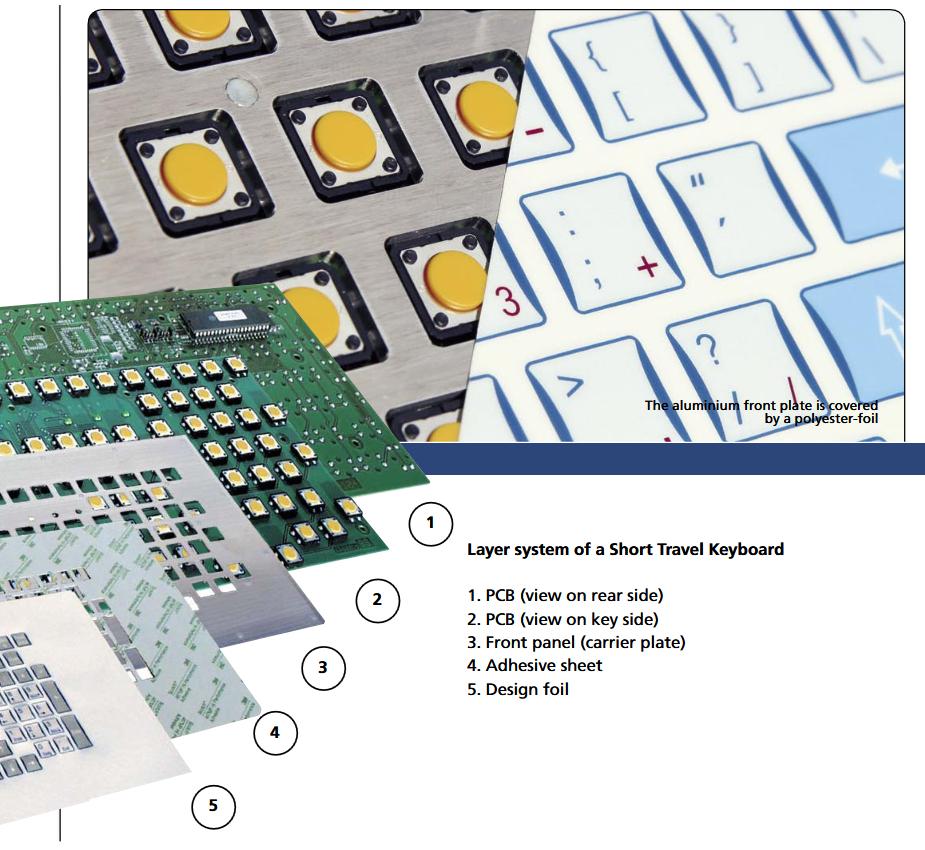

• High Quality Foil Membrane Keyboard with Mechanical Element Switching: The Indukey TKS Desktop Keypad combines membrane technology and spring snap-disc switching for increased reliability as well as superior response and tactile feedback.
• Crisp Activation: The switches require a distinct 2.6 Newtons of force for activation but have a travel of just 0.3 mm. This ensures that inadvertent activation does not occur, while also minimizing the distance of travel.
• Compact Design: At just 5.9” W x 7.7” D this keyboard offers a minimal footprint. It is 1.0” thick but in most industrial settings where this will be deployed the extra height will make it stand out as a control panel device.
• USB Connectivity: Standard USB-A connection ensures compatibility with most industrial equipment.

• Overall Dimensions:
  Width: 5.9" (15.1 cm)
  Length: 7.7" (19.5 cm)
  Height: 1.0" (2.58 cm)
• Touchpad Dimensions: 2.5” (6.4 cm) W x 1.875” (4.75 cm) H
• Weight: 18.7 oz (530 g)
• Number of Keys: 30
• Keyswitch Type: Foil membrane with incorporated spring snap-discs.
• Keyswitch Travel: 0.3mm
• Keyswitch Rating: 3 million actuations
• Interface: USB-A
• Operating Temperature Range: 0°C - +70°C
• Cable Length: 80" (2 m), Heavy Duty
• Compatibility: Plug and Play
• Materials: Heavy Duty Plastic Housing, Aluminum Baseplate, Plastic Foil Surface
• IP Level Protection: IP65
• Warranty: 1 Year Limited
• Package Contents: TKS Desktop Series Foil Covered Keyboard with Integrated Touchpad
