Eureka Single Monitor Arm

The Eureka Single Monitor Arm from Eureka Ergonomic is suited to monitors ranging from 5 to 20 lbs. Constructed of cast aluminum, this arm uses a gas spring mechanism for elevation support and offers 3 articulation points for smooth movement in all directions. 180° range of both pan and tilt ensure that the monitor can be adjusted to whatever position is ideal. It provides 13.5” of vertical range (6.75" - 20.25") and a maximum horizontal extension of 24.0” (from back of monitor mount to VESA plate). The lower arm is fixed at a 45° angle, ensuring that arm movement is not obstructed by other items on the desktop. A simple screw adjustment lets tension be adjusted to support monitors weighing up to 20 lbs. Cables are kept neatly stored in the underside of the arm. A Quick Connect Adapter simplifies mounting and swapping monitors when needed.

• Weight Capacity (maximum): 20 lbs (Adjustable Tension)

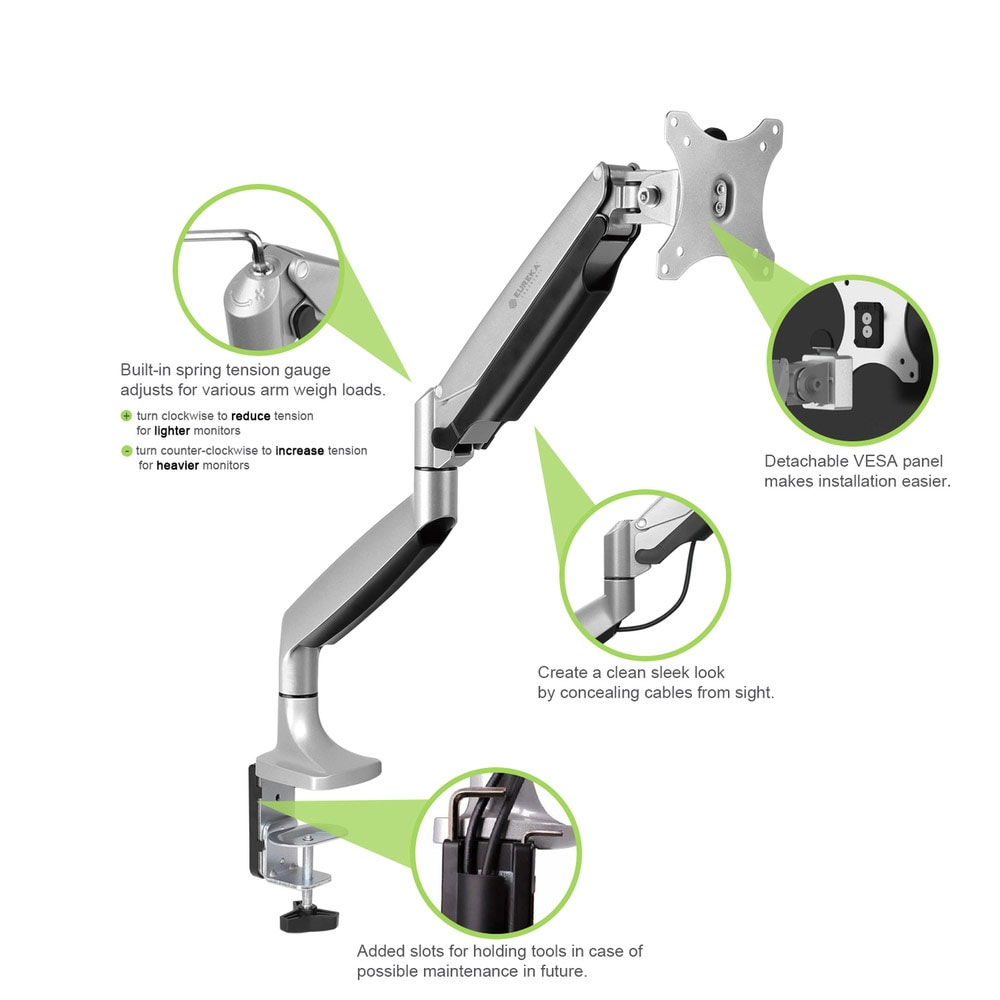

• Adjustable Tension: Simple tension adjustment to match monitor weight.

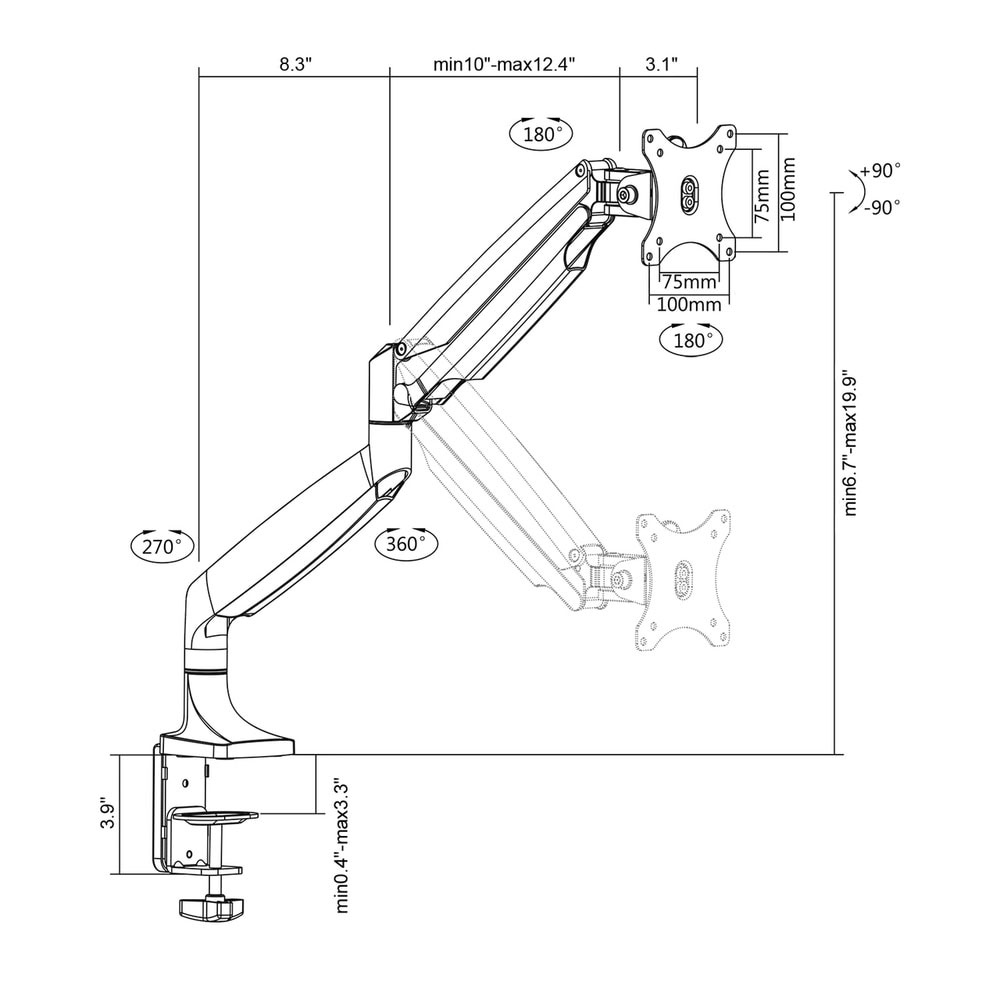

• Vertical Adjustment: 13.5" Overall Range

  Minimum Height for Centre of VESA Mounting Plate: 6.75"
  Maximum Height for Centre of VESA Mounting Plate: 20.25"
• Horizontal Reach (maximum): 24.0” (61 cm)(back of mount to VESA plate)
• Fold Back Size (minimum): 4.0” (10.2 cm)
• Mounting Options: Clamp - will accommodate surfaces from 0.4" - 3.3" "(1 - 8.4 cm) in thickness
• VESA Compatibility: 75 or 100 mm Quick Release Plate
• Monitor Rotation: 180° portrait to landscape
• Monitor Tilt: -90° to +90°
• Monitor Pan: 90° to both Left and Right
• Colour: Silver
• Warranty: NO 30 Day CSG, No Warranty
• Package Contents: Eureka Single Monitor Arm, Assembly Hardware, Instructions
