SafeType Vertical Keyboardby Safetype Inc.
| Additional Resources Usage Tips Accessories |
This is the only keyboard on the market which cannot be adjusted incorrectly, as it is fixed in the vertical position, which a Cornell University study has proven to eliminate high-stress postures which contribute to Repetitive Stress Injuries, such as Carpal Tunnel Syndrome.This revolutionary keyboard is the only one that can place the user in a completely orthopedically neutral position while doing data entry and cannot be adjusted improperly by the user. In fact, it makes so much sense that once you see how it works, you will probably understand more about keyboard ergonomics than most keyboard designers! Take a look right now, and you will see why NASA and the Technology Utilization Foundation chose this design as a promising future technology.
There is no recognized standard for a keyboard to be called ‘ergonomic’. Any keyboard manufacturer can call their keyboard ‘ergonomic’ without proving it beneficial in any way. But what makes a keyboard ‘orthopedically neutral’ so it doesn’t put you in potentially harmful positions?
It doesn’t just move the problem to another area of the body.
- Most 'ergonomic' keyboards work very much like hitting your thumb with a hammer to make you forget about a headache. Sure, you forget about the headache, but didn’t you just trade your old problem for some new ones?
Whenever you try out a new ‘ergonomic’ keyboard, pay particular attention to where your elbows are. Do you have weightless, floating arms? Most of us don’t. That means if the design causes your elbows to be spread out in order to straighten the wrist, you are going to have to support those upper arms with straining muscles, because they can no longer relax and hang effortlessly from the shoulder.
Many split and angled designs simply move the problem from your wrists to your neck and shoulders. Do you need more tension in your neck and shoulders?
Researchers have demonstrated that complete blockage of nerve signals can occur when pressure equal to 40mm of Mercury (measured just like atmospheric pressure) is applied for an 8-hour period. How much wrist extension does it take to create this much pressure? Only 20 degrees! More detailed information, including references to the specific studies, can be found on our “University Study” page.
This warrants repeating: Complete blockage of nerve signals (!) can occur from this simple transgression for an 8-hour period!
On any keyboard, wrist rests should only be used for resting, not while typing. But as we all know, many people do lots of things they shouldn’t do, and this is one habit that is extremely hard to break. The best solution is to use a keyboard that inherently doesn’t allow significant wrist extension by its’ design. (such as the SafeType)
- Most of us learned to type on a standard, flat keyboard. The keys are all in nice, neat rows. Unfortunately, that means we have to twist and turn our hands to line them up with the keys in order to use the keyboard. Learning to use this kind of keyboard is very much like learning to smoke. It was uncomfortable the first time you tried it, but you gradually became used to it over time (and it is still bad for you even once you get used to it).
If you hold your wrists straight, then move your hand so that the little finger moves out and (pretend) back toward the elbows. This is called ‘ulnar deviation’ (you don't have to remember the terms to understand what's happening).
Holding your wrist in any position other than straight causes what physiologists call ‘static muscle loading’, or what you and I might call ‘constant tension’. Side effects of this include increased muscular energy expenditure, reduced muscular waste removal, and eventual discomfort or injury. The animation at right shows how wrists must be deviated to use a conventional keyboard.
Eliminating deviation of the wrist is the inspiration for lots of attempts to design ‘ergonomic’ keyboards. As we saw in our previous illustration (click here if you didn’t see it yet) this can result in simply transferring the problem to another area. There is only one ‘ergonomic’ design that is also ‘orthopedically neutral’ and eliminates the ulnar deviation by design.
- The third major posture to avoid is called 'pronation'. Pronating the hand simply means turning it so the palm faces downward. The bones in the forearm are actually straight and essentially parallel when the hands are slightly 'supine', with palms facing upward.
Observe how 'pronating' the hands (turning the palm downward) causes the bones in the forearm to cross and 'scissor' the soft tissues in the arm. It forces blood vessels and nerves between two hard objects (your bones) and then puts a crushing pressure on them! Do you see how this could be harmful over long periods of time?
Now, as you sit down at a conventional flat keyboard, what movements do you have to perform to put your fingers on the right keys?
Pronation, Deviation and Extension... all at the same time!
- The only ‘ergonomic’ keyboards that will help prevent injury are those that cannot be adjusted improperly, and which eliminate significant amounts of extension, deviation, and pronation of the wrist. Anything else is a waste of your money.
- How does the SafeType work?: Simply use a hand-shake position with palms facing each other, and with your index fingers on the familiar ‘home’ keys you begin to type, without thinking about each letter -- just like you do now with other keyboards. It is familiar in layout so there is no re-training required for a touch typist. However, the adjustable mirrors are there so you can see keys on the less-familiar top rows if necessary, and the lettering on the keys is reversed so you can read it properly in the mirrors.
- How mirrors work: Raise and lower the mirrors by pushing only on the hinge on the back of the keyboard. Get as close to the slot as possible. Push up from the bottom to raise the mirrors. To lower them, push down from the top. The animation below shows the keyboard from the back.
The mirrors slide up from their stowed position, and it is important that you push up in the correct place to avoid damage.
The mirrors are hinged on the back side of the keyboard, so that once they slide up they can be moved around to the outside of the keyboard and positioned to reflect the keys to the user.
Many users do not use the mirrors at all. They are included primarily to help with the ‘Function’ and ‘Numeric’ rows of keys because many typists are less familiar with those keys than the letter keys that they use constantly. As with any keyboard, most users will be more efficient as a touch typist if they do not use visual references. Do not use the mirrors until you understand how they work and where to lift them. Pulling on the mirrors in the wrong place could cause them to break.
|Images (Click on any thumbnail to view larger image)|
SafeType Vertical Keyboard - black model

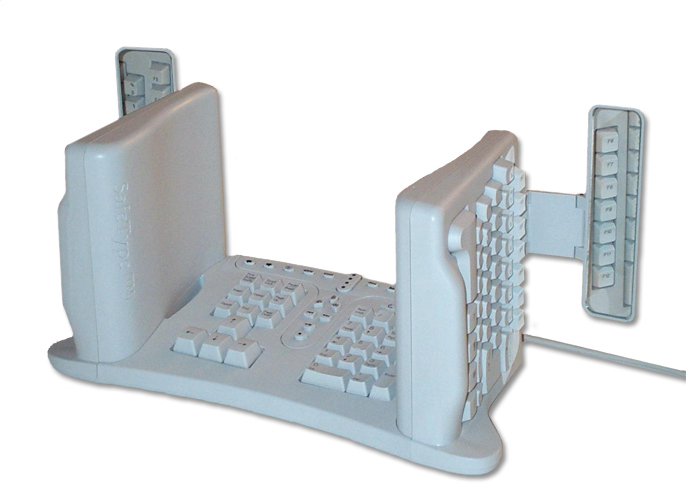

SafeType Vertical Keyboard - white model
- Width: 15.5" (39.4 cm)
- Depth (front-to-back): 7.5" (19.0 cm)
- Height: 8.125" (20.6 cm)
- Distance between Left and Right Keycap tops: 11.5" (29.2 cm) to 12.0" (30.5 cm)
- Mirror adjustment: 2" (5.1 cm)
- Mirror size: 7" x 2" (17.8 cm x 5.1 cm)
- Keyswitch rating: 10 million actuations
- Numeric keypad: In center portion of
PC (all OSs)
Mac (all OSs) (basic functionality, internet hot keys will not function)
- Interface: USB
- Warranty: 1 year. Manufacturer
- Mirror adjustment: 2" (5.1 cm)
- Note: Do not use the installation
CD with a Mac or with
|For pricing, availability or to order this product, visit our online store.|
|V902|| SafeType Vertical Keyboard, black SPECIAL ORDER, NO 30 DAY CSG|
|V801|| SafeType Vertical Keyboard,
|V801-Hinge|| SafeType Vertical Keyboard,
white, hinge is looser than normal
Clearance, no 30 day CSG|
