Allegretto Height Adjustable Table Baseby KV Waterloo
| Ergonomic Benefits Features Additional Resources Usage Tips Accessories |
The Allegretto Height Adjustable Table Base from KV Waterloo is an extra-smooth and quiet electric variable width table base capable of supporting table tops from 48" to 90" in width and 24" to 30" in depth. It is available in 2- or 3-leg configurations. Easy to assemble in less than 30 minutes, the Allegretto has a height adjustable range from 23.9" - 49.5" in three telescopic stages with a height adjustment speed of 1.6 inches/sec. In addition, a six-button programmable switch with 4 presets allows the user to save height settings according to individual needs. The base can also support weights up to 264 lbs and has built-in Anti-Collision protection in the event that the table collides with a fixed object while moving up or down, in which case it will stop and reverse direction.
The stylish design adds a modern clean look to any office environment, largely due to the absence of a lower crossbar. This base is also UL, CSA and CE certified with a 5 year mechanical and 2 year electrical warranty.
NOTE: Select Conset or iMovR table tops may be used with this base, or you may provide your own custom-made or pre-existing table top. Call for details.
|Images (Click on any thumbnail to view larger image)|

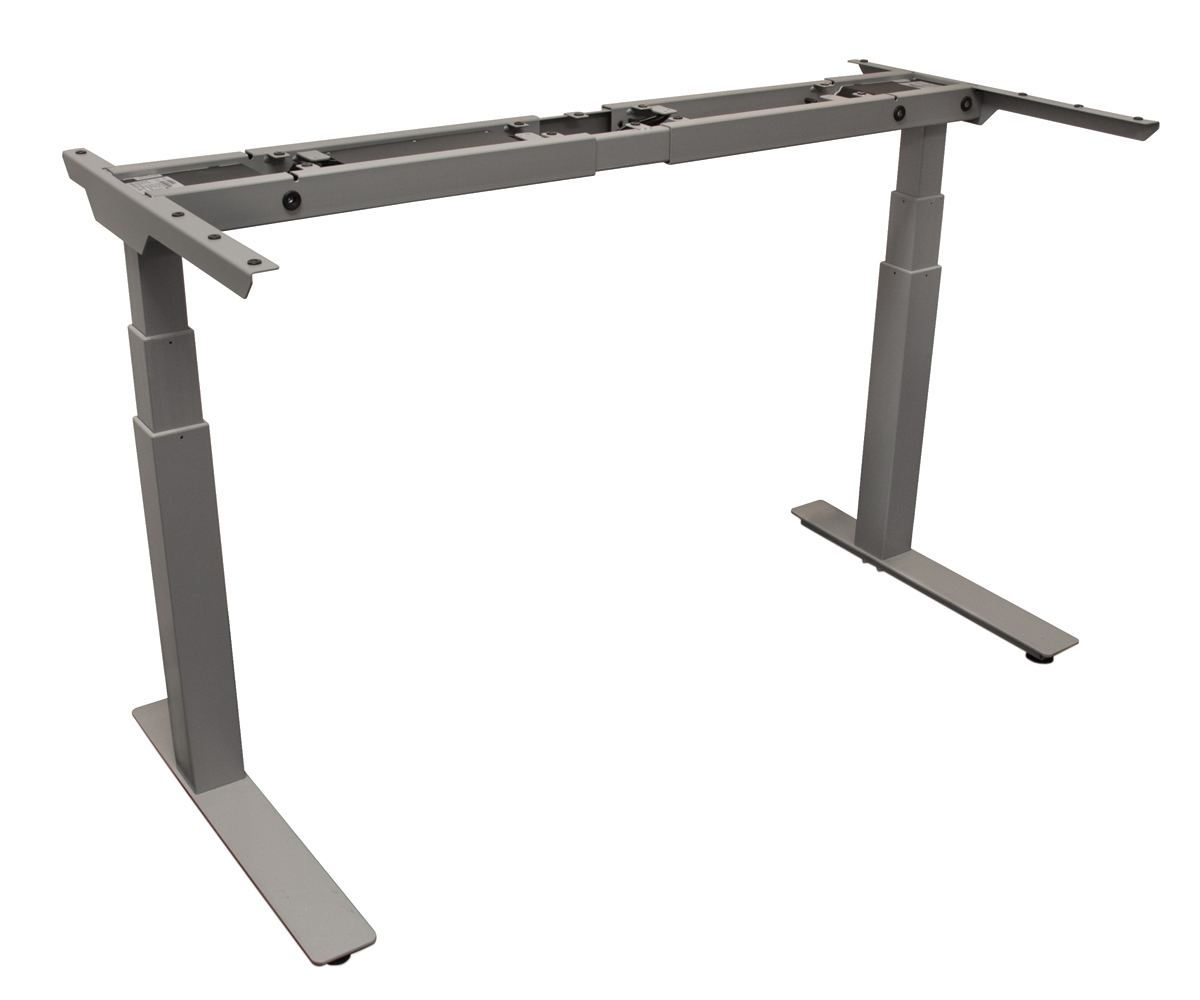

Allegretto Height Adjustable 2-Leg Table Base

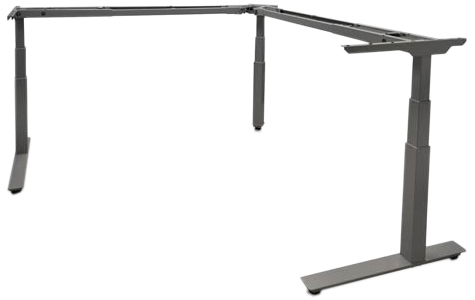

Allegretto Height Adjustable 3-Leg Table Base

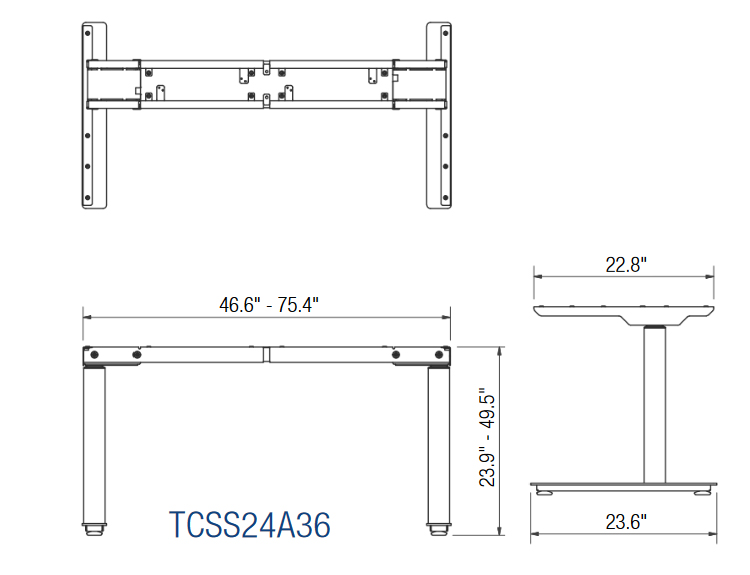

Allegretto Height Adjustable 2-Leg Table Base with 24" Feet - Specs

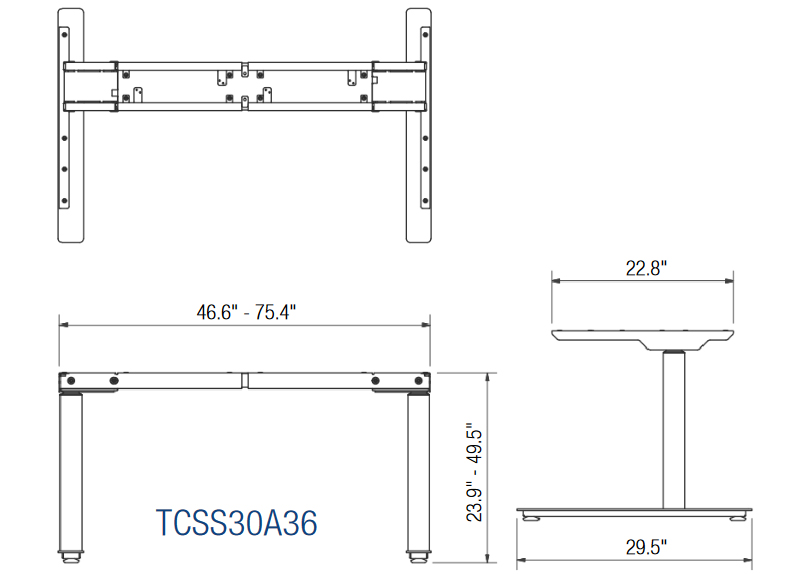

Allegretto Height Adjustable 2-Leg Table Base with 30" Feet - Specs

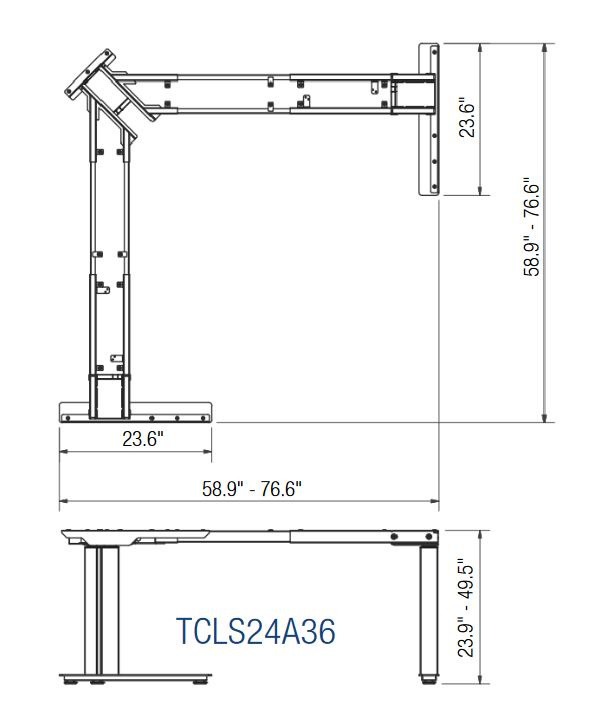

Allegretto Height Adjustable 3-Leg Table Base with 24" Feet - Specs

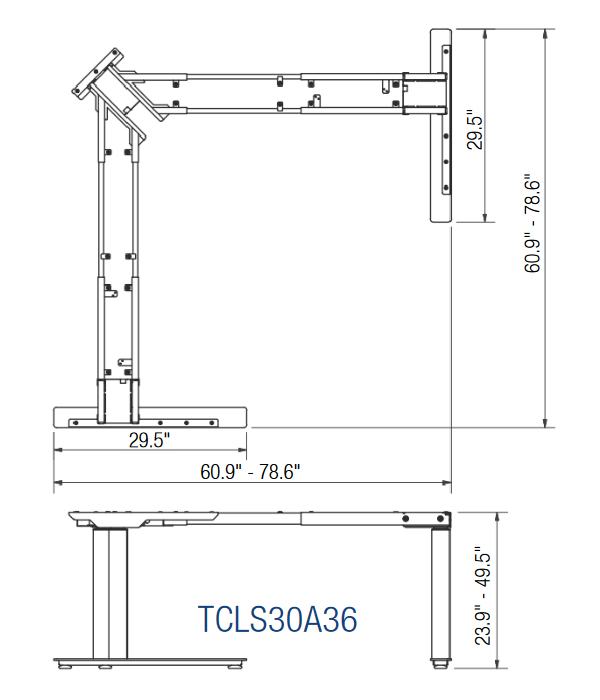

Allegretto Height Adjustable 3-Leg Table Base with 30" Feet - Specs
- Height Adjustment Range: 23.9" - 49.5" (60.7 - 125.7 cm) - without top
- Rate of Height Adjustment: 1.6" (41 mm) / second
- Width (adjustable):
- TCSS24A36: 46.6" - 75.4" (118.4 cm - 191.5 cm)
- TCSS30A36: 46.6" - 75.4" (118.4 cm - 191.5 cm)
- TCSL24A36: 58.9" - 75.4" (118.4 cm - 194.6 cm) for both lengths
- Depth (Feet):
- TCSS24A36: 23.6" (60 cm)
- TCSS30A36: 29.5" (75 cm)
- TCSL24A36: 23.6" (60 cm)
- Depth (Table Supports): 22.8" (57.9 cm)
- Width (Feet): 3.125"
- Width (Top of Legs): 1.25" (3.2 cm)
- Maximum Load: 264 lbs (120 kg)
- Programmability: Four-memory/six-button programmable height adjustment mechanism
- Standby Power Consumption: 0.06W
- Certifications: Yes, UL, CSA and CE Certifications
- Top Crossbeam Removable?: NO
- Anti-Collision Protection: Yes (stops and reverses direction)
- Warranty: 5 year mechanical and 2 year electrical warranty
- Package Contents: Allegretto Height Adjustable Table Base, Assembly Hardware, Assembly Instructions.
- Estimated Assembly Time: 20-30 minutes (1 person). Mounting a top to the frame should take no more than 5 - 10 minutes - a second person is recommended.
- Tool Required: Allen Wrenches (included). Installation of top and control panel will require a Phillips screwdriver.
|For pricing, availability or to order this product, visit our online store.|
|TCSS24A36|| KV Waterloo Allegretto Height Adjustable 2-Leg Table Base, Foot Size 24", Silver (Grey)|
|TCSS30A36|| KV Waterloo Allegretto Height Adjustable 2-Leg Table Base, Foot Size 30", Silver (Grey)|
|TCLS24A36|| KV Waterloo Allegretto Height Adjustable 3-Leg Table Base, Foot Size 24", Silver (Grey)|
