ANDROMEDA Electric Workstation Base 2-Legby ErgoVerse
The ANDROMEDA Electric Workstation Base (2-Leg) from ErgoVerse gives sit-stand users a host of premium features at an affordable cost. The ANDROMEDA is capable of lifting up to 220 pounds and has an adjustable range from 24" - 50". The dual motors feature a "soft start" which eliminates abrupt starts and stops, resulting in exceptionally smooth non-jarring movement. The programmable 6-button controller offers 4 preset height options with a unique "touch-and-go" function that permits users to pursue other tasks once they have activated the new height setting.
The ANDROMEDA 2-Leg base is width adjustable from 40" - 68.5", making it suitable for mounting a wide range of desk widths. In addition, the ANDROMEDA Electric Workstation Base will comfortably accommodate tops from 20" - 30" in depth.
The ANDROMEDA features a sturdy 2-Leg "T-base" design that offers high levels of stability by centering the lifting legs. The dual synchronized linear actuator motors are capable of lifting at 1.5" per second reducing the time required to make adjustments. The convenient "touch-and-go" feature that enables a user to make their height selection and then move on to other tasks while the workstation self-adjusts further reduces lost time. Anti-Collision Protection is provided via "stop and reverse" functionality which stops and backs the desk away from fixed obstructions.
The range of elevation adjustment, features, and universal application make the ErgoVerse ANDROMEDA Electric Workstation Base (2-Leg) a good selection for most sit-stand applications. Assembly is simple and can generally be accomplished in about 45 minutes.
NOTE: The adjustable width feature on the ANDROMEDA makes it capable of accommodating a wide range table top widths and depths. ErgoVerse offers the premium quality line of DIADEM Waterfall Table Tops as an ideal complement for the ANDROMEDA. The DIADEM tops feature 3-D lamination which eliminates any sharp edges and are available in 4 rich wood grains and 2 solid colours. Pre-existing or custom-made table tops can also be easily mounted on the ANDROMEDA base.
Users who are interested in, or already have a corner or L-shaped desk may be interested in the ANDROMEDA Electric Workstation Base (3-Leg) which offers the same range of features as the 2-Leg model with the capability of lifting a corner-style desk.
Reduces the Risks Associated with Extended Sitting
- Studies have shown that sitting (and even standing) for prolonged periods of time is a risk factor for health. For those who work at stationary workstations, a desk that gives the user the option to sit and stand throughout the day will help break up those prolonged periods of unhealthy stationary work. The ANDROMEDA Electric Workstation Base allows the user to quickly adjust the height of the entire worksurface to accommodate sitting, leaning and standing positions whenever desired.
Reduces the Risks Associated with Overreaching
- ErgoVerse ANDROMEDA Electric Workstation Bases raise and lower the entire worksurface. This means that all required materials and devices can easily be kept within the ideal Comfort Zone. Smaller retrofit style units generally provide a much smaller work area and can require regular reaching outside the Comfort Zone. Learn More About the Comfort Zone.
Accommodates Nearly All Users
- The range of adjustment on the ANDROMEDA is sufficient to accommodate sitting, leaning and standing heights for users ranging from 5' 5" up to 6' 6".
- The ability to vary posture between traditional seated, leaning and standing positions increases circulation throughout the body and reduces fatigue in the feet and legs (from standing for extended periods), and lower back (from sitting for extended periods).
Facilitates a Complete Ergonomic Workstation
- Full travel sit-stand height adjustable bases such as the ANDROMEDA are the ideal foundation for a complete ergonomic workstation. All other sit-stand workstation retrofit solutions sacrifice something. For some it is the limited dimensions of the accessible workspace, for others it is the limited range of height adjustment (above the desk only), and for others it is stability. For a surprising number of these it can be 2 or all 3 of these that are lost. The ability to raise and lower the entire work surface to the appropriate height for keyboard positioning means that a full height-adjustable base can meet the keyboarding needs of virtually any user, regardless of their stature. An appropriate monitor arm with a sufficient range can provide the necessary additional elevation for monitors when in a standing position. The result will be a workstation capable of meeting the needs of virtually any user, regardless of their workstation requirements when sitting, standing or leaning. The wide range of features on the ErgoVerse ANDROMEDA Electric Workstation Bases and their affordable pricing make them especially suitable for this purpose.
- Programmable 6-Button Control: The convenient control panel offers 4 One-Touch preset height options as well as manual Up/Down buttons for fine tuning height preferences. A clear digital readout displays current height setting and programming details. Once programmed the frame can be adjusted to any of the 4 presets with just a single touch, letting the desk adjust independently as the user performs other tasks.
Note: Programmable presets should always be fine tuned to account for the time of day (i.e. by afternoon users are no longer standing as upright or tall as in the morning), height of shoes, etc.
- Clean Styling: ANDROMEDA bases offer simplicity of design. The open design and clean straight lines mean the bases will fit in any environment. ANDROMEDA sit-stand bases are available in either Black or Silver finish.
- Width Adjustable: The ANDROMEDA Electric Workstation Base can adjust from 40" up 68.5" in width and can accommodate tops from 41" to 96" in width. This means it can be used to mount virtually any size of standard desk top.
- Accepts a Variety of Desk Top Sizes: The ErgoVerse ANDROMEDA Electric Workstation Bases are equipped with 23.75" deep feet for stability. The mounting brackets for the top are 19.75" deep which means that this frame can accept tops as shallow as 20". Maximum recommended top depth for this model would be 36".
- Centered Legs for Stability: The electric legs support the top from a central position, meaning that tops can easily be centered on the frame for optimum stability.
- Anti-Collision Safety Feature: If the table top meets a fixed obstacle while moving in either an upward or downward direction, the desk frame will stop and reverse slightly to eliminate any pressure against the obstacle.
- "Soft Start" Feature: ANDROMEDA Electric Workstation Bases have a soft-start feature which eliminates the potential for abrupt starts or stops.
- Triple Nesting Columns: The nested telescoping legs provide a full 26" of height adjustment with minimal effect on stability even when at maximum height.
- Adjustable Levelling Feet: The base includes adjustable feet which can be adjusted 0.4" (1 cm) to ensure the base is level and to compensate for floor unevenness.
- Overload and Overheat Protection: ErgoVerse ANDROMEDA Electric Workstation Bases include both overload and overheat protection circuits designed to protect the leg motors from unintentional overuse or overloading.
- Environmentally Conscious: Standby power consumption is just 0.1 watts which translates to under 0.8 Kw consumption per year based on 24 hour standby. With actual consumption of 200 W while being adjusted - allowing for 4 full height adjustments per hour, 10 hours a day, 5 days a week and 52 weeks of the year - the total energy consumption for a year would come to only 11 kWh. Users may well make shorter and/or fewer adjustments which will reduce the actual energy consumption accordingly.
- Recyclable Packaging: ANDROMEDA Electric Workstation Bases are shipped in sturdy but fully recyclable packing materials.
|Images (Click on any thumbnail to view larger image)|

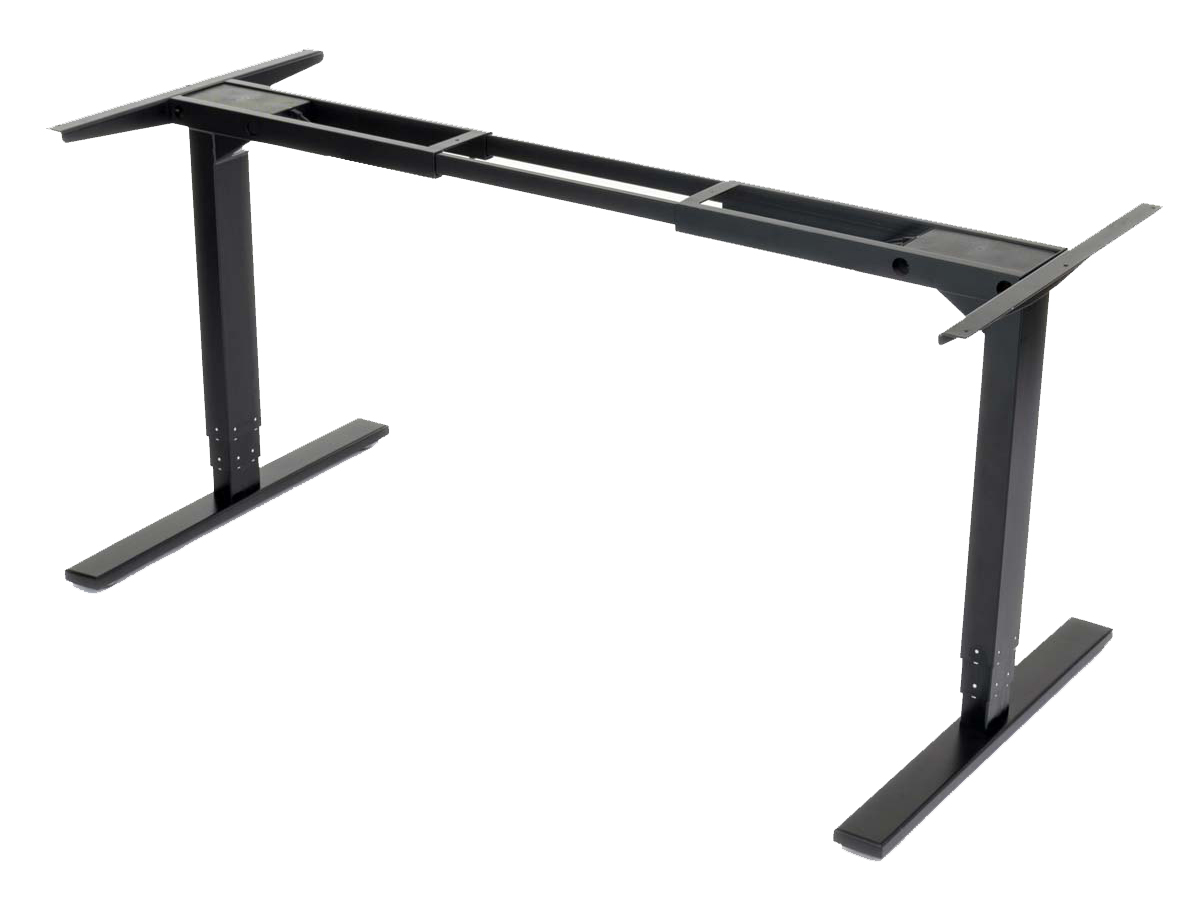

ANDROMEDA Electric Workstation Base 2-Leg - Black

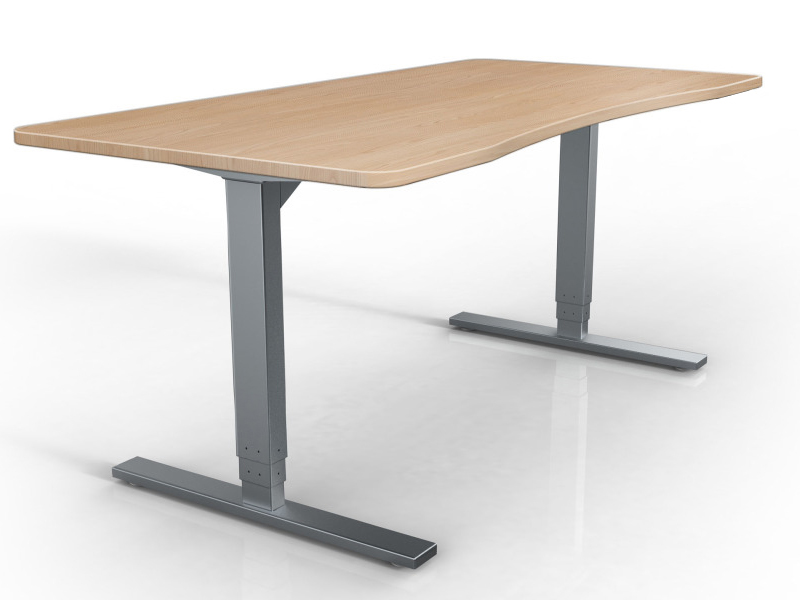

ANDROMEDA Electric Workstation Base 2-Leg - Silver

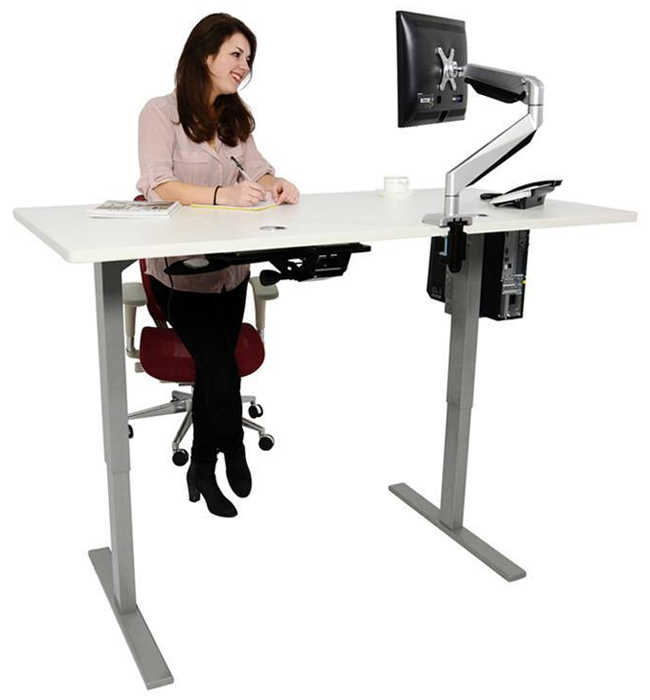

ANDROMEDA Electric Workstation Base for Standing

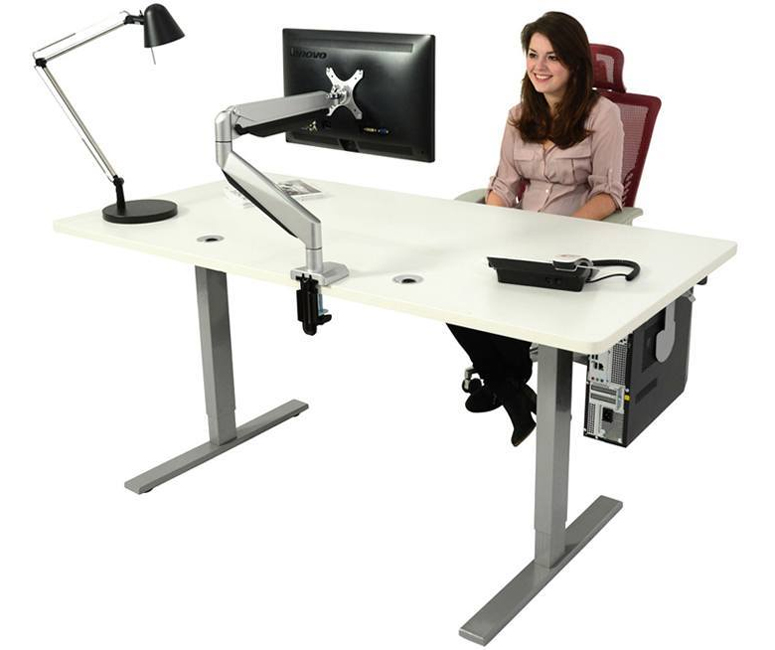

ANDROMEDA Electric Workstation Base for Sitting

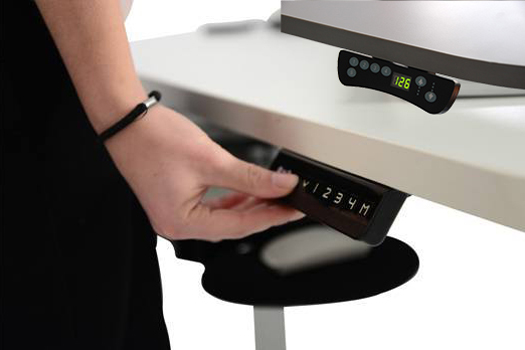

ANDROMEDA Electric Workstation Bases are Fully Programmable

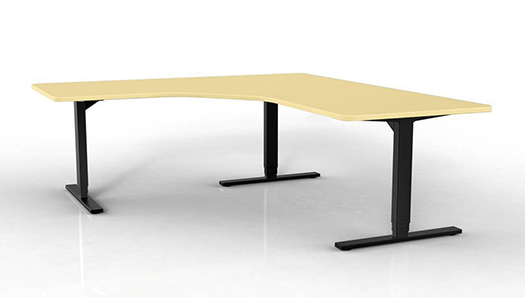

ANDROMEDA Electric Workstation Base is Also Available in a 3-Leg Model
- ANDROMEDA Electric Workstation Base (2-Leg) User Guide: PDF
- Height Adjustment Range: 24" - 50" (61 - 127 cm) - without top
- Rate of Height Adjustment: 1.5" (38 mm) / second
- Width (Adjustable): 40" - 68.5 (101.6 cm - 174 cm)
- Depth (Feet): 23.75" (60.3 cm)
- Depth (Top Mounting Brackets): 19.75" (50.2 cm)
- Width (Feet): 2.75" (7 cm)
- Maximum Load: 220 lbs (100 kg)
- Programmability: Four position memory/six-button programmable controller with LED display
- Sound Level Rating: 50 dB
- Electrical Requirements:
- Input Voltage 100-240V AC
- Output Voltage 24V DC
- Standby Power Consumption: 0.1 W
- Operating Power Consumption: 200 W
- Duty Cycle: 2 minutes ON, 18 minutes OFF (internal overheat and overload protection)
Note: 1 complete cycle (UP and Down the full 26" range) takes only 35 seconds.
- Top Crossbeam Removable?: No
- Anti-Collision Protection: Yes (stops and reverses direction)
- Warranty: 2 Years (Motors and Electrical), 4 Years (Frame)
- Package Contents: ErgoVerse 2-Leg Height Adjustable Base, Assembly Hardware, Assembly Instructions.
- Estimated Assembly Time: 45 minutes (1 person). Mounting a top to the frame should take no more than 5 - 10 minutes - a second person is recommended.
- Tools Required: Allen Wrenches (included). Installation of top and control panel will require a Phillips screwdriver.
Note: Always ensure that screws used for mounting a top are of appropriate length. This is to ensure that screws do not protrude through the surface of the desk. It is best to pre-drill any holes using a drill bit that is the same diameter as the shank of the screw to be used. This reduces the risk of damaging the surface of the top.
- When assembling your frame and installing the top check to ensure that the length of screws being used to secure the top are of appropriate length. You don't want to find that your new desk has screws poking through the surface.
- Don't stand for too long. Certainly in the initial period, limit your standing to 15 to 20 minutes per session unless you are already used to extended standing
- Switch! Set a notification on your computer or phone to remind you to switch between sitting and standing on a regular basis. Doing so will help you develop the habit of switching throughout the day.
- Don't just stand there! Try to consciously use your leg and core muscles as you stand. Allow your body to shift and especially make a point of moving and flexing your leg muscles. By doing so, you encourage healthy blood flow in the lower legs. This can help you avoid the problems that can arise when people stand for a long time without moving.
- Be sure to consider your height as you position your desk. Be aware that the height of your heels and even the time of day will affect your standing height. Over the course of the day most people will lose about a half-inch in height, possibly more. Ensure that you adjust the desk accordingly to achieve a neutral posture.
- Try to avoid high heels if you plan to stand while you work. These will tire your feet and increase the risk of damage to the structures of your feet and lower leg.
- Consider an anti-fatigue mat. Many users find that standing is actually tiring, especially so with the hard surfaced floors on which most people work. The shortnap carpet that is common in many office or retail environments does little to mitigate the rigidity of the concrete it usually covers. A good mat can leave you much less fatigued at the end of the day as it encourages flexing of the feet and lower leg muscles. If you wish to regularly switch between standing and sitting you will want a mat which can be easily moved when transitioning between the two positions. For available options, visit our Anti-Fatigue Mats category.
- Try leaning. If you discover that you like working in an upright position but find that extended standing fatigues your body you may wish to consider one of the many seating options designed for working at elevated desks. These reduce the load on your feet by letting you transfer the majority of your weight to the seat. The "almost upright" stance provides most of the mobility and range of movement that standing offers, while reducing the risk of fatigue. The leaning position also helps you transition effortlessly to a standing position. For available options, visit our "Lean Into" Seating category.
