| Ergonomic Benefits Features Usage Tips |
The WorkFit-S Dual Sit-Stand Workstation clamps on to the front edge of the desk and uses the Ergotron's Constant Force spring lift mechanism to assist in moving the keyboard tray and monitors through the range of motion. The vertical adjustment range is 18", and the monitor mounts (in tandem) can independently vertically adjust an additional 5". The desk edge must be between .47" and 2.4" thick for the clamp to function, and the monitor must be between 6 and 14 lbs for each monitor for the LCD pivot to function correctly. In addition, the maximum width of each monitor cannot exceed 21.25" (for the LCDs to be able to mount on the Workfit). The keyboard tray is 16.5" wide x 9.3" deep, and the slide-out mousing surface is 7.5" wide x 7.9" deep, and the maximum weight on the keyboard surface cannot exceed 3 lbs.
Note: It is recommended to strengthen the mounting point to prevent damage to the desktop.
|Images (Click on any thumbnail to view larger image)|

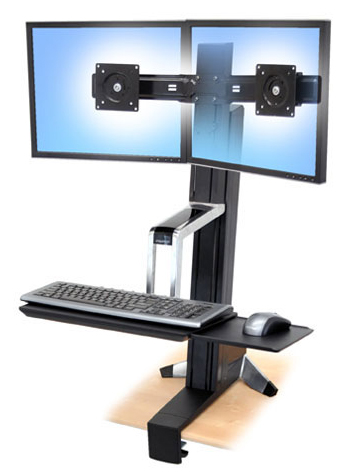

Ergotron Workfit S Dual Sit-Stand Workstation

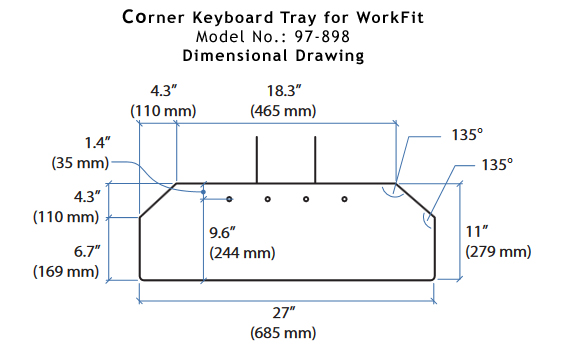

Workfit-S Deep Keyboard Tray Accessory for Corners
- Dimensions and Drawings: PDF
- Warranty: Manufacturer direct only
|For pricing, availability or to order this product, visit our online store.|
|33-341-200|| WorkFit-S, Dual Sit-Stand Workstation|
|97-617|| Ergotron Workfit Conversion Kit: Dual to LCD/Laptop|
|97-897|| Workfit-S Deep Keyboard Tray Accessory (27"W x 11"D x 0.25"H)|
|97-898|| Workfit-S Deep Keyboard Tray Accessory for Corners, 27" W x 11" D x 0.25" H|
