The Fixed Leg Set from Conset offers a solution for Sit-Stand workstation layouts where additional "non-elevating" work space is desired. The leg sets (available in Black or Silver) can be easily attached to any top capable of accepting screws. These legs can be used to provide a "sitting height" space for conferring with clients or co-workers without the necessity of lowering the entire worksurface. It also offers a more cost-effective solution where only a portion of a workstation (especially corner workstations) needs to be height adjustable. In these cases, a single or two-leg height adjustable frame can be used to elevate the worksurface while the secondary worksurface(s) can be supported by fixed legs. These legs can also be employed to replace support and restore stability which can be lost when detaching a portion of a complete desk for conversion to a height adjustable desk.
The 27.25" metal legs are equipped with cast metal mounting plates for secure attachment to any desk surface which can accept standard screws and feature a height adjustable foot which offers an additional 0.75" of adjustment range. When calculating the finished height of a mounted worksurface remember to add the thickness of the work surface or table top that is to be added.
|Images (Click on any thumbnail to view larger image)|

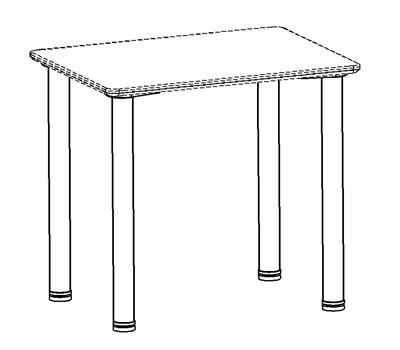

Conset Fixed Leg Set
- Height: 27.25" - 28" (69.2 - 71.1 cm)
- Diameter: 2.375" (6 cm)
- Height Adjustment Range: 0.75" (1.9 cm)
- Colours: Silver or Black
- Package Contents: 4 Legs and Mounting Plates, Installation Hardware
- Assembly Time: Legs can be assembled to the mounting plates in under a minute. Mounting Plates are equipped with 5 3/4" Phillips head screws for installation on tops a minimum of 7/8" thick. Thinner tops could be secured employing user-supplied hardware.
- Tools Required: Phillips head screwdriver, Drill is recommended for pre-drilling mounting holes.
|For pricing, availability or to order this product, visit our online store.|
|61-690-BK-1|| Conset Fixed Leg Set (4) with Mounting Plates, Black|
|61-690-SV-1|| Conset Fixed Leg Set (4) with Mounting Plates, Silver|
